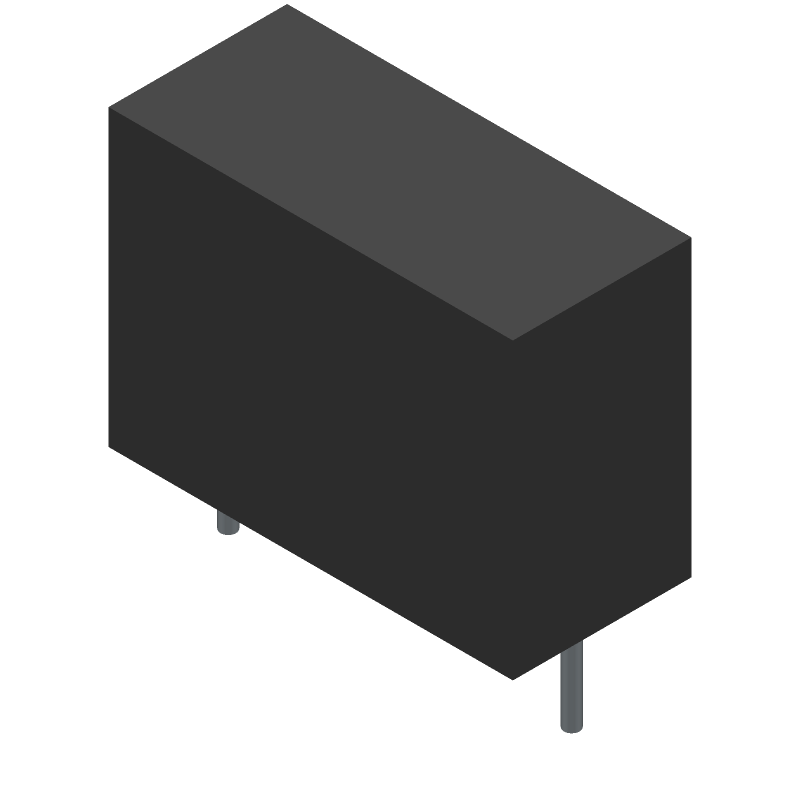

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECWHA3C223J by Panasonic Electronic Components
Results Overview of ECWHA3C223J by Panasonic Electronic Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ECWHA3C223J Information
ECWHA3C223J by Panasonic Electronic Components is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for ECWHA3C223J
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
V72:2272_11314676
|
Arrow Electronics | Cap Film 0.022uF 1600V PP 5%( 20.6 X 9.1 X 15mm) Radial 17.5mm 105°C Ammo RoHS: Compliant Min Qty: 363 Package Multiple: 1 Lead time: 20 Weeks Date Code: 2139 Container: Cut Strips | Americas - 550 |
|
$0.2706 / $0.2752 | Buy Now |
|
DISTI #
61742562
|
Verical | Cap Film 0.022uF 1600V PP 5%( 20.6 X 9.1 X 15mm) Radial 17.5mm 105°C Ammo RoHS: Compliant Min Qty: 363 Package Multiple: 1 Date Code: 2139 | Americas - 550 |
|
$0.2752 | Buy Now |
|
DISTI #
51668490
|
Verical | Cap Film 0.022uF 1600V PP 5%( 20.6 X 9.1 X 15mm) Radial 17.5mm 105°C Ammo RoHS: Compliant Min Qty: 150 Package Multiple: 50 Date Code: 1311 | Americas - 500 |
|
$0.3656 / $0.5022 | Buy Now |
|
DISTI #
ECWHA3C223J
|
TME | Capacitor: polypropylene, ECWH, 0.022uF, 20.6x9.1x15mm, THT, ±5% Min Qty: 1600 | 0 |
|
$0.2850 | RFQ |
|
|
Cytech Systems Limited | 1000 |
|
RFQ |
Part Details for ECWHA3C223J
ECWHA3C223J CAD Models
ECWHA3C223J Part Data Attributes
|
|
ECWHA3C223J
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ECWHA3C223J
Panasonic Electronic Components
Film Capacitor, Polypropylene, 1600V, 5% +Tol, 5% -Tol, 0.022uF, Through Hole Mount, 8136, RADIAL LEADED
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Factory Lead Time | 43 Weeks, 1 Day | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 0.022 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYPROPYLENE | |
| Height | 15 mm | |
| JESD-609 Code | e3 | |
| Length | 20.6 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 5% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 5% | |
| Rated (DC) Voltage (URdc) | 1600 V | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 17.5 mm | |
| Terminal Shape | WIRE | |
| Width | 9.1 mm |
