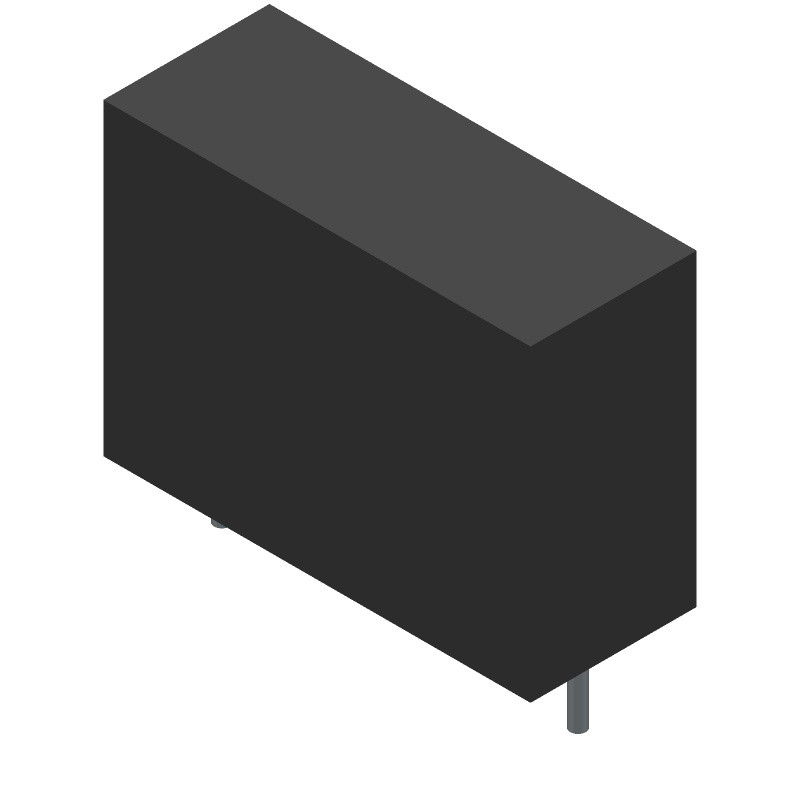

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECWFG2J105QA by Panasonic Electronic Components
Results Overview of ECWFG2J105QA by Panasonic Electronic Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Healthcare
Energy and Power Systems
Medical Imaging
Renewable Energy
ECWFG2J105QA Information
ECWFG2J105QA by Panasonic Electronic Components is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for ECWFG2J105QA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78AC6869
|
Newark | Cap, 1Uf, 630V, Film, Radial, Dielectric Type:Metallized Pp, Capacitor Case/Package:Radial Box - 2 Pin, Capacitance:1Μf, Capacitance Tolerance:± 10%, Typical Applications:High Frequency, Capacitor Mounting:Through Hole, Esr:- Rohs Compliant: Yes |Panasonic ECWFG2J105QA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 265 |
|
$0.5740 / $0.6790 | Buy Now |
|
|
Onlinecomponents.com | Film Capacitor, Polypropylene, 630V, 10% +Tol, 10% -Tol, 1Uf, Through Hole Mount RoHS: Compliant |
314 Partner Stock |
|
$0.6000 / $0.7100 | Buy Now |
|
DISTI #
ECWFG2J105QA
|
Avnet Abacus | Film Capacitor 1 uF 141 V 630 V 10 Metallized PP Radial Box 2 Pin (Alt: ECWFG2J105QA) RoHS: Compliant Min Qty: 350 Package Multiple: 350 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | Film Capacitor, Polypropylene, 630V, 10% +Tol, 10% -Tol, 1Uf, Through Hole Mount RoHS: Compliant |
314 Partner Stock |
|
$0.6000 / $0.7100 | Buy Now |
|
|
Vyrian | Capacitors | 290 |
|
RFQ |
Part Details for ECWFG2J105QA
ECWFG2J105QA CAD Models
ECWFG2J105QA Part Data Attributes
|
|
ECWFG2J105QA
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ECWFG2J105QA
Panasonic Electronic Components
Film Capacitor,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 1 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYPROPYLENE | |
| Height | 19 mm | |
| Length | 27 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 110 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Style | Radial | |
| Packing Method | TRAY | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 630 V | |
| Reference Standard | AEC-Q200 | |
| Surface Mount | NO | |
| Terminal Pitch | 22.5 mm | |
| Terminal Shape | WIRE | |
| Width | 10.5 mm |
