ECS-TXO-3225MV-200-TR Information
ECS-TXO-3225MV-200-TR by ECS International Inc is a TCXO.
TCXO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for ECS-TXO-3225MV-200-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79AK9036
|
Newark | Tcxo, 20Mhz, Hcmos, Smd, 3.2Mm X 2.5Mm Rohs Compliant: Yes |Ecs Inc International ECS-TXO-3225MV-200-TR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 343 |
|
$1.4900 / $1.9600 | Buy Now |
|
DISTI #
50-ECS-TXO-3225MV-200-CT-ND
|
DigiKey | XTAL OSC TCXO 20MHZ HCMOS Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3827 In Stock |
|
$1.1900 / $2.0400 | Buy Now |
|
DISTI #
ECS-TXO-3225MV-200-TR
|
Avnet Americas | Temperature Compensated Crystal Oscillator 20MHz 2.5ppm 4-Pin Surface Mount T/R - Tape and Reel (Alt: ECS-TXO-3225MV-200-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$1.0848 / $1.2810 | Buy Now |
|
DISTI #
520-TXO-3225MV-200-T
|
Mouser Electronics | TCXO Oscillators XTAL OSC TCXO 20.0000MHZ HCMOS RoHS: Compliant | 4826 |
|
$1.1900 / $1.7200 | Buy Now |
|
DISTI #
V72:2272_24682457
|
Arrow Electronics | Oscillator TCXO 20MHz ±1.5ppm (Tol) ±2.5ppm (Stability) 15pF HCMOS 55% 1.8V/2.5V/3.3V 4-Pin CSMD T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2223 Container: Cut Strips | Americas - 616 |
|
$0.8259 / $1.3505 | Buy Now |
|
|
Onlinecomponents.com | Oscillator TCXO - 20.0000MHz - HCMOS - Enable/Disable - ±2.5ppm -30°C to 85°C - 1.6 to 3.6V - 4-SMD - 0.126" x 0.098" (3.20mm x 2.50mm) RoHS: Compliant | 0 |
|
$1.1100 / $1.5700 | Buy Now |
|
DISTI #
ECS-TXO-3225MV-200-TR
|
Avnet Abacus | Temperature Compensated Crystal Oscillator 20MHz 25ppm 4Pin Surface Mount TR (Alt: ECS-TXO-3225MV-200-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 20 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for ECS-TXO-3225MV-200-TR

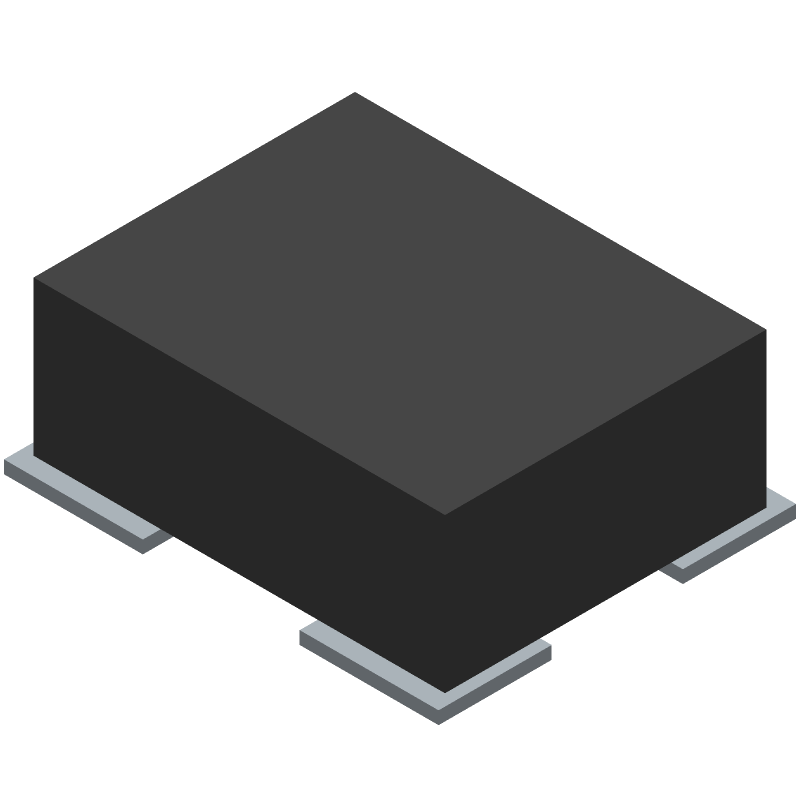

ECS-TXO-3225MV-200-TR CAD Models
ECS-TXO-3225MV-200-TR Part Data Attributes
|
|
ECS-TXO-3225MV-200-TR
ECS International Inc
Buy Now
Datasheet
|
Compare Parts:
ECS-TXO-3225MV-200-TR
ECS International Inc
HCMOS Output Clock Oscillator,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ECS INC INTERNATIONAL | |
| Package Description | SMD, 4 PIN | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | ECS | |
| Additional Feature | TRI-STATE; ENABLE/DISABLE FUNCTION | |
| Aging | 1 PPM/YEAR | |
| Fall Time-Max | 5 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 2.5% | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 20 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Oscillator Type | HCMOS | |
| Output Load | 15 pF | |
| Package Body Material | CERAMIC | |
| Package Equivalence Code | LCC4,.09X.12,87/69 | |
| Physical Dimension | 3.2mm x 2.5mm x 1.0mm | |
| Rise Time-Max | 5 ns | |
| Supply Current-Max | 6 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 1.7 V | |
| Surface Mount | YES | |
| Symmetry-Max | 45/55 % |
