ECS-2100AX-200 Information
ECS-2100AX-200 by ECS International Inc is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for ECS-2100AX-200
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
X964-ND
|
DigiKey | XTAL OSC XO 20.0000MHZ HCMOS TTL Min Qty: 1 Lead time: 18 Weeks Container: Tube |
3923 In Stock |
|
$1.8125 / $2.6700 | Buy Now |
|
DISTI #
ECS-2100AX-200
|
Avnet Americas | TH Crystal Oscillator 20MHz 5V 50pF 4-Pin DIP - Rail/Tube (Alt: ECS-2100AX-200) RoHS: Compliant Min Qty: 1000 Package Multiple: 40 Lead time: 18 Weeks, 0 Days Container: Tube | 0 |
|
$1.7376 / $1.7738 | Buy Now |
|
DISTI #
520-TCH2000-X
|
Mouser Electronics | Standard Clock Oscillators DIP-8 5V 20MHz RoHS: Compliant | 658 |
|
$1.8100 / $2.6700 | Buy Now |
|
|
Onlinecomponents.com | Crystal Oscillator - 20.000MHZ - HCMOS/TTL - 5V - ±100ppm - 0°C to 70°C - Through Hole - 0.520"L x 0.520"W x 0.213"H (13.20 x 13.20 x 5.40mm) RoHS: Compliant | 0 |
|
$1.8500 / $2.3400 | Buy Now |
|
|
Bristol Electronics | 28 |
|
RFQ |
Part Details for ECS-2100AX-200

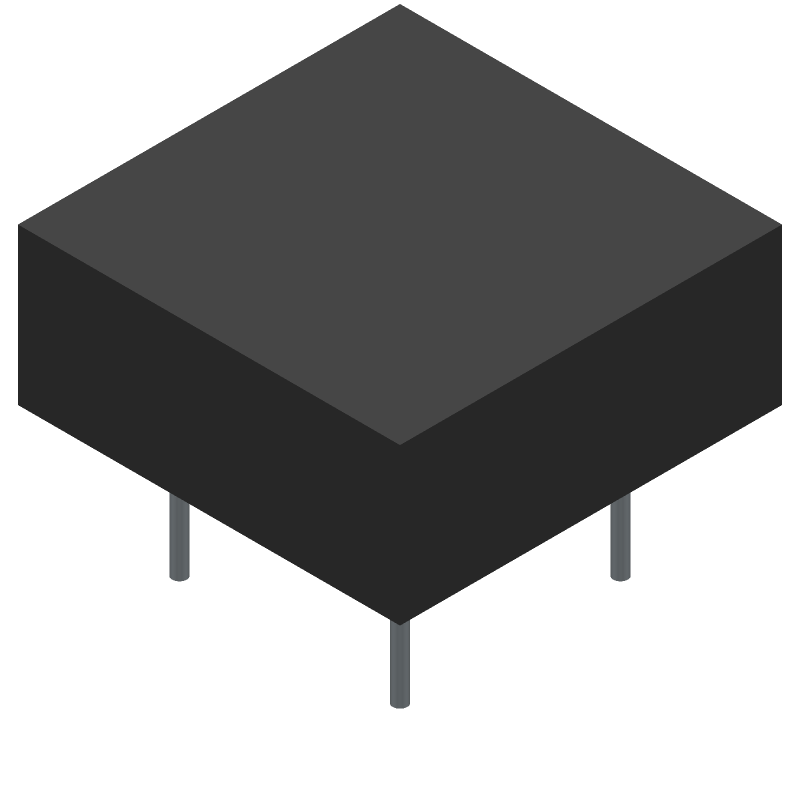

ECS-2100AX-200 CAD Models
ECS-2100AX-200 Part Data Attributes
|
|
ECS-2100AX-200
ECS International Inc
Buy Now
Datasheet
|
Compare Parts:
ECS-2100AX-200
ECS International Inc
OSCILLATOR 20.000MHZ 1/2 SIZE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | ECS INC INTERNATIONAL | |
| Package Description | DIP-8/4 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | ECS | |
| Fall Time-Max | 5 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 100% | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 8 | |
| Operating Frequency-Nom | 20 MHz | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Oscillator Type | HCMOS/TTL | |
| Output Load | 10 TTL, 50 pF | |
| Output Low Current-Max | 16 mA | |
| Package Body Material | METAL | |
| Package Equivalence Code | DIP4/8,.3 | |
| Physical Dimension | 13.2mm x 13.2mm x 6.2mm | |
| Rise Time-Max | 5 ns | |
| Supply Current-Max | 25 mA | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | NO | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | Matte Tin (Sn) |
