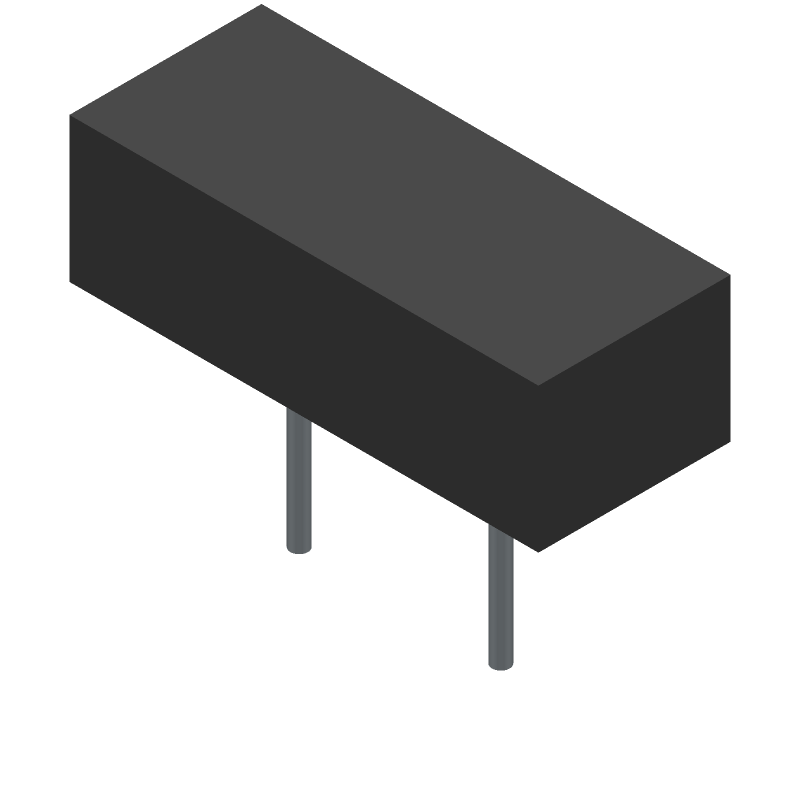

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECS-200-18-4X by ECS International Inc
Results Overview of ECS-200-18-4X by ECS International Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ECS-200-18-4X Information
ECS-200-18-4X by ECS International Inc is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.
Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.
Price & Stock for ECS-200-18-4X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50-ECS-200-18-4X-ND
|
DigiKey | CRYSTAL 20.0000MHZ 18PF TH Min Qty: 1 Lead time: 10 Weeks Container: Bulk |
7739 In Stock |
|
$0.3358 / $0.5900 | Buy Now |
|
DISTI #
ECS-200-18-4X
|
Avnet Americas | Crystal 20MHz 18pF 2-Pin HC-49/USX Bulk - Bulk (Alt: ECS-200-18-4X) RoHS: Compliant Min Qty: 1000 Package Multiple: 200 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$0.2461 / $0.2920 | Buy Now |
|
DISTI #
520-ECS-200-18-4X
|
Mouser Electronics | Crystals HC-49USX, 20MHz, 18pF, HC-49USX, +/-30ppm, +/-50ppm, -10C +70 C, RoHS RoHS: Compliant | 8070 |
|
$0.2910 / $0.3600 | Buy Now |
|
|
Onlinecomponents.com | Crystal - 20.000MHz ±30ppm - 18pF - 30 Ohm - ±50ppm -10°C to 70°C - Thru Hole - HC49/USX - 0.447" x 0.183" x 0.138" (11.35mm x 4.65mm x 3.50mm) RoHS: Compliant | 0 |
|
$0.2487 / $0.4231 | Buy Now |
