ECS-120-18-9X Information

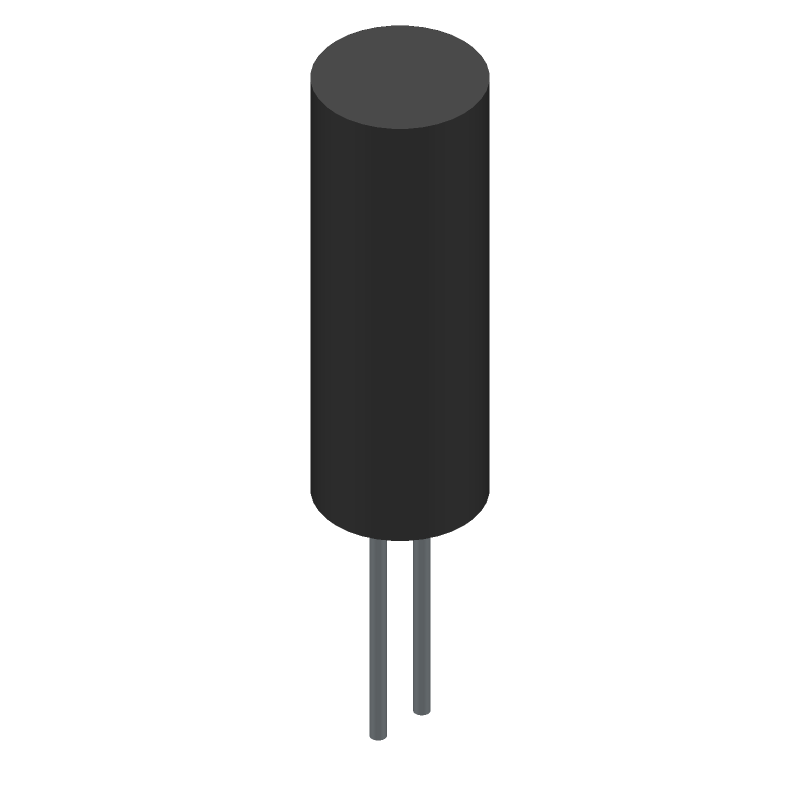

ECS-120-18-9X by ECS International Inc is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.
Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.
Price & Stock for ECS-120-18-9X
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
XC1380-ND
|
DigiKey | CRYSTAL 12.0000MHZ 18PF TH Min Qty: 1 Lead time: 22 Weeks Container: Bulk |
17706 In Stock |
|
$0.3572 / $0.6300 | Buy Now |
|
DISTI #
ECS-120-18-9X
|
Avnet Americas | Crystal 12MHz 18pF 2-Pin Radial - Bulk (Alt: ECS-120-18-9X) RoHS: Compliant Min Qty: 1000 Package Multiple: 500 Lead time: 22 Weeks, 0 Days Container: Bulk | 0 |
|
$0.3454 / $0.4429 | Buy Now |
|
DISTI #
520-ECS-1200-18-9X
|
Mouser Electronics | Crystals 12MHz 18pF RoHS: Compliant | 1469 |
|
$0.3970 / $0.6300 | Buy Now |
|
DISTI #
V36:1790_17729858
|
Arrow Electronics | Crystal 12MHz ±50ppm (Tol) ±50ppm (Stability) 18pF FUND 50Ohm 2-Pin Thru-Hole Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks Date Code: 2444 | Americas - 940 |
|
$0.4430 / $0.6095 | Buy Now |
|
DISTI #
V99:2348_17729858
|
Arrow Electronics | Crystal 12MHz ±50ppm (Tol) ±50ppm (Stability) 18pF FUND 50Ohm 2-Pin Thru-Hole Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 22 Weeks Date Code: 2131 | Americas - 6 |
|
$0.2410 / $0.3107 | Buy Now |
|
|
Onlinecomponents.com | Crystal - 12.0000MHz ±50ppm - 18pF - 50 Ohm - ±50ppm -10°C to 60°C - Cylindrical Can - Radial - 0.126" Dia x 0.354" L (3.20mm x 9.00mm) RoHS: Compliant | 0 |
|
$0.3979 / $0.6980 | Buy Now |
|
|
Vyrian | Crystals & Resonators | 4906 |
|
RFQ |
Part Details for ECS-120-18-9X
ECS-120-18-9X CAD Models
ECS-120-18-9X Part Data Attributes
|
|
ECS-120-18-9X
ECS International Inc
Buy Now
Datasheet
|
Compare Parts:
ECS-120-18-9X
ECS International Inc
CRYSTAL 12.000MHZ 18PF CYLINDER
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ECS INC INTERNATIONAL | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.60.00.50 | |
| Factory Lead Time | 22 Weeks | |
| Samacsys Manufacturer | ECS | |
| Aging | 5 PPM/FIRST YEAR | |
| Crystal/Resonator Type | PARALLEL - FUNDAMENTAL | |
| Drive Level | 50 µW | |
| Frequency Stability | 0.005% | |
| Frequency Tolerance | 50 ppm | |
| JESD-609 Code | e3 | |
| Load Capacitance | 18 pF | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Operating Frequency-Nom | 12 MHz | |
| Operating Temperature-Max | 60 °C | |
| Operating Temperature-Min | -10 °C | |
| Physical Dimension | 3.2mm x 9mm | |
| Series Resistance | 50 Ω | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) |
