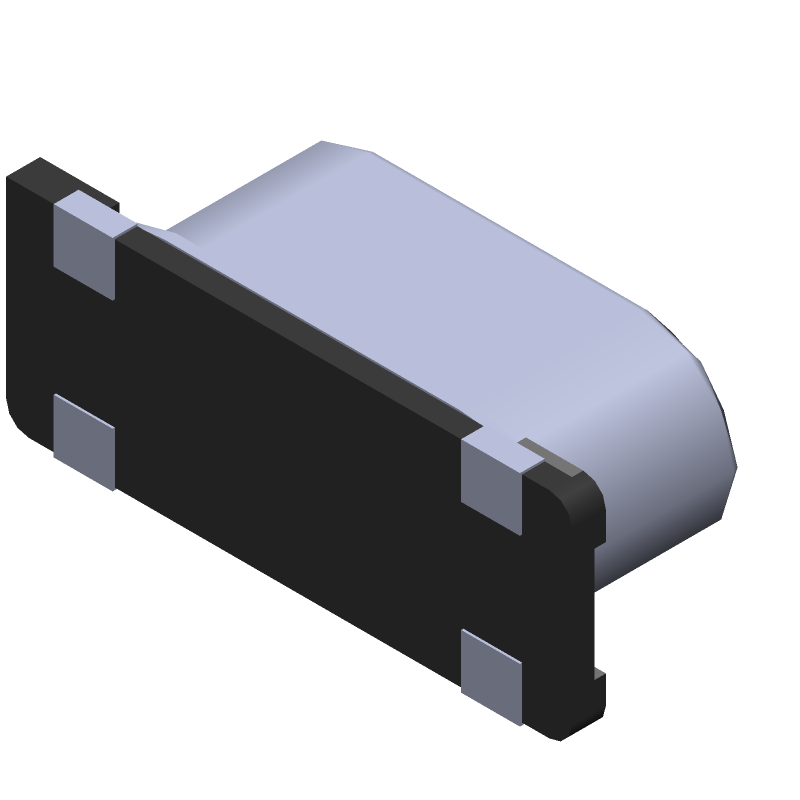

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECS-110-20-28AX-TR by ECS International Inc
Results Overview of ECS-110-20-28AX-TR by ECS International Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
ECS-110-20-28AX-TR Information
ECS-110-20-28AX-TR by ECS International Inc is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.
Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.
Price & Stock for ECS-110-20-28AX-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
50-ECS-110-20-28AX-TRCT-ND
|
DigiKey | CRYSTAL 11.0000MHZ 20PF SMD Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1100 In Stock |
|
$0.5625 / $1.1100 | Buy Now |
|
DISTI #
ECS-110-20-28AX-TR
|
Avnet Americas | Crystal 11MHz 20pF 4-Pin SMD T/R - Tape and Reel (Alt: ECS-110-20-28AX-TR) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$0.4480 / $0.6586 | Buy Now |
|
DISTI #
520-ECS-110-2028AXTR
|
Mouser Electronics | Crystals CSM-4AZ, 11MHz, 20pF, CSM-4AX, +/-30ppm, +/-50ppm, -10C +70 C, RoHS RoHS: Compliant | 987 |
|
$0.5780 / $1.1100 | Buy Now |
|
|
Onlinecomponents.com | Crystal 11MHz - 20pF - CSM-4AX - ±30ppm - ±50ppm - -10C ~ +70°C - RoHS RoHS: Compliant | 0 |
|
$0.4528 / $0.6720 | Buy Now |
Part Details for ECS-110-20-28AX-TR
ECS-110-20-28AX-TR CAD Models
ECS-110-20-28AX-TR Part Data Attributes
|
|
ECS-110-20-28AX-TR
ECS International Inc
Buy Now
Datasheet
|
Compare Parts:
ECS-110-20-28AX-TR
ECS International Inc
Parallel - Fundamental Quartz Crystal, 11MHz Nom, SMD, 4 PIN
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ECS INC INTERNATIONAL | |
| Package Description | SMD, 4 PIN | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | ECS | |
| Aging | 5 PPM/FIRST YEAR | |
| Crystal/Resonator Type | PARALLEL - FUNDAMENTAL | |
| Drive Level | 500 µW | |
| Frequency Stability | 0.005% | |
| Frequency Tolerance | 30 ppm | |
| Load Capacitance | 20 pF | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Frequency-Nom | 11 MHz | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -10 °C | |
| Physical Dimension | 12.5mm X 4.85mm x 5.0mm | |
| Series Resistance | 60 Ω | |
| Surface Mount | YES |
