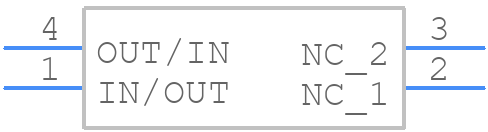

Part Symbol
-

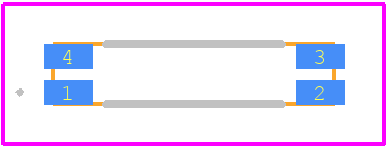

Footprint
-

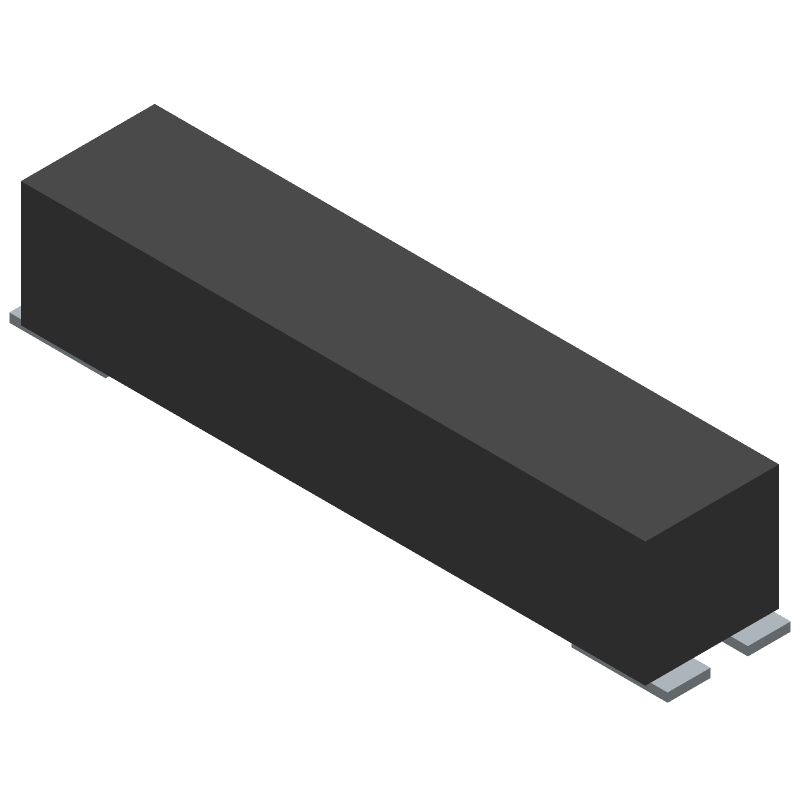

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECS-.327-12.5-38-TR by ECS International Inc
Results Overview of ECS-.327-12.5-38-TR by ECS International Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Aerospace and Defense
Agriculture Technology
Renewable Energy
Robotics and Drones
ECS-.327-12.5-38-TR Information
ECS-.327-12.5-38-TR by ECS International Inc is a Quartz Crystal.
Quartz Crystals are under the broader part category of Crystals/Resonators.
Crystals and resonators are key components in electronic circuits that provide precise frequency signals for applications like timing and data processing. Read more about Crystals/Resonators on our Crystals/Resonators part category page.
Price & Stock for ECS-.327-12.5-38-TR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79AK4465
|
Newark | Xtal, 32.768Khz/12.5Pf/Smd, 7Mm X 1.5Mm Rohs Compliant: Yes |Ecs Inc International ECS-.327-12.5-38-TR RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 0 |
|
$0.4130 / $0.5950 | Buy Now |
|
DISTI #
XC1616CT-ND
|
DigiKey | CRYSTAL 32.7680KHZ 12.5PF SMD Min Qty: 1 Lead time: 10 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
259979 In Stock |
|
$0.3565 / $0.7400 | Buy Now |
|
DISTI #
ECS-.327-12.5-38-TR
|
Avnet Americas | Crystal, 32.768 kHz, SMD, 7mm x 1.5mm, 12.5 pF, 20 ppm, ECX-71 Series - Tape and Reel (Alt: ECS-.327-12.5-38-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Container: Reel | 3000 |
|
$0.3510 / $0.3735 | Buy Now |
|
DISTI #
520-327-12.5-38
|
Mouser Electronics | Crystals 32.768 KHz RoHS: Compliant | 3449 |
|
$0.3720 / $0.7400 | Buy Now |
|
DISTI #
V36:1790_17729834
|
Arrow Electronics | Crystal 0.032768MHz ±20ppm (Tol) 12.5pF FUND 65000Ohm 4-Pin Mini-SMD T/R Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks Date Code: 2319 | Americas - 6000 |
|
$0.3783 / $0.3816 | Buy Now |
|
DISTI #
V72:2272_17729834
|
Arrow Electronics | Crystal 0.032768MHz ±20ppm (Tol) 12.5pF FUND 65000Ohm 4-Pin Mini-SMD T/R Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2217 Container: Cut Strips | Americas - 11 |
|
$0.4161 / $0.4232 | Buy Now |
|
|
Onlinecomponents.com | Crystal - 32.768KHz ±20ppm - 12.5pF - 65kohm - -40°C to 85°C - 4-SMD - 0.276"x 0.060"(7.00mm x 1.50mm) RoHS: Compliant |
6000 In Stock |
|
$0.3882 / $0.4195 | Buy Now |
|
DISTI #
ECS-.327-12.5-38-TR
|
IBS Electronics | ECX-71 SERIES 32.768 KHZ ±, 20 PPM 12.5 PF -40 TO +, 85 °, C SMT TUNING FORK CRYSTAL Min Qty: 3000 Package Multiple: 1 | 0 |
|
$0.4680 / $0.4810 | Buy Now |
|
DISTI #
ECS-.327-12.5-38-TR
|
Avnet Abacus | Crystal 32768 kHz SMD 7mm x 15mm 125 pF 20 ppm ECX71 Series - Tape and Reel (Alt: ECS-.327-12.5-38-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
DISTI #
ECS-.327-12.5-38-TR
|
Avnet Asia | Crystal, 32.768 kHz, SMD, 7mm x 1.5mm, 12.5 pF, 20 ppm, ECX-71 Series (Alt: ECS-.327-12.5-38-TR) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 18 Weeks, 0 Days | 0 |
|
RFQ |
Part Details for ECS-.327-12.5-38-TR
ECS-.327-12.5-38-TR CAD Models
ECS-.327-12.5-38-TR Part Data Attributes
|
|
ECS-.327-12.5-38-TR
ECS International Inc
Buy Now
Datasheet
|
Compare Parts:
ECS-.327-12.5-38-TR
ECS International Inc
Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, ROHS COMPLIANT, MINIATURE, PLASTIC, SMD, 4 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ECS INC INTERNATIONAL | |
| Package Description | ROHS COMPLIANT, MINIATURE, PLASTIC, SMD, 4 PIN | |
| Reach Compliance Code | not_compliant | |
| HTS Code | 8541.60.00.10 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | ECS | |
| Additional Feature | TAPE AND REEL | |
| Aging | 3 PPM/FIRST YEAR | |
| Crystal/Resonator Type | PARALLEL - FUNDAMENTAL | |
| Drive Level | 0.1 µW | |
| Frequency Stability | 0.0162% | |
| Frequency Tolerance | 20 ppm | |
| JESD-609 Code | e3 | |
| Load Capacitance | 12.5 pF | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Frequency-Nom | 0.032768 MHz | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Physical Dimension | L7.0XB1.5XH1.4 (mm)/L0.276XB0.059XH0.055 (inch) | |
| Series Resistance | 65000 Ω | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) |
ECS-.327-12.5-38-TR Frequently Asked Questions (FAQ)
-
The recommended PCB layout and land pattern for ECS-.327-12.5-38-TR can be found in the ECS International Inc. application note AN-001, which provides detailed guidelines for optimal PCB design and layout.
-
ECS-.327-12.5-38-TR is designed to operate in temperatures ranging from -40°C to 125°C. However, it's recommended to derate the component's power handling by 1.5% per degree Celsius above 85°C to ensure reliable operation.
-
The recommended soldering profile for ECS-.327-12.5-38-TR is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
-
Yes, ECS-.327-12.5-38-TR is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper PCB mounting and securing to prevent component damage.
-
The typical lead time for ECS-.327-12.5-38-TR is 8-12 weeks, depending on the quantity and availability. It's recommended to check with ECS International Inc. or authorized distributors for the most up-to-date lead time information.
