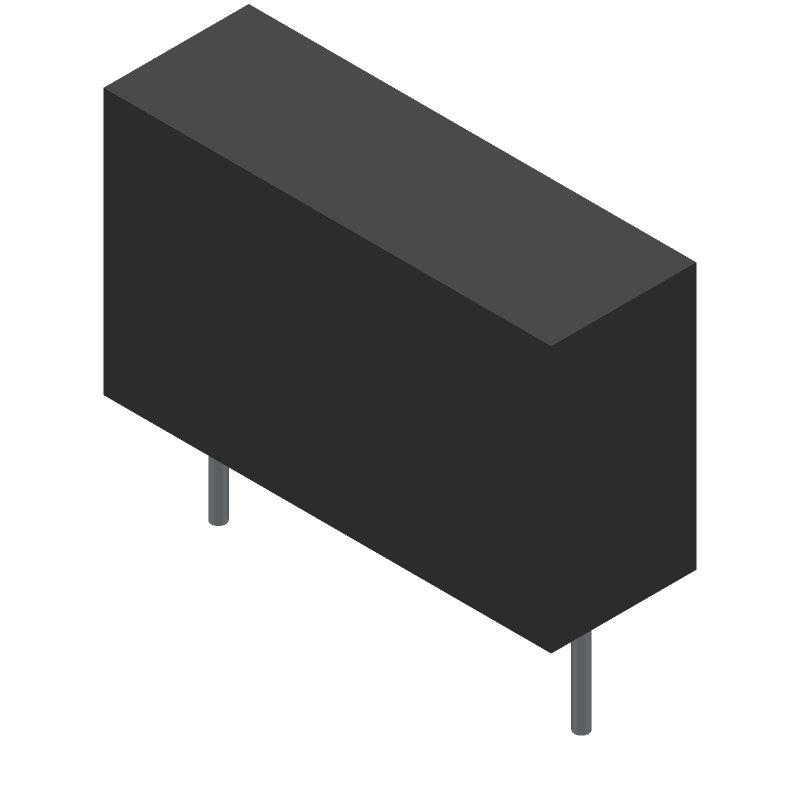

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECQUBAF153K by Panasonic Electronic Components
Results Overview of ECQUBAF153K by Panasonic Electronic Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ECQUBAF153K Information
ECQUBAF153K by Panasonic Electronic Components is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for ECQUBAF153K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
84AH5517
|
Newark | Cap, Safety, 0.015Uf, Class X1, 300V Rohs Compliant: Yes |Panasonic ECQUBAF153K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 665 |
|
$0.6320 / $0.9450 | Buy Now |
|
DISTI #
ECQUBAF153K
|
Avnet Abacus | Safety Capacitor 0015 uF 300 VAC 10 X1 Metallized PP Radial Box 2 Pin Through Hole (Alt: ECQUBAF153K) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for ECQUBAF153K
ECQUBAF153K CAD Models
ECQUBAF153K Part Data Attributes
|
|
ECQUBAF153K
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ECQUBAF153K
Panasonic Electronic Components
Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 0.015uF, Through Hole Mount, RADIAL LEADED
|
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 47 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 0.015 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYPROPYLENE | |
| Height | 10.5 mm | |
| Length | 18.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 110 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 10% | |
| Rated (AC) Voltage (URac) | 300 V | |
| Reference Standard | CAN; CSA; DEMKO; EN; UL | |
| Surface Mount | NO | |
| Terminal Pitch | 15 mm | |
| Terminal Shape | WIRE | |
| Width | 6 mm |
Alternate Parts for ECQUBAF153K
This table gives cross-reference parts and alternative options found for ECQUBAF153K. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ECQUBAF153K, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ECQUBAF153KA | Panasonic Electronic Components | $0.8194 | Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 0.015uF, Through Hole Mount, RADIAL LEADED | ECQUBAF153K vs ECQUBAF153KA |
| ECQUBAF153VH | Panasonic Electronic Components | Check for Price | Film Capacitor, Polypropylene, 10% +Tol, 10% -Tol, 0.015uF, Through Hole Mount, RADIAL LEADED | ECQUBAF153K vs ECQUBAF153VH |
