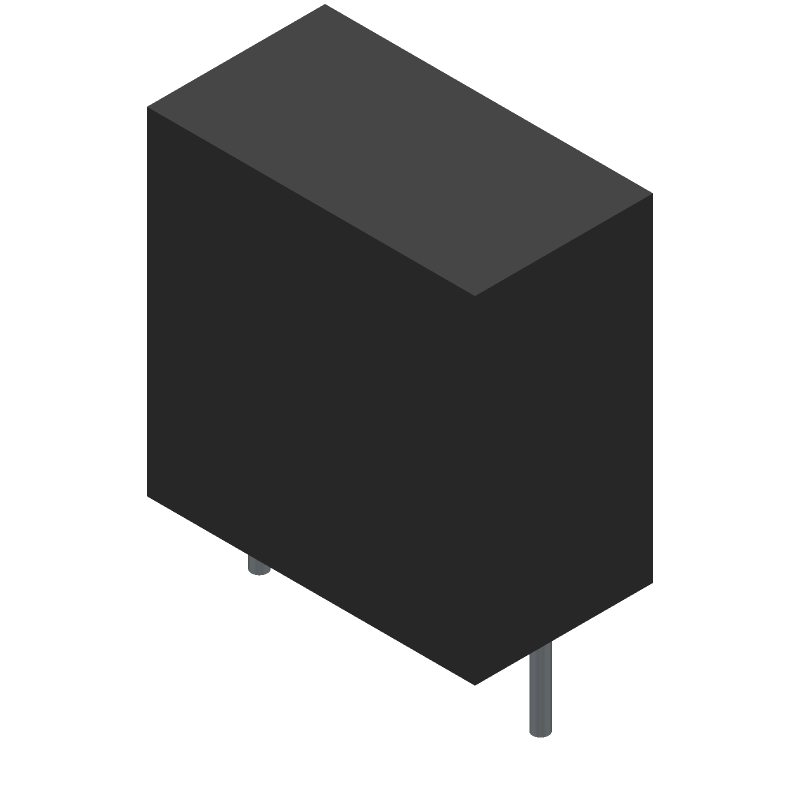

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECQU2A334ML by Panasonic Electronic Components
Results Overview of ECQU2A334ML by Panasonic Electronic Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
Healthcare
Energy and Power Systems
Medical Imaging
Renewable Energy
Entertainment and Gaming
ECQU2A334ML Information
ECQU2A334ML by Panasonic Electronic Components is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for ECQU2A334ML
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53W8303
|
Newark | Capacitor Polyester Film,0.33Uf, 275V, Radial, Dielectric Type:Metallized Pet, Capacitor Case/Package:Radial Box - 2 Pin, Capacitance:0.33Μf, Capacitance Tolerance:± 20%, Suppression Class:X2, Capacitor Mounting:Through Hole Rohs Compliant: Yes |Panasonic ECQU2A334ML RoHS: Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
ECQU2A334ML
|
Avnet Abacus | Safety Capacitor 033 uF 275 VAC 275 VAC 20 X2 Y2 Metallized Polyester Radial Box 2 Pin Through Hole (Alt: ECQU2A334ML) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 143 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for ECQU2A334ML
ECQU2A334ML CAD Models
ECQU2A334ML Part Data Attributes
|
|
ECQU2A334ML
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ECQU2A334ML
Panasonic Electronic Components
Film Capacitor, Polypropylene, 20% +Tol, 20% -Tol, 0.33uF, Through Hole Mount, 6937, RADIAL LEADED
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.0060 | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | SAFTEY CLASS: X2 | |
| Capacitance | 0.33 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYESTER | |
| Height | 17.5 mm | |
| JESD-609 Code | e3 | |
| Length | 17.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Radial | |
| Packing Method | Bulk | |
| Positive Tolerance | 20% | |
| Rated (AC) Voltage (URac) | 275 V | |
| Reference Standard | CSA; UL; VDE | |
| Surface Mount | NO | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 15 mm | |
| Terminal Shape | WIRE | |
| Width | 9.5 mm |
ECQU2A334ML Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for ECQU2A334ML is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, ECQU2A334ML is compatible with lead-free soldering and is RoHS compliant.
-
The maximum voltage derating for ECQU2A334ML is 80% of the rated voltage to ensure reliable operation.
-
ECQU2A334ML is designed for high-frequency applications and exhibits low equivalent series resistance (ESR) and low impedance, making it suitable for high-frequency circuits.
-
Yes, ECQU2A334ML is AEC-Q200 qualified, making it suitable for automotive applications that require high reliability and performance.
