ECQE1106KF Information
ECQE1106KF by Panasonic Electronic Components is a Film Capacitor.
Film Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for ECQE1106KF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47AC4515
|
Newark | Cap, 10Μf, 100V, 10%, Pet, Capacitance:10Μf, Voltage Rating:100V, Capacitor Dielectric Type:Pet (Polyester), Capacitance Tolerance:± 10%, Product Range:Ecqe(F) Series, Capacitor Case Style:-, Capacitor Terminals:Radial Leaded, Lead Rohs Compliant: Yes |Panasonic ECQE1106KF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$1.3900 / $2.6900 | Buy Now |
|
DISTI #
ECQE1106KF
|
TME | Capacitor: polyester, 10uF, 100VDC, 22.5mm, ±10%, 26x11.5x21mm Min Qty: 500 | 0 |
|
$1.3700 | RFQ |
|
DISTI #
ECQE1106KF
|
Avnet Abacus | General Purpose Film Capacitor Metallized PET Radial Box 2 Pin 10 F 10 63 V 100 V (Alt: ECQE1106KF) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 39 |
|
RFQ | |
|
|
Vyrian | Capacitors | 36755 |
|
RFQ |
Part Details for ECQE1106KF

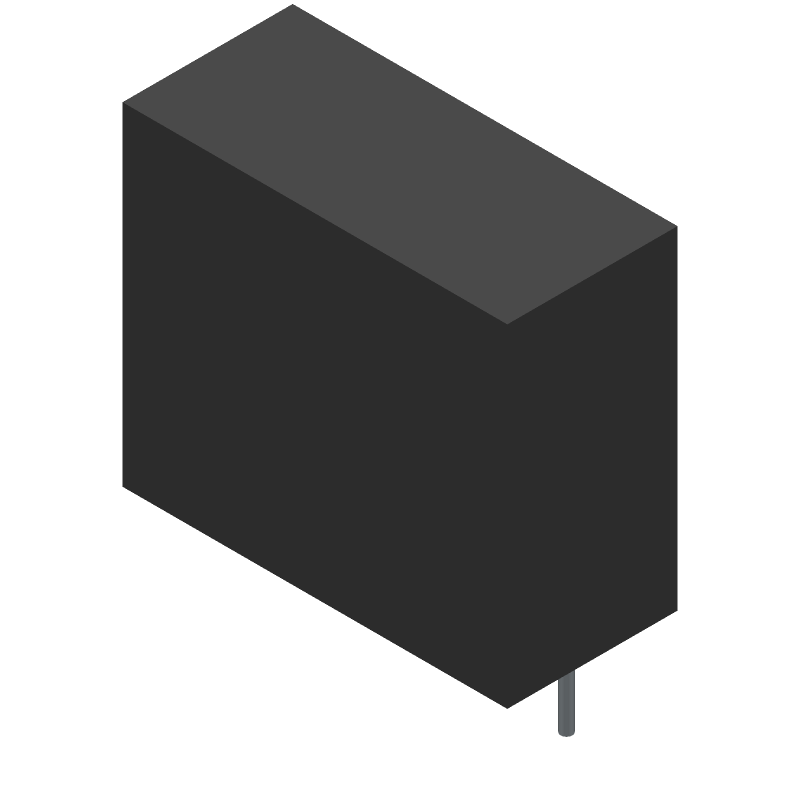

ECQE1106KF CAD Models
ECQE1106KF Part Data Attributes
|
|
ECQE1106KF
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ECQE1106KF
Panasonic Electronic Components
Film Capacitor, Polyester, 100V, 10% +Tol, 10% -Tol, 10uF, Through Hole Mount, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.25.00.70 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Additional Feature | FLAME PROOF | |
| Capacitance | 10 µF | |
| Capacitor Type | FILM CAPACITOR | |
| Dielectric Material | POLYESTER | |
| Height | 21 mm | |
| JESD-609 Code | e3 | |
| Length | 26 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 100 V | |
| Surface Mount | NO | |
| Terminal Finish | TIN | |
| Terminal Pitch | 22.5 mm | |
| Terminal Shape | WIRE | |
| Width | 11.5 mm |
Alternate Parts for ECQE1106KF
This table gives cross-reference parts and alternative options found for ECQE1106KF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ECQE1106KF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 106MMR100K | Cornell Dubilier Electronics Inc | $1.7033 | Film Capacitor, Polyester, 100V, 10% +Tol, 10% -Tol, 10uF, Through Hole Mount, RADIAL LEADED, LEAD FREE | ECQE1106KF vs 106MMR100K |
