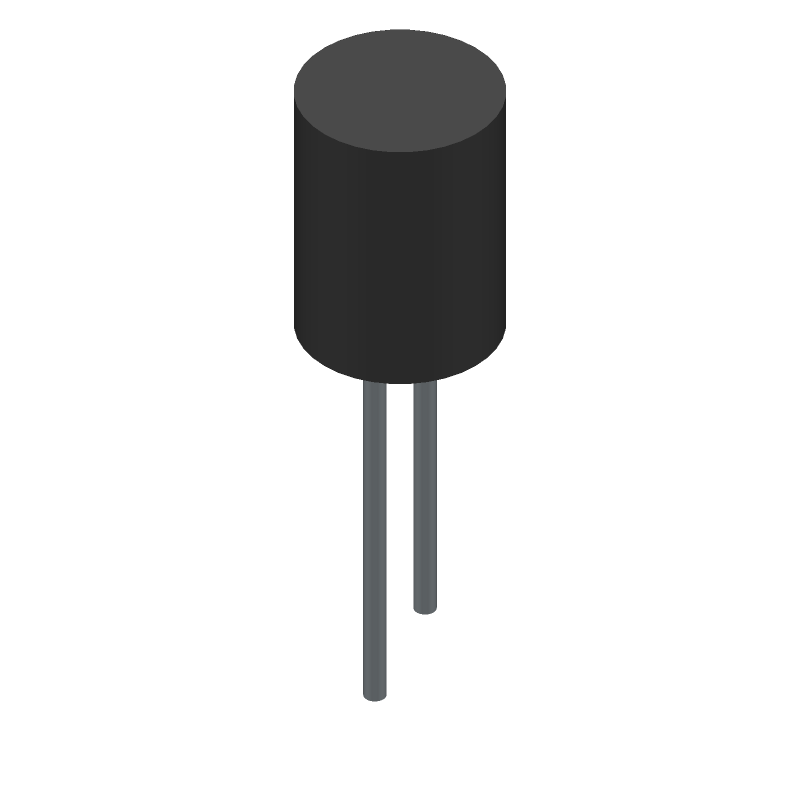

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECEA1EKS4R7I by Panasonic Electronic Components
Results Overview of ECEA1EKS4R7I by Panasonic Electronic Components
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ECEA1EKS4R7I Information
ECEA1EKS4R7I by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for ECEA1EKS4R7I
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
ECEA1EKS4R7I
|
TME | Capacitor: electrolytic, THT, 4.7uF, 25VDC, Ø4x5mm, Pitch: 2.5mm Min Qty: 6000 | 0 |
|
$0.0680 | RFQ |
Part Details for ECEA1EKS4R7I
ECEA1EKS4R7I CAD Models
ECEA1EKS4R7I Part Data Attributes
|
|
ECEA1EKS4R7I
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ECEA1EKS4R7I
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 4.7uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | , | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 21 Weeks | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 4.7 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 4 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.003 mA | |
| Length | 5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Packing Method | AMMO PACK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 25 V | |
| Ripple Current | 22 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.14 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 2.5 mm | |
| Terminal Shape | WIRE |
Alternate Parts for ECEA1EKS4R7I
This table gives cross-reference parts and alternative options found for ECEA1EKS4R7I. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ECEA1EKS4R7I, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 24R7LDM0405MVN985B | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,4.7UF,25VDC,20% -TOL,20% +TOL | ECEA1EKS4R7I vs 24R7LDM0405MVN985B |
| 24R7LDM0405MVN28EB | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,4.7UF,25VDC,20% -TOL,20% +TOL | ECEA1EKS4R7I vs 24R7LDM0405MVN28EB |
| 84R7LDM0405MVN785M | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,4.7UF,25VDC,20% -TOL,20% +TOL | ECEA1EKS4R7I vs 84R7LDM0405MVN785M |
| 14R7LDM0405MVN48EC | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,4.7UF,25VDC,20% -TOL,20% +TOL | ECEA1EKS4R7I vs 14R7LDM0405MVN48EC |
| RCD11A025472M | TDK Electronics | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 4.7uF | ECEA1EKS4R7I vs RCD11A025472M |
| 24R7LDM0405MVN78FA | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,4.7UF,25VDC,20% -TOL,20% +TOL | ECEA1EKS4R7I vs 24R7LDM0405MVN78FA |
| 84R7LDM0405MVN485C | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,4.7UF,25VDC,20% -TOL,20% +TOL | ECEA1EKS4R7I vs 84R7LDM0405MVN485C |
| RSG475025M0405 | Taiwan Ostor Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 4.7uF, | ECEA1EKS4R7I vs RSG475025M0405 |
| 84R7LDM0405MVN081C | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,4.7UF,25VDC,20% -TOL,20% +TOL | ECEA1EKS4R7I vs 84R7LDM0405MVN081C |
| 24R7LDM0405MVN481A | Fenghua (HK) Electronics Ltd | Check for Price | CAP,AL2O3,4.7UF,25VDC,20% -TOL,20% +TOL | ECEA1EKS4R7I vs 24R7LDM0405MVN481A |
