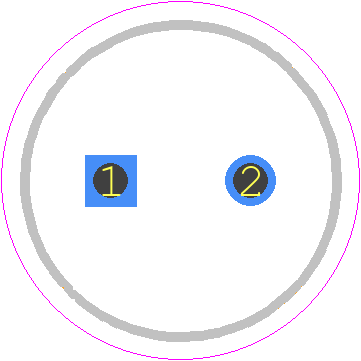

Footprint
-

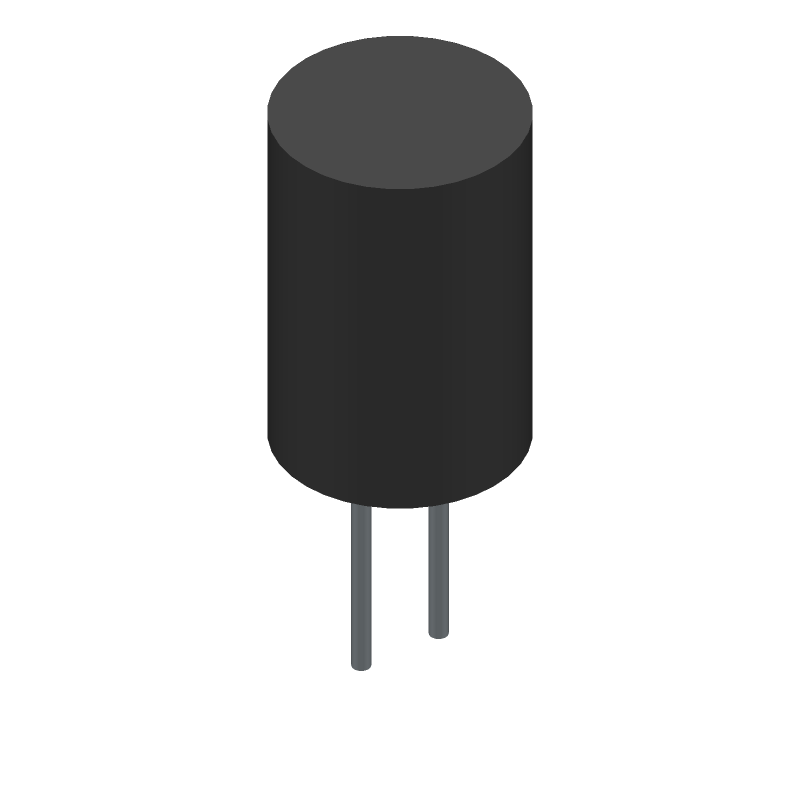

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ECA2AM470 by Panasonic Electronic Components
Results Overview of ECA2AM470 by Panasonic Electronic Components
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ECA2AM470 Information
ECA2AM470 by Panasonic Electronic Components is an Aluminum Electrolytic Capacitor.
Aluminum Electrolytic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for ECA2AM470
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
9693939
|
Farnell | CAP, 47F, 100V, 20% RoHS: Compliant Min Qty: 1 Lead time: 21 Weeks, 0 Days Container: Each | 9669 |
|
$0.1570 / $0.4883 | Buy Now |
|
|
Bristol Electronics | 65 |
|
RFQ | ||
|
|
Quest Components | ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 100V, 20% +TOL, 20% -TOL, 47UF, THROUGH HOLE MOUNT | 753 |
|
$0.1500 / $0.5000 | Buy Now |
|
|
Quest Components | ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 100V, 20% +TOL, 20% -TOL, 47UF, THROUGH HOLE MOUNT (Also Known As: ECA-2AM470) | 753 |
|
$0.1500 / $0.5000 | Buy Now |
|
|
Quest Components | ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 100V, 20% +TOL, 20% -TOL, 47UF, THROUGH HOLE MOUNT (Also Known As: ECA-2AM470) | 640 |
|
$0.2049 / $0.6830 | Buy Now |
|
|
Quest Components | ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 100V, 20% +TOL, 20% -TOL, 47UF, THROUGH HOLE MOUNT | 640 |
|
$0.2049 / $0.6830 | Buy Now |
|
|
Quest Components | ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 100V, 20% +TOL, 20% -TOL, 47UF, THROUGH HOLE MOUNT | 168 |
|
$0.1800 / $0.6000 | Buy Now |
|
|
Quest Components | ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 100V, 20% +TOL, 20% -TOL, 47UF, THROUGH HOLE MOUNT (Also Known As: ECA-2AM470) | 168 |
|
$0.1800 / $0.6000 | Buy Now |
|
|
Quest Components | ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 100V, 20% +TOL, 20% -TOL, 47UF, THROUGH HOLE MOUNT (Also Known As: ECA-2AM470) | 148 |
|
$0.1366 / $0.2049 | Buy Now |
|
|
Quest Components | ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 100V, 20% +TOL, 20% -TOL, 47UF, THROUGH HOLE MOUNT | 148 |
|
$0.1366 / $0.2049 | Buy Now |
Part Details for ECA2AM470
ECA2AM470 CAD Models
ECA2AM470 Part Data Attributes
|
|
ECA2AM470
Panasonic Electronic Components
Buy Now
Datasheet
|
Compare Parts:
ECA2AM470
Panasonic Electronic Components
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PANASONIC CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.22.00.20 | |
| Factory Lead Time | 28 Weeks, 1 Day | |
| Samacsys Manufacturer | Panasonic | |
| Capacitance | 47 µF | |
| Capacitor Type | ALUMINUM ELECTROLYTIC CAPACITOR | |
| Diameter | 8 mm | |
| Dielectric Material | ALUMINUM (WET) | |
| JESD-609 Code | e3 | |
| Leakage Current | 0.047 mA | |
| Length | 11.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | CYLINDRICAL PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Polarity | POLARIZED | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 100 V | |
| Ripple Current | 180 mA | |
| Surface Mount | NO | |
| Tan Delta | 0.10 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 3.5 mm | |
| Terminal Shape | WIRE |
Alternate Parts for ECA2AM470
This table gives cross-reference parts and alternative options found for ECA2AM470. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ECA2AM470, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| RDLLA47M100TB8X11.5 | IBS Electronics Inc | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 47uF | ECA2AM470 vs RDLLA47M100TB8X11.5 |
| UVK2A470MPD1CT | Nichicon Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 47uF, | ECA2AM470 vs UVK2A470MPD1CT |
| RDL47M100TR18X11.5 | IBS Electronics Inc | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 47uF | ECA2AM470 vs RDL47M100TR18X11.5 |
| RDNP47M100CF38X11.5 | IBS Electronics Inc | Check for Price | Aluminum Electrolytic Capacitor, Non-polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 47uF | ECA2AM470 vs RDNP47M100CF38X11.5 |
| MALREKA00PB247L00K | Vishay Intertechnologies | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED | ECA2AM470 vs MALREKA00PB247L00K |
| MALREKA05PB247L00K | Vishay Intertechnologies | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 47uF, Through Hole Mount, RADIAL LEADED | ECA2AM470 vs MALREKA05PB247L00K |
| 100PK47MFA8X11.5 | Rubycon Corporation | Check for Price | CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 100V, 47uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT | ECA2AM470 vs 100PK47MFA8X11.5 |
| RDLLA47M100TR18X11.5 | IBS Electronics Inc | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum, 100V, 20% +Tol, 20% -Tol, 47uF | ECA2AM470 vs RDLLA47M100TR18X11.5 |
| 100PK47MEFCT78X11.5 | Rubycon Corporation | Check for Price | Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 47uF, | ECA2AM470 vs 100PK47MEFCT78X11.5 |
| SD2A476M0811MFS | Samwha Electronics | Check for Price | Aluminum Electrolytic Capacitor, Aluminum (wet) | ECA2AM470 vs SD2A476M0811MFS |
