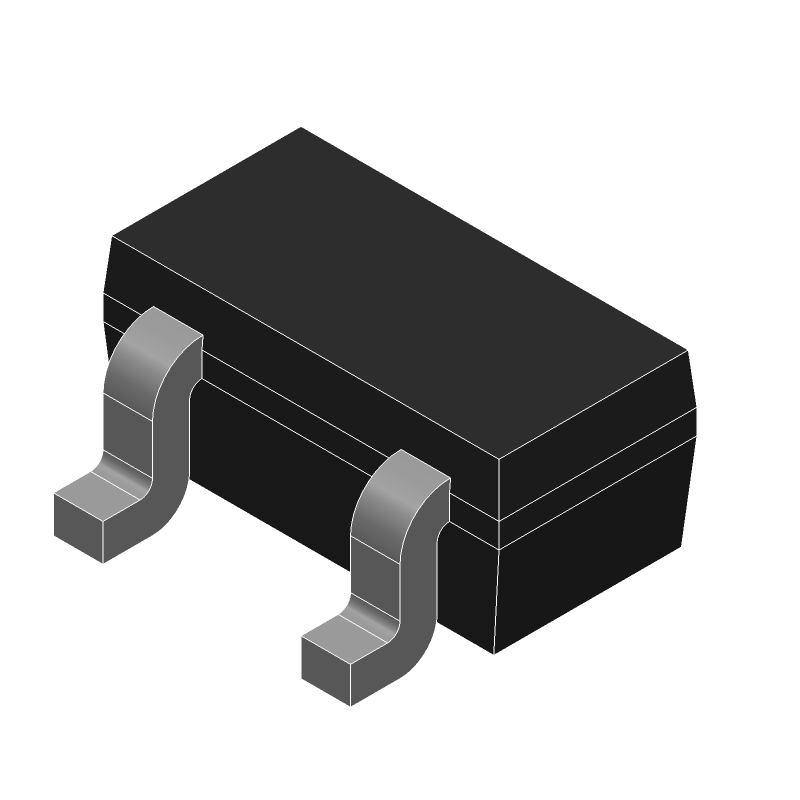

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DTC144EETL by ROHM Semiconductor
Results Overview of DTC144EETL by ROHM Semiconductor
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
DTC144EETL Information
DTC144EETL by ROHM Semiconductor is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for DTC144EETL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
74M0740
|
Newark | Transistor, Digital, Npn, Transistor Polarity:Single Npn, Collector Emitter Voltage Max Npn:50V, Collector Emitter Voltage Max Pnp:-, Continuous Collector Current:100Ma, Base Input Resistor R1:47Kohm, Base Emitter Resistor R2:47Kohm Rohs Compliant: Yes |Rohm DTC144EETL RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 750 |
|
$0.0980 / $0.3390 | Buy Now |
|
DISTI #
DTC144EETLCT-ND
|
DigiKey | TRANS PREBIAS NPN 50V 0.1A EMT3 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
18395 In Stock |
|
$0.0404 / $0.3200 | Buy Now |
|
DISTI #
755-DTC144EETL
|
Mouser Electronics | Digital Transistors DIGITAL NPN 50V 100MA EMD3 RoHS: Compliant | 0 |
|
$0.0400 / $0.3200 | Order Now |
|
DISTI #
62333136
|
Verical | Trans Digital BJT NPN 50V 0.1A 150mW 3-Pin EMT T/R RoHS: Compliant Min Qty: 1220 Package Multiple: 1 Date Code: 2201 | Americas - 125193 |
|
$0.0540 / $0.0599 | Buy Now |
|
DISTI #
62191504
|
Verical | Trans Digital BJT NPN 50V 0.1A 150mW 3-Pin EMT T/R RoHS: Compliant Min Qty: 1446 Package Multiple: 1 Date Code: 2221 | Americas - 114510 |
|
$0.0267 / $0.0450 | Buy Now |
|
|
Bristol Electronics | 15000 |
|
RFQ | ||
|
DISTI #
DTC144EETL
|
TTI | Digital Transistors DIGITAL NPN 50V 100MA EMD3 RoHS: Compliant pbFree: Pb-Free Min Qty: 3000 Package Multiple: 3000 Container: Reel | Americas - 0 |
|
$0.0370 / $0.0400 | Buy Now |
|
DISTI #
DTC144EETL
|
TME | Transistor: NPN, bipolar, BRT, 50V, 0.1A, 150mW, SC75A,SOT416 Min Qty: 20 | 0 |
|
$0.0273 / $0.0409 | RFQ |
|
|
ComSIT USA | NPN 100 MILLI AMPERES 50 V DIGITAL TRANSISTOR (BUILT-IN BIAS RESISTOR) Small Signal Bipolar Transistor, 0.03A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
DTC144EETL
|
Avnet Asia | Trans Digital BJT NPN 100mA 3-Pin EMT T/R (Alt: DTC144EETL) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 24 Weeks, 0 Days | 0 |
|
$0.0138 / $0.0155 | Buy Now |
Part Details for DTC144EETL
DTC144EETL CAD Models
DTC144EETL Part Data Attributes
|
|
DTC144EETL
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
DTC144EETL
ROHM Semiconductor
Small Signal Bipolar Transistor, 0.03A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, EMT3, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SC-75A | |
| Package Description | ROHS COMPLIANT, EMT3, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | BUILT-IN BIAS RESISTOR RATIO IS 1 | |
| Collector Current-Max (IC) | 0.03 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SINGLE WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 68 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation-Max (Abs) | 0.15 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | AMPLIFIER | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 250 MHz | |
| VCEsat-Max | 0.3 V |
Alternate Parts for DTC144EETL
This table gives cross-reference parts and alternative options found for DTC144EETL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DTC144EETL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DTC144EE | Taiwan Semiconductor | Check for Price | Small Signal Bipolar Transistor | DTC144EETL vs DTC144EE |
| DTC144EKAP | Micro Commercial Components | Check for Price | Small Signal Bipolar Transistor, 1-Element, NPN, Silicon, SOT-23, 3 PIN | DTC144EETL vs DTC144EKAP |
| DTC144EKAT246 | ROHM Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23, 3 PIN | DTC144EETL vs DTC144EKAT246 |
DTC144EETL Frequently Asked Questions (FAQ)
-
A good PCB layout for the DTC144EETL involves placing the device near the power source, using a solid ground plane, and minimizing trace lengths to reduce noise and EMI.
-
To ensure proper biasing, connect the EN pin to a voltage source (e.g., VCC) through a resistor, and connect the VIN pin to a stable voltage source (e.g., 5V).
-
The DTC144EETL can operate safely within a temperature range of -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance.
-
To prevent ESD damage, handle the device by the body or pins, use an anti-static wrist strap, and store the device in an anti-static bag or container.
-
Store the DTC144EETL in a cool, dry place (20°C to 30°C, 60% RH or less) away from direct sunlight, moisture, and contaminants.
