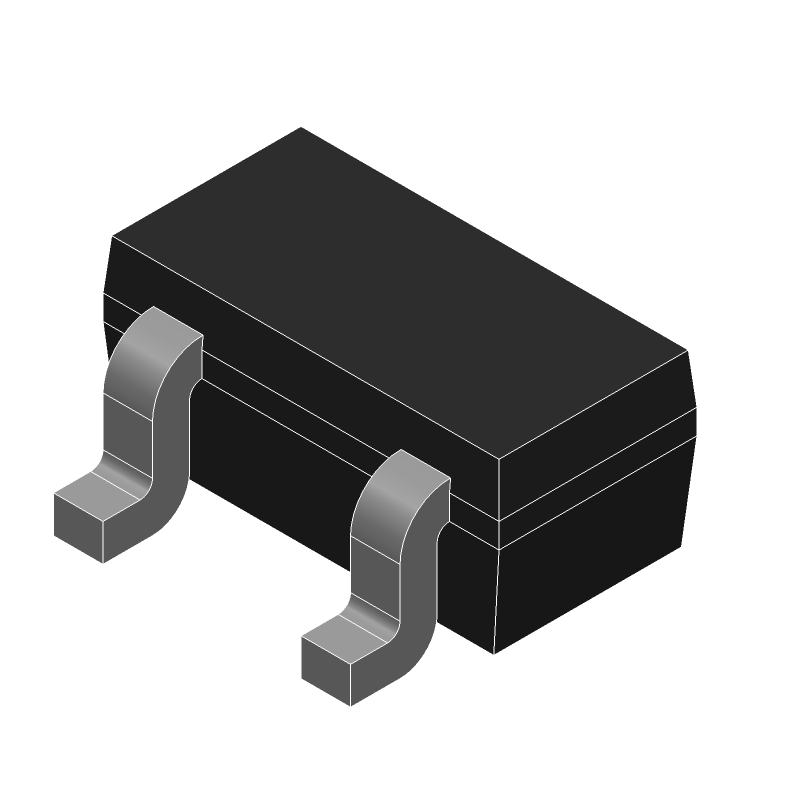

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DTC143ZETL by ROHM Semiconductor
Results Overview of DTC143ZETL by ROHM Semiconductor
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DTC143ZETL Information
DTC143ZETL by ROHM Semiconductor is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for DTC143ZETL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
40P2983
|
Newark | Transistor, Digital Transistor Polarity:Single Npn, Collector Emitter Voltage V(Br)Ceo:50V, Continuous Collector Current Ic:100Ma, Base Input Resistor R1:4.7Kohm, Base-Emitter Resistor R2:47Kohm, Resistor Ratio, R1/R2:-, Rf Rohs Compliant: Yes |Rohm DTC143ZETL RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Bulk | 2859 |
|
$0.0400 / $0.2300 | Buy Now |
|
DISTI #
DTC143ZETLCT-ND
|
DigiKey | TRANS PREBIAS NPN 50V 0.1A EMT3 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
65731 In Stock |
|
$0.0404 / $0.3200 | Buy Now |
|
DISTI #
755-DTC143ZETL
|
Mouser Electronics | Digital Transistors NPN 50V 100MA SOT-416 RoHS: Compliant | 23025 |
|
$0.0430 / $0.2800 | Buy Now |
|
DISTI #
V72:2272_18336113
|
Arrow Electronics | Trans Digital BJT NPN 50V 0.1A 150mW 3-Pin EMT T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1623 Container: Cut Strips | Americas - 82 |
|
$0.0160 / $0.0442 | Buy Now |
|
DISTI #
76912216
|
Verical | Trans Digital BJT NPN 50V 0.1A 150mW 3-Pin EMT T/R RoHS: Compliant Min Qty: 1137 Package Multiple: 1 Date Code: 2301 | Americas - 115956 |
|
$0.0579 / $0.0643 | Buy Now |
|
DISTI #
68457717
|
Verical | Trans Digital BJT NPN 50V 0.1A 150mW 3-Pin EMT T/R RoHS: Compliant Min Qty: 1374 Package Multiple: 1 Date Code: 2249 | Americas - 5963 |
|
$0.0224 | Buy Now |
|
|
Bristol Electronics | 1127 |
|
RFQ | ||
|
|
Quest Components | PRE-BIASED "DIGITAL" TRANSISTOR,50V V(BR)CEO,100MA I(C),SOT-416 | 92764 |
|
$0.0540 / $0.3600 | Buy Now |
|
|
Quest Components | PRE-BIASED "DIGITAL" TRANSISTOR,50V V(BR)CEO,100MA I(C),SOT-416 | 3733 |
|
$0.0624 / $0.2080 | Buy Now |
|
|
Quest Components | PRE-BIASED "DIGITAL" TRANSISTOR,50V V(BR)CEO,100MA I(C),SOT-416 | 901 |
|
$0.0624 / $0.2080 | Buy Now |
Part Details for DTC143ZETL
DTC143ZETL CAD Models
DTC143ZETL Part Data Attributes
|
|
DTC143ZETL
ROHM Semiconductor
Buy Now
Datasheet
|
Compare Parts:
DTC143ZETL
ROHM Semiconductor
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, EMT3, 3 PIN
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ROHM CO LTD | |
| Part Package Code | SC-75A | |
| Package Description | ROHS COMPLIANT, EMT3, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.75 | |
| Factory Lead Time | 18 Weeks | |
| Samacsys Manufacturer | ROHM Semiconductor | |
| Additional Feature | BUILT-IN BIAS RESISTOR RATIO IS 10 | |
| Collector Current-Max (IC) | 0.1 A | |
| Collector-Emitter Voltage-Max | 50 V | |
| Configuration | SINGLE WITH BUILT-IN RESISTOR | |
| DC Current Gain-Min (hFE) | 80 | |
| JESD-30 Code | R-PDSO-G3 | |
| JESD-609 Code | e1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | NPN | |
| Power Dissipation Ambient-Max | 0.15 W | |
| Power Dissipation-Max (Abs) | 0.15 W | |
| Qualification Status | Not Qualified | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON | |
| Transition Frequency-Nom (fT) | 250 MHz | |
| VCEsat-Max | 0.3 V |
Alternate Parts for DTC143ZETL
This table gives cross-reference parts and alternative options found for DTC143ZETL. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DTC143ZETL, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DTC143ZE | Secos Corporation | Check for Price | Small Signal Bipolar Transistor | DTC143ZETL vs DTC143ZE |
| DTC143ZE | ROHM Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, | DTC143ZETL vs DTC143ZE |
| DTC143ZE | Tak Cheong Electronics (Holdings) Co Ltd | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, GREEN, SC-75A, 3 PIN | DTC143ZETL vs DTC143ZE |
| DTC143ZE-TL | ROHM Semiconductor | Check for Price | Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, ROHS COMPLIANT, EMT3, 3 PIN | DTC143ZETL vs DTC143ZE-TL |
