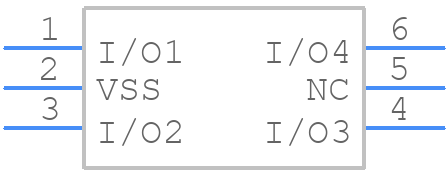

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DT2042-04SO-7 by Diodes Incorporated
Results Overview of DT2042-04SO-7 by Diodes Incorporated
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
DT2042-04SO-7 Information
DT2042-04SO-7 by Diodes Incorporated is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DT2042-04SO-7
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AK8977
|
Newark | Esd Prot Diode, 5.5V, Sot-26, 6Pins Rohs Compliant: Yes |Diodes Inc. DT2042-04SO-7 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2255 |
|
$0.1700 / $0.4400 | Buy Now |
|
DISTI #
DT2042-04SO-7DICT-ND
|
DigiKey | TVS DIODE 5.5VWM 10.5VC SOT26 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
80806 In Stock |
|
$0.0860 / $0.3900 | Buy Now |
|
DISTI #
DT2042-04SO-7
|
Avnet Americas | ESD Protection Device, 10.5 V, SOT-26, 6 Pins, 5.5 V, 300 mW, 1.5 pF - Tape and Reel (Alt: DT2042-04SO-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.0707 / $0.0721 | Buy Now |
|
DISTI #
621-DT2042-04SO-7
|
Mouser Electronics | ESD Protection Diodes / TVS Diodes 4-Ch Low Cap TVS 1.2pF 10A 300mW RoHS: Compliant | 2858 |
|
$0.0860 / $0.3900 | Buy Now |
|
DISTI #
70550281
|
RS | 4-Ch Low Cap. 5V TVS Diode Array SOT26 Min Qty: 50 Package Multiple: 1 Container: Bulk | 0 |
|
$0.2100 | RFQ |
|
DISTI #
DT2042-04SO-7
|
TME | Diode: TVS array, 6V, 10A, SOT23-6, Ch: 4 Min Qty: 1 | 0 |
|
$0.0910 / $0.4920 | RFQ |
|
DISTI #
DT2042-04SO-7
|
IBS Electronics | 4-CH LOW CAP. 5V TVS DIODE ARRAY SOT26 | DIODES INC DT2042-04SO-7 Min Qty: 1 Package Multiple: 1 | 1271 |
|
$0.2301 / $0.4940 | Buy Now |
|
DISTI #
DT2042-04SO-7
|
Avnet Silica | ESD Protection Device 105 V SOT26 6 Pins 55 V 300 mW 15 pF (Alt: DT2042-04SO-7) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Vyrian | Diodes | 33690 |
|
RFQ |
Part Details for DT2042-04SO-7
DT2042-04SO-7 CAD Models
DT2042-04SO-7 Part Data Attributes
|
|
DT2042-04SO-7
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
DT2042-04SO-7
Diodes Incorporated
Trans Voltage Suppressor Diode, 105W, 5.5V V(RWM), Unidirectional, 1 Element, Silicon,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | DIODES INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.50 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Diodes Incorporated | |
| Breakdown Voltage-Max | 9 V | |
| Breakdown Voltage-Min | 6 V | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE | |
| JESD-30 Code | R-PDSO-G6 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Peak Rev Power Dis-Max | 105 W | |
| Number of Elements | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity | UNIDIRECTIONAL | |
| Power Dissipation-Max | 0.3 W | |
| Reference Standard | IEC-61000-4-5 | |
| Rep Pk Reverse Voltage-Max | 5.5 V | |
| Surface Mount | YES | |
| Technology | AVALANCHE | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
