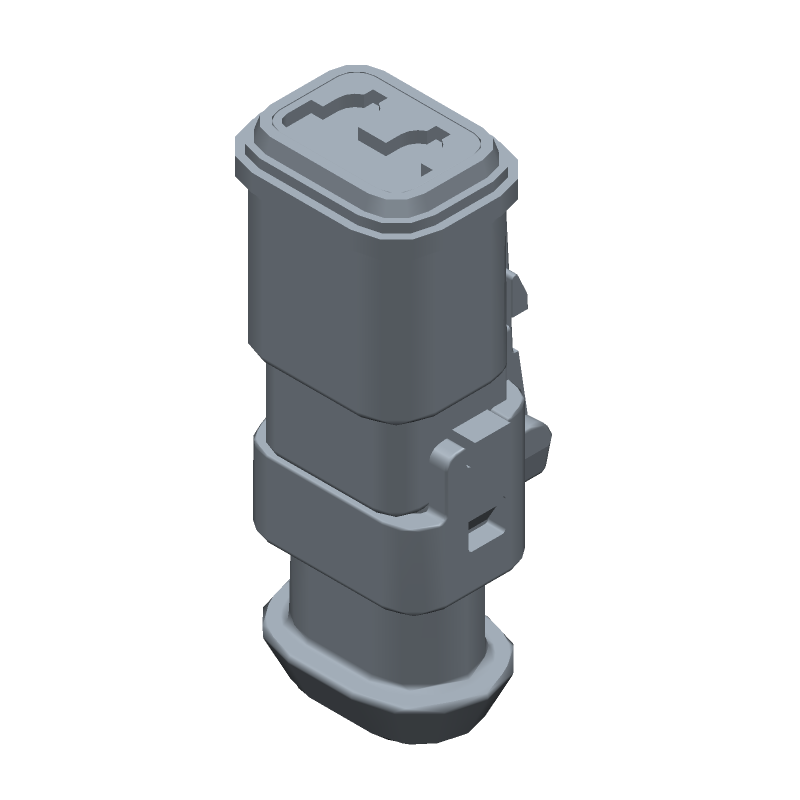

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DT06-2S-TE81 by TE Connectivity
Results Overview of DT06-2S-TE81 by TE Connectivity
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Computing and Data Storage
Electronic Manufacturing
DT06-2S-TE81 Information
DT06-2S-TE81 by TE Connectivity is a Combination Line Connector.
Combination Line Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for DT06-2S-TE81
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1734-DT06-2S-TE81-ND
|
DigiKey | CONN PLUG HSG 2POS Min Qty: 1 Lead time: 24 Weeks Container: Bag |
7985 In Stock |
|
$1.1418 / $1.9000 | Buy Now |
|
DISTI #
571-DT06-2S-TE81
|
Mouser Electronics | Automotive Connectors DT06-2S-TE81 | 0 |
|
$1.1400 | Order Now |
|
|
TE Connectivity | DT06-2S-TE81, PLG, 2P, GRY, E, SNAPXCAP Number of Positions: 2 Connector & Housing Type: Housing for Female Terminals Mating Pin Diameter: 1.55 mm Mating Pin Diameter: .061 in Connector System: Wire-to-Wire Deutsch Dt Connectors With Snap Cap | 2 Housing for Female Terminals 1.55 mm .061" | Part Number: DT06-2S-TE81 | Internal Number: 2-2303815-1 | TE Connectivity RoHS: Compliant Min Qty: 1 | 1009 |
|
$0.9900 / $2.4400 | Buy Now |
Part Details for DT06-2S-TE81
DT06-2S-TE81 CAD Models
DT06-2S-TE81 Part Data Attributes
|
|
DT06-2S-TE81
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
DT06-2S-TE81
TE Connectivity
Combination Line Connector
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.30 | |
| Samacsys Manufacturer | TE Connectivity | |
| Body Breadth | 0.683 inch | |
| Body Depth | 0.621 inch | |
| Body Length | 1.661 inch | |
| Body/Shell Style | PLUG | |
| Connector Type | COMBINATION LINE CONNECTOR | |
| Contact Finish Mating | NOT APPLICABLE | |
| Contact Gender | FEMALE | |
| Contact Material | NOT APPLICABLE | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| EMI Shielded | NO | |
| Empty Shell | YES | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulator Material | GLASS FILLED POLYAMIDE | |
| MIL Conformance | NO | |
| Mains Connector Rating | 13A | |
| Mixed Contacts | NO | |
| Mounting Option 2 | W/STRAIN RELIEF | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| Panel Mount | NO | |
| Polarization Key | POLARIZED | |
| Rated Current (Signal) | 13 A | |
| Rated Voltage | 250 V | |
| Reference Standard | UL | |
| Terminal Pitch | 5.46 mm | |
| Total Number of Contacts | 2 | |
| UL Flammability Code | 94V-0 |
DT06-2S-TE81 Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals of DT06-2S-TE81 is 0.5-0.8 Nm (4.4-7.0 in-lbs).
-
Yes, the DT06-2S-TE81 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
-
The DT06-2S-TE81 has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating in outdoor environments.
-
The DT06-2S-TE81 has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
-
While the DT06-2S-TE81 is designed for 24 AWG wire, it can accommodate wire sizes between 20 AWG and 26 AWG. However, it's essential to ensure the wire size and insulation meet the connector's specifications to maintain reliable connections.
