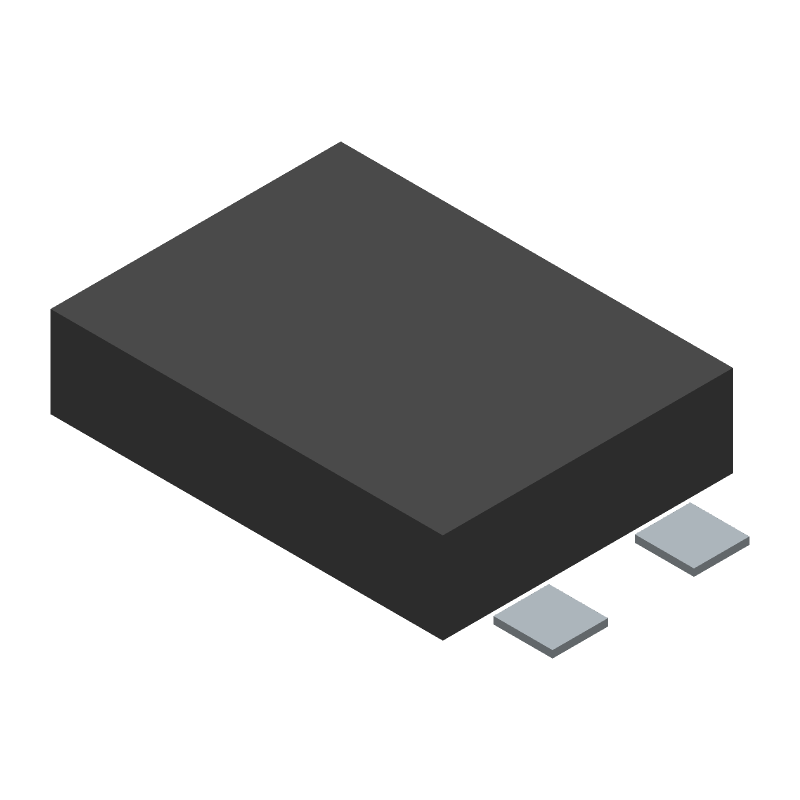

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DST10100S by Littelfuse Inc
Results Overview of DST10100S by Littelfuse Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DST10100S Information
DST10100S by Littelfuse Inc is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DST10100S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK5674
|
Newark | Schottky Rectifier, 100V, To-277B, Repetitive Peak Reverse Voltage:100V, Average Forward Current:10A, Diode Configuration:Single Dual Anode, Diode Case Style:To-277B, No. Of Pins:3Pins, Forward Voltage Max:700Mv, Product Range:- Rohs Compliant: Yes |Littelfuse DST10100S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 18265 |
|
$0.3890 | Buy Now |
|
DISTI #
34AC2880
|
Newark | 100V 10A Ultralow Schottky Dsul _To-277B/ Tr Rohs Compliant: Yes |Littelfuse DST10100S RoHS: Compliant Min Qty: 20000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.4660 | Buy Now |
|
DISTI #
F7418CT-ND
|
DigiKey | DIODE SCHOTTKY 100V 10A TO277B Min Qty: 1 Lead time: 21 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR), Tape & Reel (TR) |
79828 In Stock |
|
$0.3716 / $1.7500 | Buy Now |
|
DISTI #
576-DST10100S
|
Mouser Electronics | Schottky Diodes & Rectifiers 100V 10A RoHS: Compliant | 2237 |
|
$0.4370 / $1.3900 | Buy Now |
|
DISTI #
V72:2272_16265736
|
Arrow Electronics | Diode Schottky 100V 10A 3-Pin(2+Tab) TO-277B T/R Min Qty: 1 Package Multiple: 1 Lead time: 21 Weeks Date Code: 1850 Container: Cut Strips | Americas - 24 |
|
$0.4116 / $0.7348 | Buy Now |
|
DISTI #
75576808
|
RS | 100V 10A Ultralow Schottky DSUL _TO-277B Min Qty: 20000 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$0.8900 / $0.9700 | RFQ |
|
DISTI #
86233119
|
Verical | Diode Schottky 100V 10A 3-Pin(2+Tab) TO-277B T/R Min Qty: 129 Package Multiple: 1 | Americas - 18265 |
|
$0.5238 / $0.6352 | Buy Now |
|
DISTI #
DST10100S
|
TTI | Schottky Diodes & Rectifiers 100V 10A RoHS: Compliant Min Qty: 20000 Package Multiple: 5000 Container: Reel | Americas - 0 |
|
$0.4270 | Buy Now |
Part Details for DST10100S
DST10100S CAD Models
DST10100S Part Data Attributes
|
|
DST10100S
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
DST10100S
Littelfuse Inc
Rectifier Diode, Schottky, 1 Phase, 1 Element, 100V V(RRM), Silicon, TO-277B,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Date Of Intro | 2016-02-16 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | FREE WHEELING DIODE | |
| Application | GENERAL PURPOSE | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 0.7 V | |
| JEDEC-95 Code | TO-277B | |
| JESD-30 Code | R-PDSO-F3 | |
| Non-rep Pk Forward Current-Max | 150 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Current-Max | 10 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Rep Pk Reverse Voltage-Max | 100 V | |
| Reverse Current-Max | 250 µA | |
| Reverse Test Voltage | 100 V | |
| Surface Mount | YES | |
| Technology | SCHOTTKY | |
| Terminal Form | FLAT | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
Alternate Parts for DST10100S
This table gives cross-reference parts and alternative options found for DST10100S. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DST10100S, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| SS10PH10-M3/86A | Vishay Semiconductors | Check for Price | DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-277A, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMPC, 3 PIN, Rectifier Diode | DST10100S vs SS10PH10-M3/86A |
| SS10PH10-M3/87A | Vishay Semiconductors | Check for Price | DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-277A, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMPC, 3 PIN, Rectifier Diode | DST10100S vs SS10PH10-M3/87A |
DST10100S Frequently Asked Questions (FAQ)
-
For optimal thermal performance, it is recommended to have a large copper pad underneath the device, connected to a thermal relief pattern. This helps to dissipate heat efficiently. Additionally, keeping the PCB layer stack-up symmetrical and using thermal vias can further improve thermal performance.
-
To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads, and use a gentle touch to avoid damaging the device. It's also recommended to use a soldering flux to reduce oxidation and improve wetting.
-
For high-reliability applications, consider the device's operating temperature range, power rating, and derating. Ensure that the device is operated within its specified ratings, and consider using redundancy or fault-tolerant designs to mitigate single-point failures. Additionally, follow proper PCB design and manufacturing guidelines to minimize the risk of defects.
-
The DST10100S is rated for a maximum voltage of 100V. While it can be used in high-voltage applications, it's essential to ensure that the device is properly derated and that the PCB design can withstand the high voltage. Additionally, consider using voltage-transient protection devices to protect the DST10100S from voltage spikes and surges.
-
To troubleshoot issues with the DST10100S, start by verifying the device's operating conditions, including voltage, current, and temperature. Check for signs of physical damage, such as cracks or burn marks. Use a multimeter to measure voltage and current, and consider using a thermal imaging camera to detect thermal anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
