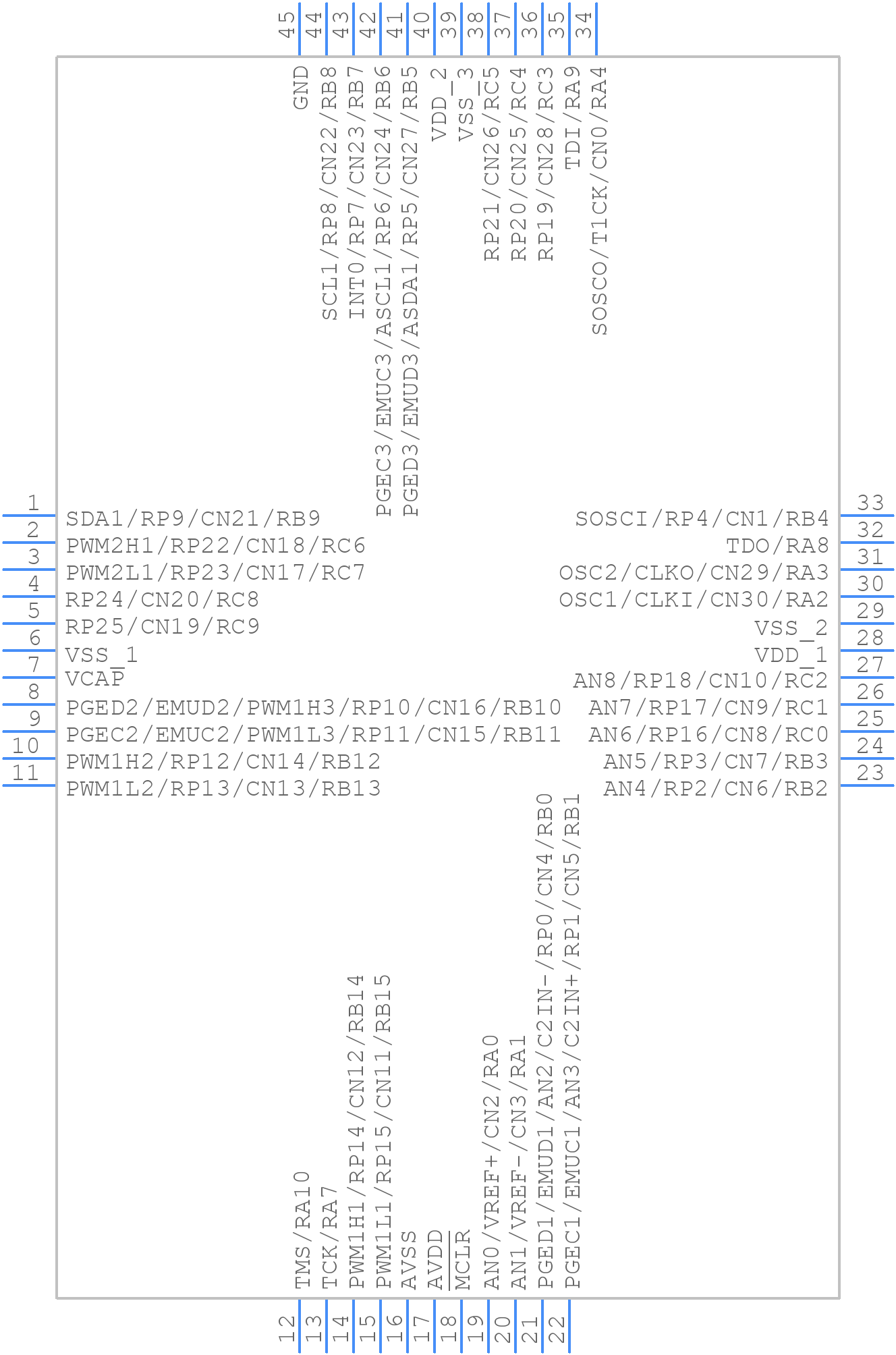

Part Symbol
-

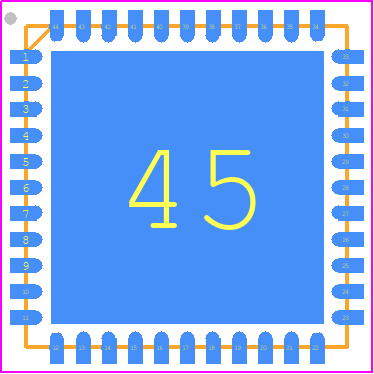

Footprint
-

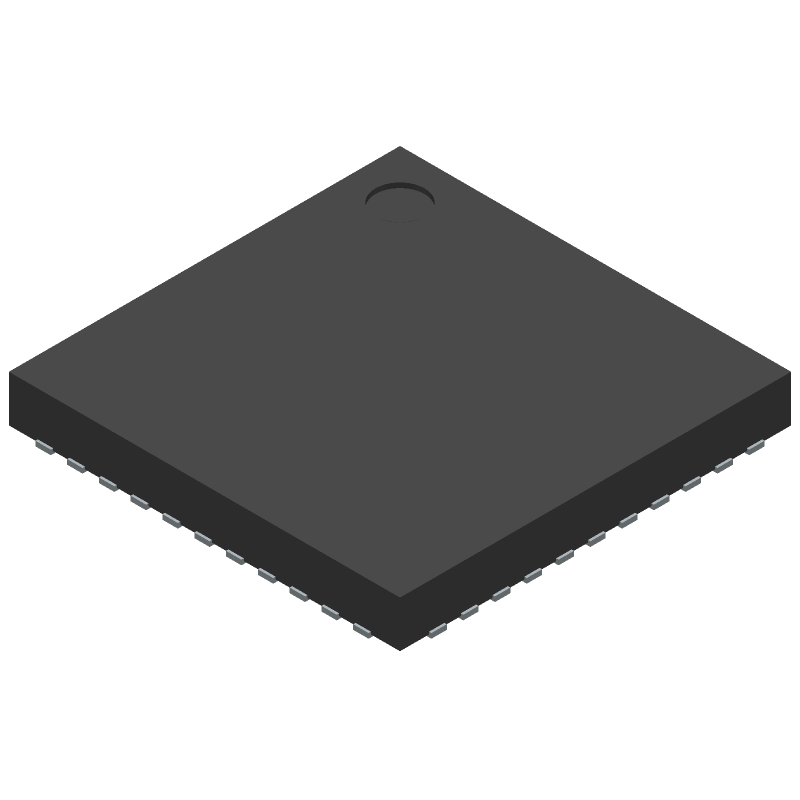

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DSPIC33FJ32MC204-I/ML by Microchip Technology Inc
Results Overview of DSPIC33FJ32MC204-I/ML by Microchip Technology Inc
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
DSPIC33FJ32MC204-I/ML Information
DSPIC33FJ32MC204-I/ML by Microchip Technology Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for DSPIC33FJ32MC204-I/ML
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
39M8196
|
Newark | Digital Signal Controller-Dsc, 16 Bit, 32Kb, 40Mhz, 3.6V Qfn-44, Product Range:Dspic33F Series, Core Frequency:40Mhz, Flash Memory Size:32Kb, No. Of I/O S:35I/O S, Embedded Interface Type:I2C, Spi, Uart, Core Supply Voltage:2.75V Rohs Compliant: Yes |Microchip DSPIC33FJ32MC204-I/ML RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 118 |
|
$1.2500 | Buy Now |
|
DISTI #
DSPIC33FJ32MC204-I/ML-ND
|
DigiKey | IC MCU 16BIT 32KB FLASH 44QFN Min Qty: 1 Lead time: 6 Weeks Container: Tube |
180 In Stock |
|
$4.4000 / $5.2900 | Buy Now |
|
DISTI #
39M8196
|
Avnet Americas | MCU 16-bit dSPIC33 dsPIC RISC 32KB Flash 3.3V 44-Pin QFN EP Tube - Bulk (Alt: 39M8196) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 7 Weeks, 1 Days Container: Bulk | 118 Partner Stock |
|
$4.5800 | Buy Now |
|
DISTI #
DSPIC33FJ32MC204-I/ML
|
Avnet Americas | MCU 16-bit dSPIC33 dsPIC RISC 32KB Flash 3.3V 44-Pin QFN EP Tube - Rail/Tube (Alt: DSPIC33FJ32MC204-I/ML) RoHS: Compliant Min Qty: 135 Package Multiple: 45 Lead time: 6 Weeks, 0 Days Container: Tube | 0 |
|
$4.4000 / $5.2900 | Buy Now |
|
DISTI #
579-DSPICJ32MC204IML
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC 16B DSC 44LD 32KB FlashMotor40 RoHS: Compliant | 141 |
|
$4.4000 / $5.2900 | Buy Now |
|
DISTI #
70046558
|
RS | 16-Bit DSC, 44LD,32KB Flash, MOTOR,40 MIPS, nanoWatt Min Qty: 180 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$5.4000 / $6.3500 | RFQ |
|
|
Onlinecomponents.com | MCU - 16-bit dsPIC - 32KB Flash - 2KB RAM - -40°C to +85°C - 3.3V - 44-Pin QFN EP - Tube RoHS: Compliant | 720 Factory Stock |
|
$4.6200 / $6.7400 | Buy Now |
|
DISTI #
19264537
|
Verical | MCU 16-bit dsPIC RISC 32KB Flash 3.3V 44-Pin QFN EP Tube RoHS: Compliant Min Qty: 40 Package Multiple: 1 | Americas - 118 |
|
$1.7507 / $1.8839 | Buy Now |
|
|
Bristol Electronics | 80 |
|
RFQ | ||
|
|
Quest Components | 64 |
|
$5.6832 / $9.2160 | Buy Now |
Part Details for DSPIC33FJ32MC204-I/ML
DSPIC33FJ32MC204-I/ML CAD Models
DSPIC33FJ32MC204-I/ML Part Data Attributes
|
|
DSPIC33FJ32MC204-I/ML
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
DSPIC33FJ32MC204-I/ML
Microchip Technology Inc
16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQCC44, 8 X 8 MM, LEAD FREE, PLASTIC, QFN-44
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | QFN | |
| Package Description | QFN-44 | |
| Pin Count | 44 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 7 Weeks, 1 Day | |
| Samacsys Manufacturer | Microchip | |
| Has ADC | YES | |
| Address Bus Width | ||
| Barrel Shifter | YES | |
| Bit Size | 16 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 40 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PQCC-N44 | |
| JESD-609 Code | e3 | |
| Length | 8 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 1 | |
| Number of External Interrupts | 3 | |
| Number of I/O Lines | 35 | |
| Number of Serial I/Os | 1 | |
| Number of Terminals | 44 | |
| Number of Timers | 5 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Equivalence Code | LCC44,.31SQ,25 | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (words) | 2048 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1 mm | |
| Speed | 40 MHz | |
| Supply Current-Max | 80 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 8 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, CONTROLLER |
Alternate Parts for DSPIC33FJ32MC204-I/ML
This table gives cross-reference parts and alternative options found for DSPIC33FJ32MC204-I/ML. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DSPIC33FJ32MC204-I/ML, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DSPIC33FJ32MC204-E/ML | Microchip Technology Inc | $5.4229 | 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PQCC44, 8 X 8 MM, LEAD FREE, PLASTIC, QFN-44 | DSPIC33FJ32MC204-I/ML vs DSPIC33FJ32MC204-E/ML |
DSPIC33FJ32MC204-I/ML Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the DSPIC33FJ32MC204-I/ML is 40 MIPS (million instructions per second).
-
The DSPIC33FJ32MC204-I/ML has 256 KB of flash memory.
-
The DSPIC33FJ32MC204-I/ML can operate at 3.3V, but not at 5V. The recommended operating voltage is 3.0V to 3.6V.
-
Yes, the DSPIC33FJ32MC204-I/ML has a built-in oscillator that can be used as a clock source.
-
The DSPIC33FJ32MC204-I/ML has 24 analog-to-digital converter (ADC) channels.
