Microcontrollers and Processors / Digital Signal Processors / DSPIC33FJ12GP202-I/SS
Datasheets
DSPIC33FJ12GP202-I/SS by: Microchip Technology Inc

16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28

Part Details for DSPIC33FJ12GP202-I/SS by Microchip Technology Inc

Results Overview of DSPIC33FJ12GP202-I/SS by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

DSPIC33FJ12GP202-I/SS Information

DSPIC33FJ12GP202-I/SS by Microchip Technology Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for DSPIC33FJ12GP202-I/SS

Part # Distributor Description Stock Price Buy
DISTI # 77M2330
Newark Digital Signal Controller-Dsc, 16 Bit, 12Kb, 40Mhz 3.6V Ssop-28, Product Range:Dspic33F Series, Core Frequency:40Mhz, Flash Memory Size:12Kb, No. Of I/O S:21I/O S, Embedded Interface Type:I2C, Jtag, Spi, Uart, Dsc Case Style:Ssop Rohs Compliant: Yes |Microchip DSPIC33FJ12GP202-I/SS RoHS: Compliant Min Qty: 188 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1 $3.4700
$3.4700 Buy Now
DISTI # DSPIC33FJ12GP202-I/SS-ND
DigiKey IC MCU 16BIT 12KB FLASH 28SSOP Min Qty: 188 Lead time: 7 Weeks Container: Tube Temporarily Out of Stock
  • 188 $3.4700
$3.4700 Buy Now
DISTI # DSPIC33FJ12GP202-I/SS
Avnet Americas MCU 16-bit dSPIC33 dsPIC RISC 12KB Flash 3.3V 28-Pin SSOP Tube - Rail/Tube (Alt: DSPIC33FJ12GP202-I/SS) RoHS: Compliant Min Qty: 47 Package Multiple: 1 Lead time: 7 Weeks, 0 Days Container: Tube 39
  • 1 $4.1600
  • 25 $3.8300
  • 100 $3.4700
$3.4700 / $4.1600 Buy Now
DISTI # 579-DSPIC332GP202ISS
Mouser Electronics Digital Signal Processors & Controllers - DSP, DSC 12KB Flash 1KB RAM21 I/O 16B nanoWatt RoHS: Compliant 0
  • 188 $3.4700
$3.4700 Order Now
DISTI # DSPIC33FJ12GP202-I/SS
Microchip Technology Inc 28 PIN, 12KB, FLASH, 1KB RAM, 40MIPS, 21 I/O, 16 BIT FAMILY, NANOWATT, SSOP, Projected EOL: 2034-12-18 COO: Philippines, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 7 Weeks, 0 Days Container: Tube 1410

Alternates Available
  • 1 $4.1600
  • 25 $3.8300
  • 100 $3.4700
  • 1,000 $3.2000
  • 5,000 $3.0400
$3.0400 / $4.1600 Buy Now
DISTI # 70413853
RS dsPIC33FJ12GP202-I/SS,16bit dsPIC Microcontroller,40MIPS,12kb Flash,28-Pin SSOP Min Qty: 235 Package Multiple: 1 Lead time: 19 Weeks, 0 Days Container: Bulk 0
  • 235 $3.3300
$3.3300 RFQ
Onlinecomponents.com Microcontroller - dsPIC 33F - 16-Bit - 40 MIPs - 21 I/O - 12KB (12K x 8) FLASH Program Memory - 1K x 8 RAM - 3 to 3.6V Supply - 28-SSOP. RoHS: Compliant 1410 Factory Stock
  • 47 $5.3200
  • 94 $3.9900
  • 141 $3.7200
  • 188 $3.6500
$3.6500 / $5.3200 Buy Now
DISTI # 33FJ12GP202-I/SS
TME IC: dsPIC microcontroller, 12kB, 1kBSRAM, SSOP28, 3÷3.6VDC, DSPIC Min Qty: 1 0
  • 1 $4.3800
  • 5 $4.2300
  • 25 $3.9500
  • 94 $3.6700
$3.6700 / $4.3800 RFQ
NAC 12KB, Flash, 1KB RAM, 40MIPS, 21I/O, 16-bit Family,nanoWatt - Package: 28 SSOP .209in TUBE RoHS: Compliant Min Qty: 94 Package Multiple: 47 Container: Tube 0
  • 1 $4.3400
  • 100 $3.9300
  • 500 $3.6900
  • 1,000 $3.6000
$3.6000 / $4.3400 Buy Now
DISTI # DSPIC33FJ12GP202-I/SS
Avnet Silica MCU 16bit dSPIC33 dsPIC RISC 12KB Flash 33V 28Pin SSOP Tube (Alt: DSPIC33FJ12GP202-I/SS) RoHS: Compliant Min Qty: 47 Package Multiple: 47 Lead time: 9 Weeks, 0 Days Silica - 0
Buy Now
Master Electronics Microcontroller - dsPIC 33F - 16-Bit - 40 MIPs - 21 I/O - 12KB (12K x 8) FLASH Program Memory - 1K x 8 RAM - 3 to 3.6V Supply - 28-SSOP. RoHS: Compliant 1410 Factory Stock
  • 47 $5.3200
  • 94 $3.9900
  • 141 $3.7200
  • 188 $3.6500
$3.6500 / $5.3200 Buy Now

Part Details for DSPIC33FJ12GP202-I/SS

DSPIC33FJ12GP202-I/SS CAD Models

  • Part Symbol

    Part Symbol

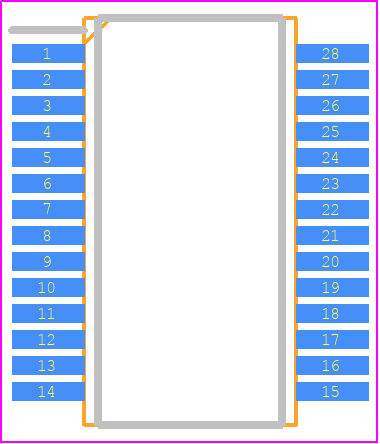

  • Footprint

    footprint

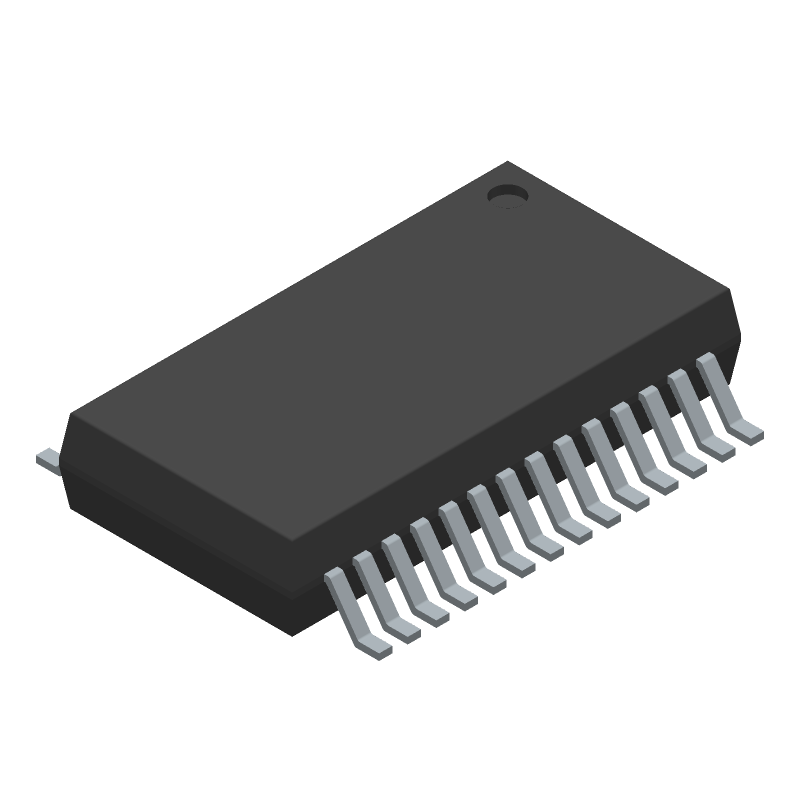

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DSPIC33FJ12GP202-I/SS Part Data Attributes

Parametric Data
DSPIC33FJ12GP202-I/SS Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
DSPIC33FJ12GP202-I/SS Microchip Technology Inc 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDSO28, 5.30 MM, LEAD FREE, PLASTIC, SSOP-28
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SSOP
Package Description 5.30 MM, LEAD FREE, PLASTIC, SSOP-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 7 Weeks
Samacsys Manufacturer Microchip
Address Bus Width
Barrel Shifter YES
Bit Size 16
Clock Frequency-Max 40 MHz
External Data Bus Width
Format FLOATING POINT
Internal Bus Architecture MULTIPLE
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 10.2 mm
Moisture Sensitivity Level 2
Number of Terminals 28
On Chip Program ROM Width 24
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP28,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
ROM Programmability FLASH
Seated Height-Max 2 mm
Supply Current-Max 90 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 5.3 mm
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, CONTROLLER

DSPIC33FJ12GP202-I/SS Frequently Asked Questions (FAQ)

  • The maximum clock frequency for the DSPIC33FJ12GP202-I/SS is 40 MIPS (million instructions per second) at 3.0-3.6V, and 30 MIPS at 2.5-3.0V.

  • The DSPIC33FJ12GP202-I/SS has 12 KB of flash memory.

  • Yes, the DSPIC33FJ12GP202-I/SS has a built-in motor control peripheral (MCP) that supports various motor control algorithms, making it suitable for motor control applications.

  • Yes, the DSPIC33FJ12GP202-I/SS has 10-bit, 13-channel ADCs with a conversion rate of up to 500 ksps (kilosamples per second).

  • Yes, the DSPIC33FJ12GP202-I/SS has built-in peripherals for UART, SPI, and I2C communication protocols, making it suitable for a wide range of communication applications.
