Microcontrollers and Processors / Digital Signal Processors / DSPIC33FJ12GP202-I/SO
Datasheets
DSPIC33FJ12GP202-I/SO by: Microchip Technology Inc

16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28

Part Details for DSPIC33FJ12GP202-I/SO by Microchip Technology Inc

Results Overview of DSPIC33FJ12GP202-I/SO by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

DSPIC33FJ12GP202-I/SO Information

DSPIC33FJ12GP202-I/SO by Microchip Technology Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for DSPIC33FJ12GP202-I/SO

Part # Distributor Description Stock Price Buy
DISTI # 88K3893
Newark Ic, Dsc, 16Bit, 12Kb, 40Mhz 3.6V Soic-28, Product Range:Dspic33F Series, Core Frequency:40Mhz, Flash Memory Size:12Kb, No. Of I/O S:21I/O S, Embedded Interface Type:I2C, Spi, Uart, Core Supply Voltage:2.75V, Dsc Case Style:Soic Rohs Compliant: Yes |Microchip DSPIC33FJ12GP202-I/SO RoHS: Compliant Min Qty: 189 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 108 $3.6900
  • 270 $3.5000
$3.5000 / $3.6900 Buy Now
DISTI # DSPIC33FJ12GP202-I/SO-ND
DigiKey IC MCU 16BIT 12KB FLASH 28SOIC Min Qty: 1 Lead time: 5 Weeks Container: Tube 78
In Stock
  • 1 $4.2300
  • 25 $3.8700
  • 100 $3.5000
$3.5000 / $4.2300 Buy Now
DISTI # DSPIC33FJ12GP202-I/SO
Avnet Americas MCU 16-bit dSPIC33 dsPIC RISC 12KB Flash 3.3V 28-Pin SOIC W Tube - Rail/Tube (Alt: DSPIC33FJ12GP202-I/SO) RoHS: Compliant Min Qty: 189 Package Multiple: 27 Lead time: 5 Weeks, 0 Days Container: Tube 0
  • 1 $4.2300
  • 25 $3.8700
  • 100 $3.5000
$3.5000 / $4.2300 Buy Now
DISTI # 579-DSPICJ12GP202ISO
Mouser Electronics Digital Signal Processors & Controllers - DSP, DSC 212KB Flash 1024BRAM 40MIPS RoHS: Compliant 100
  • 1 $4.2300
  • 27 $3.8700
  • 108 $3.5000
$3.5000 / $4.2300 Buy Now
DISTI # V99:2348_06434557
Arrow Electronics MCU 16-bit dsPIC RISC 12KB Flash 3.3V 28-Pin SOIC W Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 1626 Americas - 9
  • 0 $3.8200
  • 1 $0.7268
$0.7268 / $3.8200 Buy Now
DISTI # DSPIC33FJ12GP202-I/SO
Microchip Technology Inc 16 bit MCU/DSP 28LD 40MIPS 12KB FLASH, SOIC, Projected EOL: 2034-05-17 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 5 Weeks, 0 Days Container: Tube 0

Alternates Available
  • 1 $4.2300
  • 25 $3.8700
  • 100 $3.5000
  • 1,000 $3.2300
  • 5,000 $3.0700
$3.0700 / $4.2300 Buy Now
DISTI # 70046429
RS DSP, 28-Pin, 12KB Flash, 1024 RAM, 21 I/O, 16-Bit, nanoWatt Min Qty: 243 Package Multiple: 1 Lead time: 19 Weeks, 0 Days Container: Bulk 0
  • 243 $5.0700
  • 1,215 $4.8200
  • 2,430 $4.5700
  • 4,860 $4.3100
$4.3100 / $5.0700 RFQ
Onlinecomponents.com MCU - 16-bit dsPIC - 12KB Flash - 1KB RAM - -40°C to +85°C - 3.3V - 28-Pin SOIC W - Tube RoHS: Compliant 21 In Stock
  • 5 $5.5400
  • 10 $5.4600
  • 25 $5.3800
  • 48 $5.3000
  • 95 $4.0100
  • 142 $3.7600
  • 189 $3.6800
$3.6800 / $5.5400 Buy Now
DISTI # 81421128
Verical MCU 16-bit dsPIC RISC 12KB Flash 3.3V 28-Pin SOIC W Tube RoHS: Compliant Min Qty: 10 Package Multiple: 5 Date Code: 2321 Americas - 20
  • 10 $7.0980
  • 25 $6.9940
  • 50 $6.8900
  • 95 $5.2130
$5.2130 / $7.0980 Buy Now
DISTI # 33FJ12GP202-I/SO
TME IC: dsPIC microcontroller, 12kB, 1kBSRAM, SO28-W, 3÷3.6VDC, DSPIC Min Qty: 1 0
  • 1 $4.4400
  • 5 $4.2900
  • 27 $4.0100
  • 108 $3.7200
$3.7200 / $4.4400 RFQ
DISTI # DSPIC33FJ12GP202-I/SO
IBS Electronics DSPIC33FJ12GP202-I/SO by Microchip is a 16-bit DSC with 40 MIPS performance, 12KB Flash, 1KB RAM, 2 UARTs, 2 SPI, 1 I2C, 5V operation, and 28-pin SOIC package, ideal for embedded control applications. Min Qty: 5 Package Multiple: 1 21
  • 5 $7.2020
  • 10 $7.0980
  • 25 $6.9940
  • 48 $6.8900
  • 95 $5.2130
  • 142 $4.8880
  • 189 $4.7840
$4.7840 / $7.2020 Buy Now
NAC 12KB, Flash, 1024bytes-RAM, 40MIPS, 21I/O, 16-bit Family,nanoWatt - Package: 28 SOIC .300in TUBE RoHS: Compliant Min Qty: 108 Package Multiple: 27 Container: Tube 0
  • 1 $4.3700
  • 100 $3.9600
  • 500 $3.7100
  • 1,000 $3.6200
$3.6200 / $4.3700 Buy Now
DISTI # DSPIC33FJ12GP202-I/SO
Avnet Silica MCU 16bit dSPIC33 dsPIC RISC 12KB Flash 33V 28Pin SOIC W Tube (Alt: DSPIC33FJ12GP202-I/SO) RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 7 Weeks, 0 Days Silica - 0
Buy Now
DISTI # DSPIC33FJ12GP202-I/SO
EBV Elektronik MCU 16bit dSPIC33 dsPIC RISC 12KB Flash 33V 28Pin SOIC W Tube (Alt: DSPIC33FJ12GP202-I/SO) RoHS: Compliant Min Qty: 27 Package Multiple: 27 Lead time: 6 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU - 16-bit dsPIC - 12KB Flash - 1KB RAM - -40°C to +85°C - 3.3V - 28-Pin SOIC W - Tube RoHS: Compliant 21 In Stock
  • 5 $5.5400
  • 10 $5.4600
  • 25 $5.3800
  • 48 $5.3000
  • 95 $4.0100
  • 142 $3.7600
  • 189 $3.6800
$3.6800 / $5.5400 Buy Now

Part Details for DSPIC33FJ12GP202-I/SO

DSPIC33FJ12GP202-I/SO CAD Models

  • Part Symbol

    Part Symbol

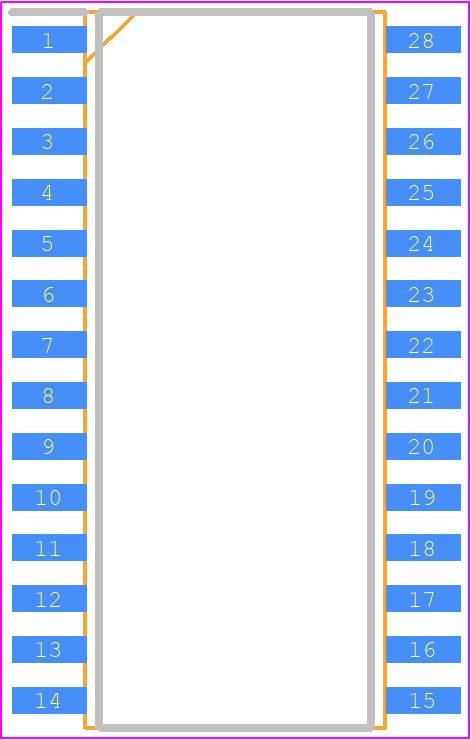

  • Footprint

    footprint

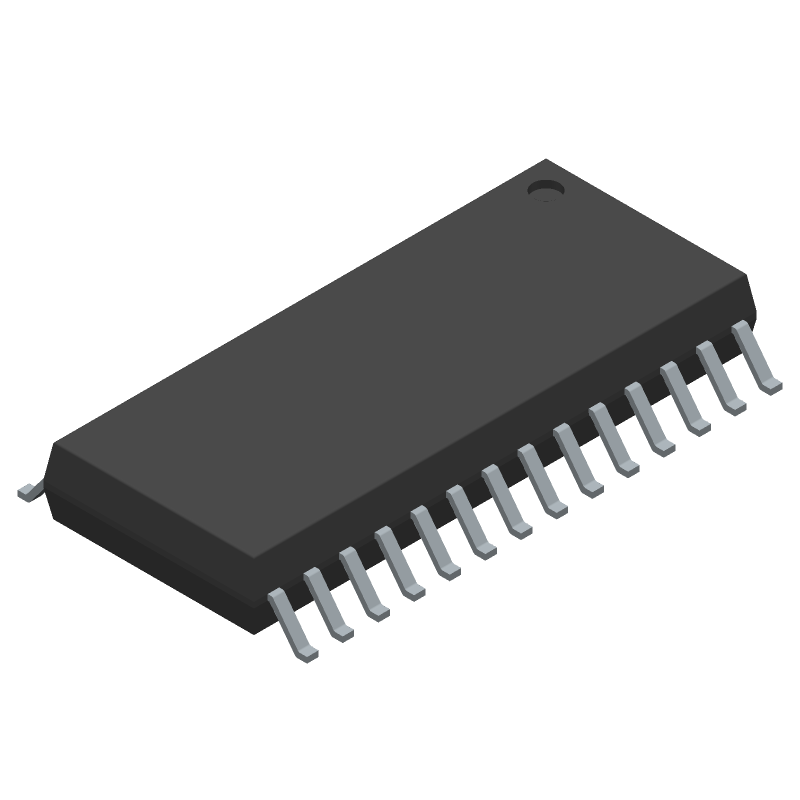

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DSPIC33FJ12GP202-I/SO Part Data Attributes

Parametric Data
DSPIC33FJ12GP202-I/SO Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
DSPIC33FJ12GP202-I/SO Microchip Technology Inc 16-BIT, FLASH, 40 MHz, MICROCONTROLLER, PDSO28, 7.50 MM, LEAD FREE, PLASTIC, SOIC-28
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Part Package Code SOIC
Package Description 7.50 MM, LEAD FREE, PLASTIC, SOIC-28
Pin Count 28
Reach Compliance Code compliant
ECCN Code 3A991.A.2
HTS Code 8542.31.00.01
Factory Lead Time 5 Weeks
Samacsys Manufacturer Microchip
Address Bus Width
Barrel Shifter YES
Bit Size 16
Clock Frequency-Max 40 MHz
External Data Bus Width
Format FLOATING POINT
Internal Bus Architecture MULTIPLE
JESD-30 Code R-PDSO-G28
JESD-609 Code e3
Length 17.9 mm
Moisture Sensitivity Level 1
Number of Terminals 28
On Chip Program ROM Width 24
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 250
Qualification Status Not Qualified
ROM Programmability FLASH
Seated Height-Max 2.65 mm
Supply Current-Max 90 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Width 7.5 mm
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, CONTROLLER

DSPIC33FJ12GP202-I/SO Related Parts

DSPIC33FJ12GP202-I/SO Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the DSPIC33FJ12GP202-I/SO is 40 MIPS (million instructions per second) at 3.0-3.6V.

  • The DSPIC33FJ12GP202-I/SO has 12 KB of flash memory.

  • The maximum operating temperature range of the DSPIC33FJ12GP202-I/SO is -40°C to +125°C.

  • Yes, the DSPIC33FJ12GP202-I/SO has a 10-bit, 12-channel Analog-to-Digital Converter (ADC).

  • Yes, the DSPIC33FJ12GP202-I/SO has a dedicated motor control PWM module, making it suitable for motor control applications.
