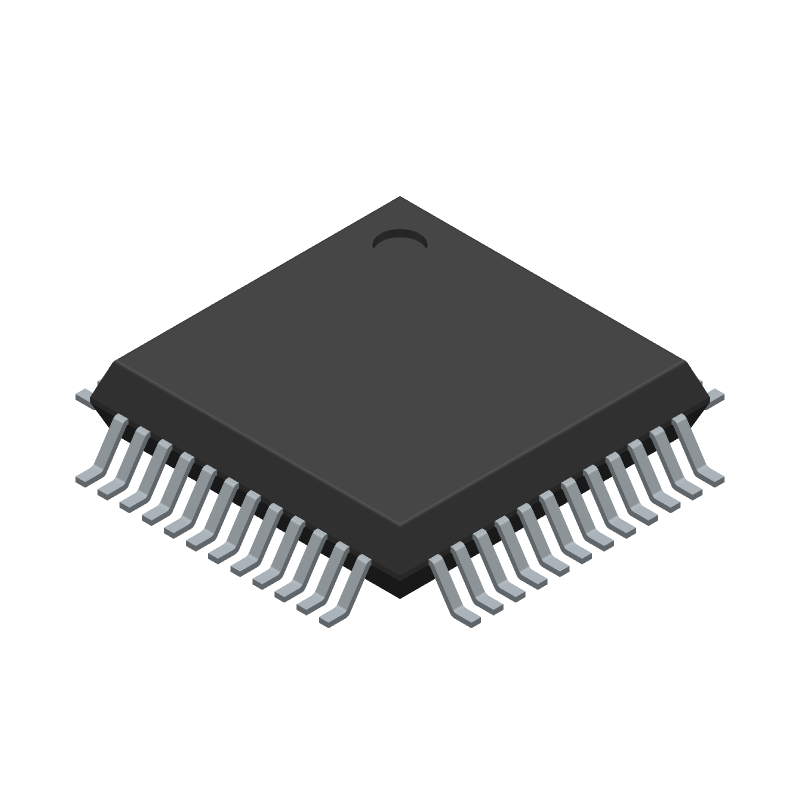

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DSPIC33CK64MP205-I/PT by Microchip Technology Inc
Results Overview of DSPIC33CK64MP205-I/PT by Microchip Technology Inc
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DSPIC33CK64MP205-I/PT Information
DSPIC33CK64MP205-I/PT by Microchip Technology Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for DSPIC33CK64MP205-I/PT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58AC0985
|
Newark | Dsc, 100Mhz, 64Kb, Tqfp-48, Product Range:Dspic33C, Core Frequency:100Mhz, Flash Memory Size:64Kb, No. Of I/O S:39I/O S, Embedded Interface Type:I2C, Spi, Uart, Core Supply Voltage:-, Dsc Case Style:Tqfp, No. Of Pins:48Pins Rohs Compliant: Yes |Microchip DSPIC33CK64MP205-I/PT RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.7000 | Buy Now |
|
DISTI #
DSPIC33CK64MP205-I/PT-ND
|
DigiKey | IC MCU 16BIT 64KB FLASH 48TQFP Min Qty: 1 Lead time: 20 Weeks Container: Tray |
113 In Stock |
|
$1.7000 / $2.0500 | Buy Now |
|
DISTI #
DSPIC33CK64MP205-I/PT
|
Avnet Americas | 16 BIT DSC, 64KB FLASH, 8KB RAM, 100MHZ, 28PIN, 3 OPAMP, 3 COMP, PTG - Trays (Alt: DSPIC33CK64MP205-I/PT) RoHS: Not Compliant Min Qty: 500 Package Multiple: 250 Lead time: 20 Weeks, 0 Days Container: Tray | 0 |
|
$1.7000 / $2.0500 | Buy Now |
|
DISTI #
579-PIC33CK64MP205I
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC 16 Bit DSC, 64KB Flash, 8KB RAM, 100MHz, 48Pin, 3 OpAmp, 3 Comp, PTG RoHS: Compliant | 774 |
|
$1.7000 / $2.0500 | Buy Now |
|
DISTI #
DSPIC33CK64MP205-I/PT
|
Microchip Technology Inc | 16 Bit DSC, 64KB Flash, 8KB RAM, 100MHz, 48Pin, 3 OpAmp, 3 Comp, PTG, TQFP, Projected EOL: 2044-05-22 COO: Philippines, Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 20 Weeks, 0 Days Container: Tray |
1250 Alternates Available |
|
$1.4800 / $2.0500 | Buy Now |
|
|
Onlinecomponents.com | MCU - 16-bit Digital Signal Controllers - 64KB Flash - 48-pin TQFP - 3.0 to 3.6V - DC to 100MIPS - 250 ps PWM Resolution - CAN FD - -40°C to +85°C RoHS: Compliant | 1000 Factory Stock |
|
$1.8000 / $2.6200 | Buy Now |
|
DISTI #
33CK64MP205-I/PT
|
TME | IC: dsPIC microcontroller, 64kB, 8kBSRAM, TQFP48, 3÷3.6VDC, DSPIC Min Qty: 1 | 0 |
|
$2.9400 / $3.6800 | RFQ |
|
|
NAC | 16 Bit DSC, 64KB Flash, 8KB RAM, 100MHz, 28Pin, 3 OpAmp, 3 Comp, PTG - Package: 48 TQFP 7x7x1mm TRAY RoHS: Compliant Min Qty: 250 Package Multiple: 250 Container: Tray | 0 |
|
$1.8000 / $2.2200 | Buy Now |
|
DISTI #
DSPIC33CK64MP205-I/PT
|
EBV Elektronik | 16 BIT DSC 64KB FLASH 8KB RAM 100MHZ 28PIN 3 OPAMP 3 COMP PTG (Alt: DSPIC33CK64MP205-I/PT) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 21 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Master Electronics | MCU - 16-bit Digital Signal Controllers - 64KB Flash - 48-pin TQFP - 3.0 to 3.6V - DC to 100MIPS - 250 ps PWM Resolution - CAN FD - -40°C to +85°C RoHS: Compliant | 1000 Factory Stock |
|
$1.8000 / $2.6200 | Buy Now |
Part Details for DSPIC33CK64MP205-I/PT
DSPIC33CK64MP205-I/PT CAD Models
DSPIC33CK64MP205-I/PT Part Data Attributes
|
|
DSPIC33CK64MP205-I/PT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
DSPIC33CK64MP205-I/PT
Microchip Technology Inc
Microcontroller
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | TQFP-48 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Address Bus Width | ||
| Barrel Shifter | YES | |
| Bit Size | 16 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 64 MHz | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 4 | |
| Number of External Interrupts | 4 | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 48 | |
| Number of Timers | 2 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TFQFP | |
| Package Equivalence Code | QFP48,.35SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (words) | 8192 | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 35 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, CONTROLLER |
Alternate Parts for DSPIC33CK64MP205-I/PT
This table gives cross-reference parts and alternative options found for DSPIC33CK64MP205-I/PT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DSPIC33CK64MP205-I/PT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DSPIC33CK64MP205-E/PT | Microchip Technology Inc | $2.4355 | Microcontroller | DSPIC33CK64MP205-I/PT vs DSPIC33CK64MP205-E/PT |
DSPIC33CK64MP205-I/PT Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the DSPIC33CK64MP205-I/PT is 100 MHz.
-
The DSPIC33CK64MP205-I/PT has 64 KB of flash memory.
-
Yes, the DSPIC33CK64MP205-I/PT can operate at 3.3V, as well as 2.5V and 1.8V.
-
Yes, the DSPIC33CK64MP205-I/PT has a built-in internal oscillator that can be used as a clock source.
-
The maximum current consumption of the DSPIC33CK64MP205-I/PT is approximately 25 mA at 100 MHz and 3.3V.
