Microcontrollers and Processors / Digital Signal Processors / DSPIC33CK256MP505T-I/M4
Datasheets
DSPIC33CK256MP505T-I/M4 by: Microchip Technology Inc

dsPIC33C 100MHz 256K Dual Panel Flash 24K RAM CAN-FD OpAmps 12bit ADCs PWM

Part Details for DSPIC33CK256MP505T-I/M4 by Microchip Technology Inc

Results Overview of DSPIC33CK256MP505T-I/M4 by Microchip Technology Inc

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

DSPIC33CK256MP505T-I/M4 Information

DSPIC33CK256MP505T-I/M4 by Microchip Technology Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.

Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.

Price & Stock for DSPIC33CK256MP505T-I/M4

Part # Distributor Description Stock Price Buy
DISTI # 65AC2301
Newark Dsc, 100Mhz, 256Kb, Uqfn-Ep-48, Product Range:Dspic33C, Core Frequency:100Mhz, Flash Memory Size:256Kb, No. Of I/O S:39I/O S, Embedded Interface Type:Can, I2C, Spi, Uart, Core Supply Voltage:-, Dsc Case Style:Uqfn-Ep Rohs Compliant: Yes |Microchip DSPIC33CK256MP505T-I/M4 RoHS: Compliant Min Qty: 3300 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 3,300 $1.8600
$1.8600 Buy Now
DISTI # DSPIC33CK256MP505T-I/M4CT-ND
DigiKey IC MCU 16BIT 256KB FLASH 48UQFN Min Qty: 1 Lead time: 22 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 6521
In Stock
  • 1 $2.1900
  • 25 $1.9800
  • 100 $1.8000
  • 3,300 $1.8000
$1.8000 / $2.1900 Buy Now
DISTI # DSPIC33CK256MP505T-I/M4
Avnet Americas - Tape and Reel (Alt: DSPIC33CK256MP505T-I/M4) RoHS: Not Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 22 Weeks, 0 Days Container: Reel 0
  • 3,300 $1.9125
  • 6,600 $1.8817
  • 13,200 $1.8512
  • 19,800 $1.8206
  • 26,400 $1.7901
$1.7901 / $1.9125 Buy Now
DISTI # 579-256MP505TI/M4
Mouser Electronics Digital Signal Processors & Controllers - DSP, DSC 16 Bit DSC, 256KB Flash, 24KB RAM, 100MHz, 48Pin, 3 OpAmp, 3 Comp, PTG, CAN-FD RoHS: Compliant 1010
  • 1 $2.1900
  • 25 $1.9800
  • 100 $1.8000
  • 3,300 $1.7900
$1.7900 / $2.1900 Buy Now
DISTI # DSPIC33CK256MP505T-I/M4
Microchip Technology Inc 16 Bit DSC, 256KB Flash, 24KB RAM, 100MHz, 48Pin, 3 OpAmp, 3 Comp, PTG, CAN-FD, UQFN, Projected EOL: 2044-09-13 COO: China ECCN: 3A991.a.2 RoHS: Compliant Lead time: 22 Weeks, 0 Days Container: Reel 0

Alternates Available
  • 1 $2.1900
  • 25 $1.9800
  • 100 $1.8000
  • 1,000 $1.6500
  • 5,000 $1.5800
$1.5800 / $2.1900 Buy Now
Onlinecomponents.com MCU - 16-bit Digital Signal Controllers - 256KB Flash - 48-pin UQFN - 3.0 to 3.6V - DC to 100MIPS - 250 ps PWM Resolution - CAN FD - -40°C to +85°C RoHS: Compliant 0
  • 825 $4.7300
  • 1,650 $2.5000
  • 2,475 $1.7600
  • 3,300 $1.7300
$1.7300 / $4.7300 Buy Now
NAC 16 Bit DSC, 256KB Flash, 24KB RAM, 100MHz, 28Pin, 3 OpAmp, 3 Comp, PTG, CAN-FD - Package: 48 UQFN 6x6x0.6mm T/R RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 0
  • 1 $2.3500
  • 100 $2.1300
  • 500 $1.9600
  • 1,000 $1.9100
$1.9100 / $2.3500 Buy Now
Cytech Systems Limited IC MCU 16BIT 256KB FLASH 48UQFN 3300
RFQ
DISTI # DSPIC33CK256MP505T-I/M4
EBV Elektronik (Alt: DSPIC33CK256MP505T-I/M4) RoHS: Compliant Min Qty: 3300 Package Multiple: 3300 Lead time: 23 Weeks, 0 Days EBV - 0
Buy Now
Master Electronics MCU - 16-bit Digital Signal Controllers - 256KB Flash - 48-pin UQFN - 3.0 to 3.6V - DC to 100MIPS - 250 ps PWM Resolution - CAN FD - -40°C to +85°C RoHS: Compliant 0
  • 825 $4.7300
  • 1,650 $2.5000
  • 2,475 $1.7600
  • 3,300 $1.7300
$1.7300 / $4.7300 Buy Now
Vyrian Peripheral ICs 1906
RFQ

Part Details for DSPIC33CK256MP505T-I/M4

DSPIC33CK256MP505T-I/M4 CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

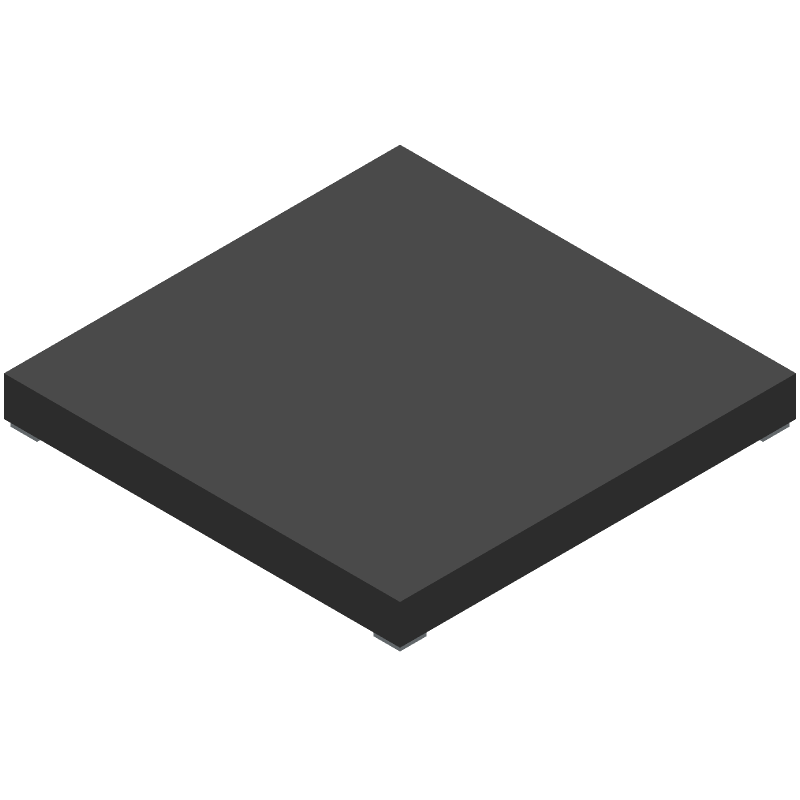

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

DSPIC33CK256MP505T-I/M4 Part Data Attributes

Parametric Data
DSPIC33CK256MP505T-I/M4 Microchip Technology Inc
Buy Now Datasheet
Compare Parts:
DSPIC33CK256MP505T-I/M4 Microchip Technology Inc dsPIC33C 100MHz 256K Dual Panel Flash 24K RAM CAN-FD OpAmps 12bit ADCs PWM
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer MICROCHIP TECHNOLOGY INC
Package Description UQFN-48
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Factory Lead Time 22 Weeks
Samacsys Manufacturer Microchip
Address Bus Width
Barrel Shifter YES
Bit Size 16
Boundary Scan YES
Clock Frequency-Max 64 MHz
External Data Bus Width
Format FIXED POINT
Integrated Cache NO
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PQCC-N48
JESD-609 Code e3
Length 6 mm
Low Power Mode YES
Number of DMA Channels 4
Number of External Interrupts 4
Number of Serial I/Os 4
Number of Terminals 48
Number of Timers 2
On Chip Data RAM Width 8
On Chip Program ROM Width 24
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
Package Body Material PLASTIC/EPOXY
Package Code HVQCCN
Package Equivalence Code LCC48,.24SQ,16
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
RAM (words) 24576
ROM Programmability FLASH
Screening Level TS 16949
Seated Height-Max 0.6 mm
Supply Current-Max 35 mA
Supply Voltage-Max 3.6 V
Supply Voltage-Min 3 V
Supply Voltage-Nom 3.3 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form NO LEAD
Terminal Pitch 0.4 mm
Terminal Position QUAD
Width 6 mm
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, CONTROLLER

Alternate Parts for DSPIC33CK256MP505T-I/M4

This table gives cross-reference parts and alternative options found for DSPIC33CK256MP505T-I/M4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DSPIC33CK256MP505T-I/M4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
DSPIC33CK64MC105T-I/M4 Microchip Technology Inc $1.4850 Digital Signal Processor, 16-Bit Size, 0-Ext Bit, 64MHz, CMOS, PQCC48 DSPIC33CK256MP505T-I/M4 vs DSPIC33CK64MC105T-I/M4
DSPIC33CK32MP102-I/2N Microchip Technology Inc $1.7004 dsPIC33C 100MHz 32K Flash 8K RAM OpAmps 12bit ADCs PWM DSPIC33CK256MP505T-I/M4 vs DSPIC33CK32MP102-I/2N
DSPIC33CK32MP105T-I/M4 Microchip Technology Inc $1.7050 dsPIC33C 100MHz 32K Flash 8K RAM OpAmps 12bit ADCs PWM DSPIC33CK256MP505T-I/M4 vs DSPIC33CK32MP105T-I/M4
DSPIC33CK256MP203-I/M5 Microchip Technology Inc $2.3788 dsPIC33C 100MHz 256K Dual Panel Flash 24K RAM OpAmps 12bit ADCs PWM DSPIC33CK256MP505T-I/M4 vs DSPIC33CK256MP203-I/M5
DSPIC33CH256MP208T-I/PT Microchip Technology Inc $3.3950 dsPIC33 100MHz Dual Core MC PWM 80-Pin 256KB Flash DSPIC33CK256MP505T-I/M4 vs DSPIC33CH256MP208T-I/PT
DSPIC33CK256MP505-I/M4 Microchip Technology Inc $3.7578 Microcontroller DSPIC33CK256MP505T-I/M4 vs DSPIC33CK256MP505-I/M4
DSPIC33CK256MP502I/SS Microchip Technology Inc Check for Price Microcontroller DSPIC33CK256MP505T-I/M4 vs DSPIC33CK256MP502I/SS
DSPIC33CK512MP308T-I/PT Microchip Technology Inc Check for Price 16-Bit Size, 0-Ext Bit, 64MHz, CMOS, PQFP80 DSPIC33CK256MP505T-I/M4 vs DSPIC33CK512MP308T-I/PT
DSPIC33CK64MP102-H/SS Microchip Technology Inc Check for Price Digital Signal Processor, 16-Bit Size, 0-Ext Bit, 64MHz, CMOS, PDSO28 DSPIC33CK256MP505T-I/M4 vs DSPIC33CK64MP102-H/SS
DSPIC33CK256MP605T-I/PT Microchip Technology Inc Check for Price DIGITAL SIGNAL PROCESSOR, CONTROLLER DSPIC33CK256MP505T-I/M4 vs DSPIC33CK256MP605T-I/PT

DSPIC33CK256MP505T-I/M4 Frequently Asked Questions (FAQ)

  • The maximum clock frequency of the DSPIC33CK256MP505T-I/M4 is 100 MHz.

  • The oscillator configuration is done through the FOSCSEL and FNOSC bits in the FOSC register. Refer to the datasheet for the specific configuration options.

  • The DSPIC33CK256MP505T-I/M4 has 256 KB of program flash memory and 32 KB of data RAM.

  • Yes, the DSPIC33CK256MP505T-I/M4 has a range of peripherals, including PWM modules, QEI modules, and ADC modules, that make it suitable for motor control applications.

  • The watchdog timer is implemented using the WDT module. The WDT can be enabled and configured through the WDTCON register. Refer to the datasheet for the specific configuration options.
