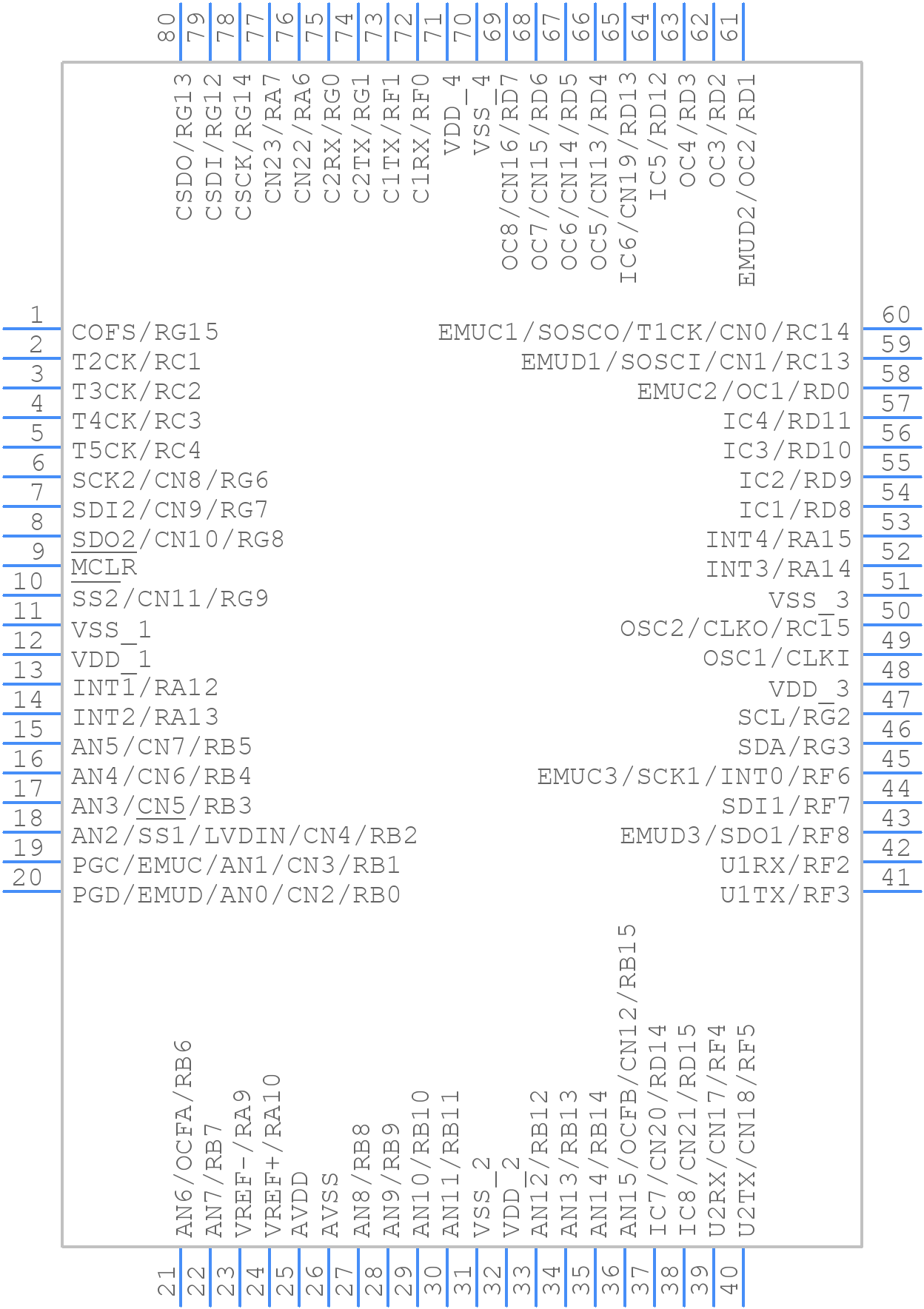

Part Symbol
-

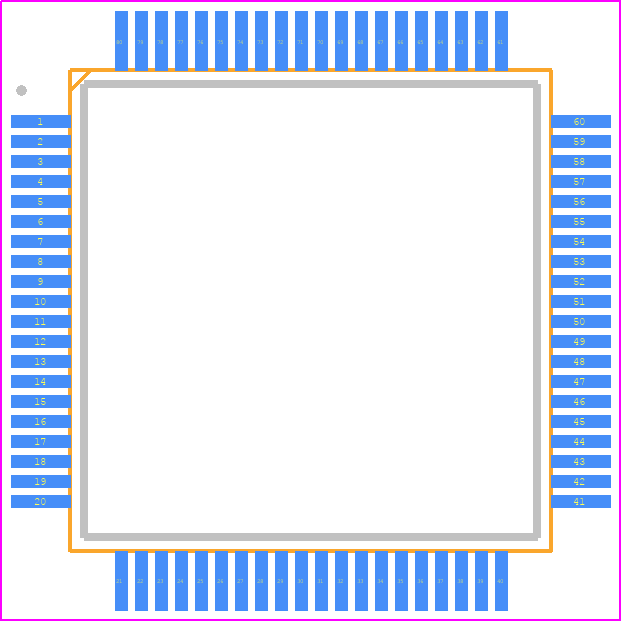

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DSPIC30F6014A-30I/PT by Microchip Technology Inc
Results Overview of DSPIC30F6014A-30I/PT by Microchip Technology Inc
- Distributor Offerings: (23 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DSPIC30F6014A-30I/PT Information
DSPIC30F6014A-30I/PT by Microchip Technology Inc is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for DSPIC30F6014A-30I/PT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71J3818
|
Newark | Digital Signal Controller-Dsc, 16 Bit, 144Kb 40Mhz 5.5V Tqfp-80, Product Range:Dspic30F Series, Core Frequency:40Mhz, Flash Memory Size:144Kb, No. Of I/O S:68I/O S, Embedded Interface Type:Can, I2C, Spi, Uart, Dsc Case Style:Tqfp Rohs Compliant: Yes |Microchip DSPIC30F6014A-30I/PT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 237 |
|
$11.2000 / $13.3000 | Buy Now |
|
DISTI #
27AC3990
|
Newark | Tqfp 16 Bit Mcu/Dsp 30Mips 144 Kb Flash Rohs Compliant: Yes |Microchip DSPIC30F6014A-30I/PT RoHS: Compliant Min Qty: 119 Package Multiple: 1 Date Code: 0 Container: Bulk | 102 |
|
$11.2000 / $11.5800 | Buy Now |
|
DISTI #
DSPIC30F6014A30IP-ND
|
DigiKey | IC MCU 16BIT 144KB FLASH 80TQFP Min Qty: 1 Lead time: 6 Weeks Container: Tray |
310 In Stock |
|
$11.2000 / $13.5700 | Buy Now |
|
DISTI #
DSPIC30F6014A-30I/PT
|
Avnet Americas | MCU 16-bit dsPIC30 dsPIC RISC 144KB Flash 3.3V/5V 80-Pin TQFP Tray - Trays (Alt: DSPIC30F6014A-30I/PT) RoHS: Compliant Min Qty: 119 Package Multiple: 1 Lead time: 6 Weeks, 0 Days Container: Tray | 102 |
|
$10.8527 / $11.2330 | Buy Now |
|
DISTI #
71J3818
|
Avnet Americas | MCU 16-bit dsPIC30 dsPIC RISC 144KB Flash 3.3V/5V 80-Pin TQFP Tray - Bulk (Alt: 71J3818) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 58 Weeks, 1 Days Container: Bulk | 237 Partner Stock |
|
$11.6500 / $14.1100 | Buy Now |
|
DISTI #
579-DS30F6014A30IPT
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC 30MIPS 144 KB RoHS: Compliant | 1130 |
|
$11.2000 / $13.5700 | Buy Now |
|
DISTI #
DSPIC30F6014A-30I/PT
|
Microchip Technology Inc | 16 Bit MCU/DSP 80LD 30 MIPS 144KB FLASH, Pb FREE, TQFP, Projected EOL: 2034-08-15 COO: Thailand ECCN: 3A991.a.2 RoHS: Compliant Lead time: 6 Weeks, 0 Days Container: Tray |
314 Alternates Available |
|
$9.8100 / $13.5700 | Buy Now |
|
DISTI #
70046075
|
RS | DSP, 16-Bit, 144 KB Flash, 8KB RAM, 68 I/O, TQFP-80 Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 227 |
|
$8.6400 | Buy Now |
|
|
Future Electronics | dsPIC30F Series 8 kB RAM 144 kB Flash 16-Bit Digital Signal Controller - TQFP-80 RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Container: Tray | 476Tray |
|
$11.3100 / $11.8800 | Buy Now |
|
|
Onlinecomponents.com | MCU - 16-bit dsPIC RISC - 144KB Flash - 8KB SRAM - 4KB EEPROM - -40°C to +85°C - 2.5V/3.3V/5V - 80-Pin TQFP - Tray RoHS: Compliant |
2145 In Stock |
|
$11.0500 / $32.9900 | Buy Now |
Part Details for DSPIC30F6014A-30I/PT
DSPIC30F6014A-30I/PT CAD Models
DSPIC30F6014A-30I/PT Part Data Attributes
|
|
DSPIC30F6014A-30I/PT
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
DSPIC30F6014A-30I/PT
Microchip Technology Inc
16-BIT, FLASH, 30 MHz, RISC MICROCONTROLLER, PQFP80, 12 X 12 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-80
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Part Package Code | QFP | |
| Package Description | 12 X 12 MM, 1 MM HEIGHT, PLASTIC, MS-026, TQFP-80 | |
| Pin Count | 80 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Factory Lead Time | 58 Weeks, 1 Day | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | ALSO OPERATES AT 2.5V MINIMUM SUPPLY AT 10 MHZ | |
| Address Bus Width | ||
| Barrel Shifter | YES | |
| Bit Size | 16 | |
| Boundary Scan | NO | |
| Clock Frequency-Max | 40 MHz | |
| External Data Bus Width | ||
| Format | FIXED POINT | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PQFP-G80 | |
| JESD-609 Code | e3 | |
| Length | 12 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 80 | |
| On Chip Program ROM Width | 24 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TQFP | |
| Package Equivalence Code | TQFP80,.55SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| ROM Programmability | FLASH | |
| Screening Level | TS 16949 | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 250 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, CONTROLLER |
