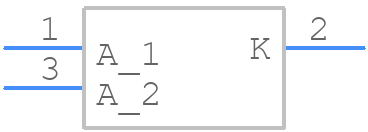

Part Symbol
-

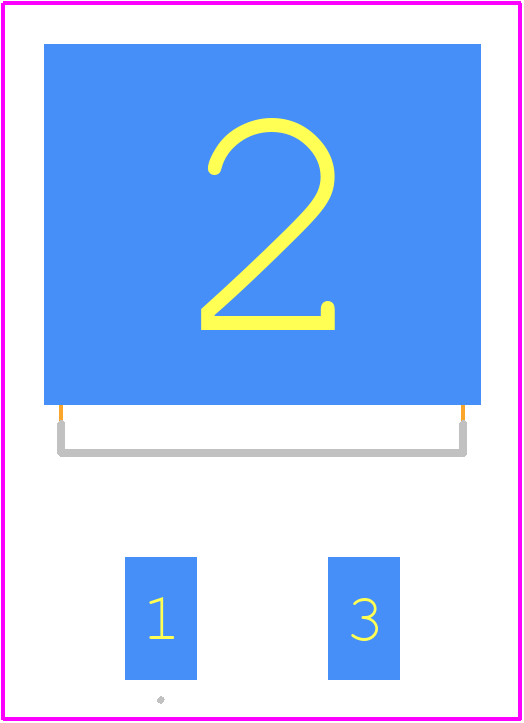

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DSI30-08AS-TUB by Littelfuse Inc
Results Overview of DSI30-08AS-TUB by Littelfuse Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
DSI30-08AS-TUB Information
DSI30-08AS-TUB by Littelfuse Inc is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for DSI30-08AS-TUB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
03AH0030
|
Newark | Power Diode Discretes-Rectifier To-263D2/ Tr |Littelfuse DSI30-08AS-TUB RoHS: Not Compliant Min Qty: 1400 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.4000 / $1.7700 | Buy Now |
|
DISTI #
75576717
|
RS | Power Diode Discretes-Rectifier TO-263D2 Min Qty: 1400 Package Multiple: 1 Lead time: 8 Weeks, 0 Days Container: Bulk | 0 |
|
$1.9300 / $2.1000 | RFQ |
|
|
Vyrian | Diodes | 1231 |
|
RFQ |
Part Details for DSI30-08AS-TUB
DSI30-08AS-TUB CAD Models
DSI30-08AS-TUB Part Data Attributes
|
|
DSI30-08AS-TUB
Littelfuse Inc
Buy Now
Datasheet
|
Compare Parts:
DSI30-08AS-TUB
Littelfuse Inc
Rectifier Diode, 1 Phase, 1 Element, 800V V(RRM), Silicon, TO-263AB, TO-263, D2PAK-3/2
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | LITTELFUSE INC | |
| Package Description | TO-263, D2PAK-3/2 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | LITTELFUSE | |
| Additional Feature | LOW LEAKAGE CURRENT, PD-CASE | |
| Application | GENERAL PURPOSE | |
| Case Connection | CATHODE | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1.6 V | |
| JEDEC-95 Code | TO-263AB | |
| JESD-30 Code | R-PSSO-G2 | |
| Non-rep Pk Forward Current-Max | 275 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Power Dissipation-Max | 160 W | |
| Reference Standard | IEC-60747 | |
| Rep Pk Reverse Voltage-Max | 800 V | |
| Reverse Current-Max | 40 µA | |
| Surface Mount | YES | |
| Terminal Form | GULL WING | |
| Terminal Position | SINGLE |
