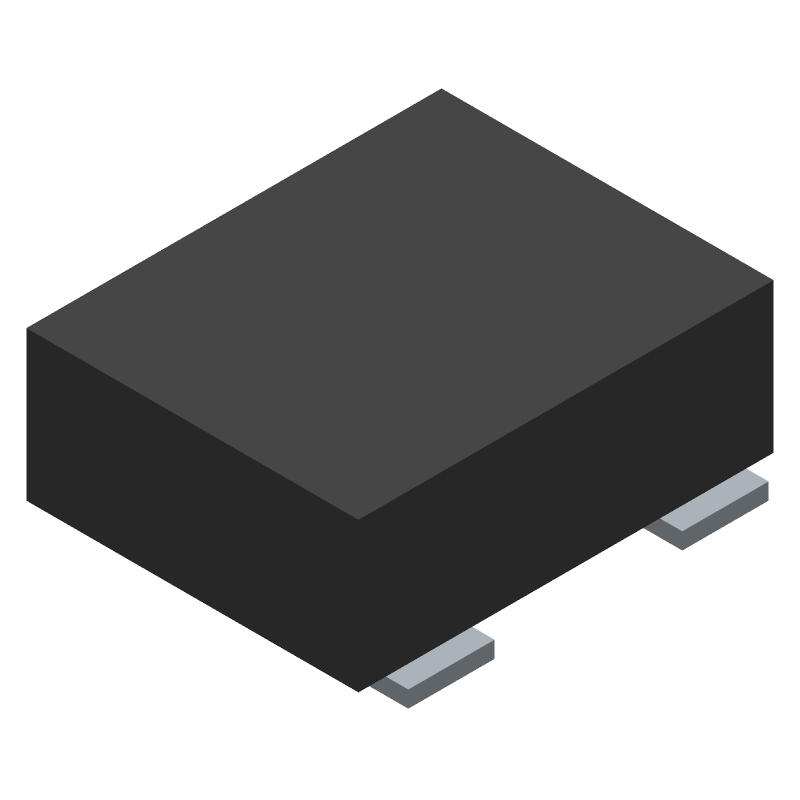

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DSC1001DL5-050.0000 by Microchip Technology Inc
Results Overview of DSC1001DL5-050.0000 by Microchip Technology Inc
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DSC1001DL5-050.0000 Information
DSC1001DL5-050.0000 by Microchip Technology Inc is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for DSC1001DL5-050.0000
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78AK3556
|
Newark | Mems Osc, Cmos, 50Mhz, 3.6V, Qfn Rohs Compliant: Yes |Microchip DSC1001DL5-050.0000 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 7 |
|
$2.1100 | Buy Now |
|
DISTI #
150-DSC1001DL5-050.0000-ND
|
DigiKey | MEMS OSC XO 50.0000MHZ CMOS SMD Min Qty: 1 Lead time: 4 Weeks Container: Strip | Temporarily Out of Stock |
|
$1.4685 / $1.5700 | Buy Now |
|
DISTI #
DSC1001DL5-050.0000
|
Avnet Americas | CMOS Oscillator, MEMS, Low-Power Precision, 50 MHz, 3.3 V, -40 to 105 ?C, SMD, 2.5mm x 2mm - Rail/Tube (Alt: DSC1001DL5-050.0000) RoHS: Compliant Min Qty: 560 Package Multiple: 140 Lead time: 4 Weeks, 0 Days Container: Tube | 0 |
|
$1.0530 / $1.1250 | Buy Now |
|
DISTI #
579-C1001DL50500000
|
Mouser Electronics | Standard Clock Oscillators MEMS OSC, LVCMOS, 50MHz, 10PPM, 1.8-3.3V, -40 to 105C, 2.5 x 2.0mm RoHS: Compliant | 239 |
|
$1.1200 / $1.4000 | Buy Now |
|
DISTI #
DSC1001DL5-050.0000
|
Microchip Technology Inc | MEMS OSC, LVCMOS, 50MHz, 10PPM, 1.8-3.3V, -40 to 105C, 2.5 x 2.0mm, VDFN, Projected EOL: 2044-05-06 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 4 Weeks, 0 Days Container: Tube |
16106 Alternates Available |
|
$1.0100 / $1.4000 | Buy Now |
|
|
Onlinecomponents.com | Oscillator MEMS 50MHz ±10ppm (Stability) 15pF CMOS 55% 1.8V/2.5V/3.3V Automotive 4-Pin CDFN SMD Tube RoHS: Compliant |
197 In Stock |
|
$1.8540 / $2.1310 | Buy Now |
|
DISTI #
79011137
|
Verical | Oscillator MEMS 50MHz ±10ppm (Stability) 15pF LVCMOS 55% 1.8V/2.5V/3.3V 4-Pin CDFN SMD Tube Automotive AEC-Q100 RoHS: Compliant Min Qty: 250 Package Multiple: 1 | Americas - 1570 |
|
$2.0063 / $2.3699 | Buy Now |
|
|
Bristol Electronics | 8 |
|
RFQ | ||
|
DISTI #
DSC1001DL5-050.0000
|
IBS Electronics | MEMS CRYSTAL OSCILLATOR 50MHZ 1.7 TO 3.6V 15PF 4-PIN VQFN T/R Min Qty: 140 Package Multiple: 1 | 337 |
|
$2.4050 / $2.7690 | Buy Now |
|
|
NAC | MEMS Oscillator Low Power -40C-105C 10ppm - Package: 4 VDFN 2.0x2.5mm TUBE RoHS: Compliant Min Qty: 280 Package Multiple: 140 Container: Tube | 0 |
|
$1.1300 / $1.3800 | Buy Now |
Part Details for DSC1001DL5-050.0000
DSC1001DL5-050.0000 CAD Models
DSC1001DL5-050.0000 Part Data Attributes
|
|
DSC1001DL5-050.0000
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
DSC1001DL5-050.0000
Microchip Technology Inc
OSC MEMS 50.0000MHZ CMOS SMD
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | QFN-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | AEC-Q100; STANDBY; ENABLE/DISABLE FUNCTION; TUBE | |
| Fall Time-Max | 2 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 10% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 50 MHz | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | CMOS | |
| Output Load | 10 KOHM, 15 pF | |
| Physical Dimension | 2.5mm x 2.0mm x 0.85mm | |
| Rise Time-Max | 2 ns | |
| Screening Level | AEC-Q100 | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
DSC1001DL5-050.0000 Frequently Asked Questions (FAQ)
-
A good PCB layout for the DSC1001DL5-050.0000 involves placing the device near the crystal oscillator, using a solid ground plane, and minimizing the distance between the device and the crystal. A 4-layer PCB with a dedicated ground plane is recommended.
-
The DSC1001DL5-050.0000 requires a stable power supply with minimal noise and ripple. A decoupling capacitor of 10nF to 100nF should be placed close to the device, and the power supply should be filtered to prevent noise from affecting the device's operation.
-
The DSC1001DL5-050.0000 requires a parallel-resonant crystal oscillator with a load capacitance of 10pF to 20pF. The crystal should be placed close to the device, and the oscillator circuit should be designed to minimize stray capacitance and inductance.
-
To troubleshoot issues with the DSC1001DL5-050.0000, check the power supply, clock signal, and oscillator circuit. Verify that the device is properly configured and that the crystal oscillator is functioning correctly. Use an oscilloscope to measure the clock signal and verify that it is within the specified frequency range.
-
The DSC1001DL5-050.0000 has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and avoid exposing the device to high temperatures during soldering or rework. Use a thermal pad or heat sink if necessary.
