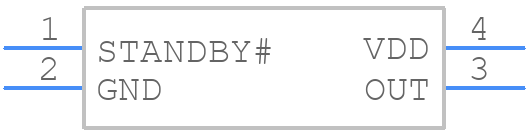

Part Symbol
-
Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DSC1001DL5-012.2880T by Microchip Technology Inc
Results Overview of DSC1001DL5-012.2880T by Microchip Technology Inc
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DSC1001DL5-012.2880T Information
DSC1001DL5-012.2880T by Microchip Technology Inc is an XO.
XO are under the broader part category of Oscillators.
Oscillators are electronic components that produce sine or square waves in order to convert signals. Read more about Oscillators on our Oscillators part category page.
Price & Stock for DSC1001DL5-012.2880T
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
43AC4804
|
Newark | Mems Osc, Lvcmos, 12.288Mhz, 10Ppm, 1.8-3.3V, -40 To 105C, 2.5 X 2.0Mm 4 Vdfn 2.0X2.5Mm T/R Rohs Compliant: Yes |Microchip DSC1001DL5-012.2880T RoHS: Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.0600 | Buy Now |
|
DISTI #
150-DSC1001DL5-012.2880T-ND
|
DigiKey | MEMS OSC XO 12.2880MHZ CMOS SMD Min Qty: 1 Lead time: 4 Weeks Container: Strip | Temporarily Out of Stock |
|
$1.4685 / $1.5700 | Buy Now |
|
DISTI #
DSC1001DL5-012.2880T
|
Avnet Americas | MEMS Oscillator, 12.288 MHz, SMD, 2.5mm x 2mm, 10 ppm, 3.3 V, DSC1001 - Tape and Reel (Alt: DSC1001DL5-012.2880T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 4 Weeks, 0 Days Container: Reel | 0 |
|
$1.0530 / $1.1250 | Buy Now |
|
DISTI #
998-1001DL5012.2880T
|
Mouser Electronics | Standard Clock Oscillators MEMS OSC, LVCMOS, 12.288MHz, 10PPM, 1.8-3.3V, -40 to 105C, 2.5 x 2.0mm RoHS: Compliant | 142 |
|
$1.1200 / $1.4000 | Buy Now |
|
DISTI #
DSC1001DL5-012.2880T
|
Microchip Technology Inc | MEMS OSC, LVCMOS, 12.288MHz, 10PPM, 1.8-3.3V, -40 to 105C, 2.5 x 2.0mm, VDFN, Projected EOL: 2044-12-29 COO: Thailand ECCN: EAR99 RoHS: Compliant Lead time: 4 Weeks, 0 Days Container: Reel |
18026 Alternates Available |
|
$1.0100 / $1.4000 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 1000 Factory Stock |
|
$2.1000 / $4.3900 | Buy Now |
|
DISTI #
79011265
|
Verical | Oscillator MEMS 12.288MHz ±10ppm (Stability) 15pF LVCMOS 55% 1.8V/2.5V/3.3V 4-Pin CDFN SMD T/R Automotive AEC-Q100 RoHS: Compliant Min Qty: 250 Package Multiple: 1 | Americas - 1570 |
|
$2.0063 / $2.3699 | Buy Now |
|
|
NAC | MEMS Oscillator, Low Power, LVCMOS, -40C-105C, 10ppm, 2.5x2.0mm - Package: 4 VDFN 2.0x2.5mm T/R RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | 0 |
|
$1.1300 / $1.3800 | Buy Now |
|
DISTI #
DSC1001DL5-012.2880T
|
Avnet Silica | MEMS Oscillator 12288 MHz SMD 25mm x 2mm 10 ppm 33 V DSC1001 (Alt: DSC1001DL5-012.2880T) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 6 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
|
Cytech Systems Limited | MEMS OSC XO 12.2880MHZ CMOS SMD | 1000 |
|
RFQ |
Part Details for DSC1001DL5-012.2880T
DSC1001DL5-012.2880T CAD Models
DSC1001DL5-012.2880T Part Data Attributes
|
|
DSC1001DL5-012.2880T
Microchip Technology Inc
Buy Now
Datasheet
|
Compare Parts:
DSC1001DL5-012.2880T
Microchip Technology Inc
OSC MEMS 12.288MHZ CMOS SMD
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | MICROCHIP TECHNOLOGY INC | |
| Package Description | QFN-4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Microchip | |
| Additional Feature | AEC-Q100; STANDBY; ENABLE/DISABLE FUNCTION; TR | |
| Fall Time-Max | 2 ns | |
| Frequency Adjustment-Mechanical | NO | |
| Frequency Stability | 10% | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Frequency-Nom | 12.288 MHz | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Oscillator Type | CMOS | |
| Output Load | 10 KOHM, 15 pF | |
| Physical Dimension | 2.5mm x 2.0mm x 0.85mm | |
| Rise Time-Max | 2 ns | |
| Screening Level | AEC-Q100 | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Symmetry-Max | 55/45 % | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
