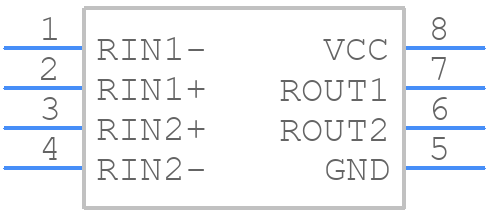

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS90LV028ATM by Texas Instruments
Results Overview of DS90LV028ATM by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Renewable Energy
Robotics and Drones
DS90LV028ATM Information
DS90LV028ATM by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for DS90LV028ATM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
926-DS90LV028ATM
|
Mouser Electronics | LVDS Interface IC 600-Mbps LVDS dual h igh speed differenti A 926-DS90LV028ATMNOPB RoHS: Not Compliant | 0 |
|
Order Now | |
|
DISTI #
86278741
|
Verical | LVDS Receiver 400Mbps 8-Pin SOIC Tube RoHS: Not Compliant Min Qty: 210 Package Multiple: 1 Date Code: 1401 | Americas - 7299 |
|
$1.5125 / $1.7875 | Buy Now |
|
|
Quest Components | IC,LINE RECEIVER,DUAL,CMOS,DIFFERENTIAL,SOP,8PIN,PLASTIC | 42 |
|
$2.2500 / $4.5000 | Buy Now |
|
|
Rochester Electronics | DS90LV028A 600 Mbps LVDS Dual High Speed Differential Receiver RoHS: Not Compliant Status: Not Recommended for New Designs Min Qty: 1 | 7299 |
|
$1.2100 / $1.5100 | Buy Now |
|
DISTI #
SMC-DS90LV028ATM
|
Sensible Micro Corporation | OEM Excess 5-7 Days Leadtime, We are an AS6081 Certified Vendor, 1 Yr Warranty RoHS: Not Compliant Min Qty: 25 Lead time: 2 Weeks, 0 Days | 245 |
|
RFQ | |
|
|
Win Source Electronics | IC LINE RVR 3V DUAL DIFF 8-SOIC | 72600 |
|
$1.1036 / $1.6553 | Buy Now |
Part Details for DS90LV028ATM
DS90LV028ATM CAD Models
DS90LV028ATM Part Data Attributes
|
|
DS90LV028ATM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DS90LV028ATM
Texas Instruments
600-Mbps LVDS dual high speed differential receiver 8-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | 0.150 INCH, PLASTIC, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1998-06-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Input Characteristics | DIFFERENTIAL | |
| Interface IC Type | LINE RECEIVER | |
| Interface Standard | EIA-644; TIA-644 | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e0 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Low Current-Max | 0.002 A | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 235 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 2.5 ns | |
| Receiver Number of Bits | 2 | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 9 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 20 | |
| Width | 3.9 mm |
