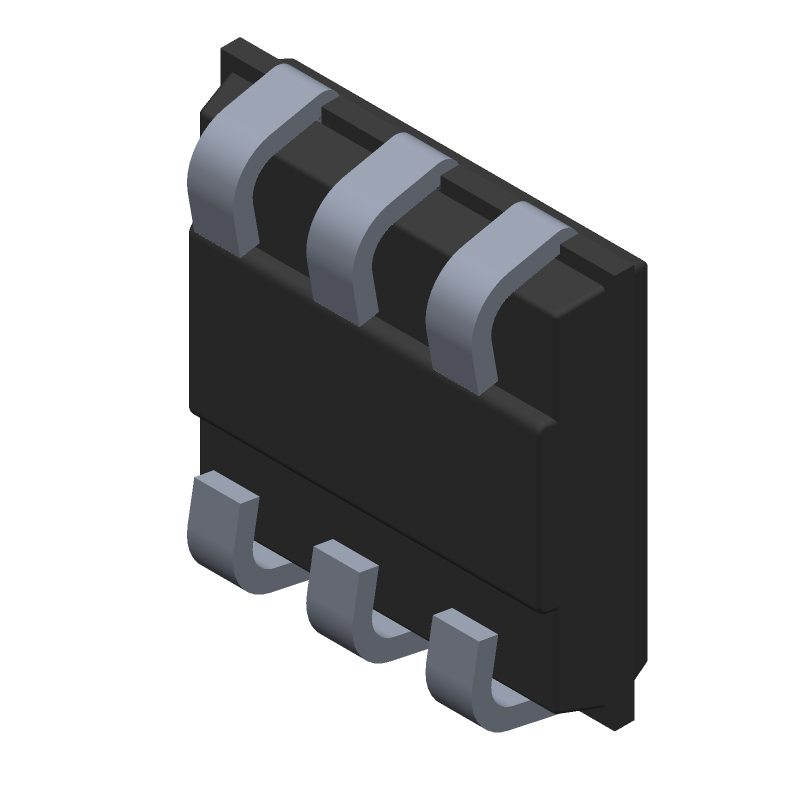

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS28E07P+ by Analog Devices Inc
Results Overview of DS28E07P+ by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Smart Cities
DS28E07P+ Information
DS28E07P+ by Analog Devices Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for DS28E07P+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AC5082
|
Newark | Eeprom, 1Kbit, 1-Wire, Tsoc-6, Memory Configuration:4Pages X 256Bit, Interfaces:1-Wire, Clock Frequency Max:-, Ic Case/Package:Tsoc, No. Of Pins:6Pins, Supply Voltage Min:3V, Supply Voltage Max:5.25V, Ic Mounting:Surface Mount Rohs Compliant: Yes |Analog Devices DS28E07P+ RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 602 |
|
$0.7540 / $1.0800 | Buy Now |
|
DISTI #
700-DS28E07P+
|
Mouser Electronics | EEPROM 1-W EEPROM 1KB, TSOC RoHS: Compliant | 56308 |
|
$0.8700 / $1.2000 | Buy Now |
|
|
Analog Devices Inc | 1-W EEPROM 1KB, TSOC Package Multiple: 1 | 5002 |
|
$0.6600 / $1.2000 | Buy Now |
|
|
Vyrian | Memory ICs | 18128 |
|
RFQ |
Part Details for DS28E07P+
DS28E07P+ CAD Models
DS28E07P+ Part Data Attributes
|
|
DS28E07P+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS28E07P+
Analog Devices Inc
1024-Bit, 1-Wire EEPROM, 6-PLCC-N/A, 6 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 6-PLCC-N/A | |
| Package Description | TSOC-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | 6-PLCC-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2016-06-13 | |
| Samacsys Manufacturer | Analog Devices | |
| Data Retention Time-Min | 10 | |
| Endurance | 10000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-C6 | |
| JESD-609 Code | e3 | |
| Length | 4.29 mm | |
| Memory Density | 1024 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Number of Words | 1024 words | |
| Number of Words Code | 1000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 1KX1 | |
| Output Characteristics | OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOC | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programming Voltage | 3 V | |
| Reverse Pinout | NO | |
| Seated Height-Max | 1.5 mm | |
| Serial Bus Type | 1-WIRE | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.94 mm | |
| Write Protection | HARDWARE |
