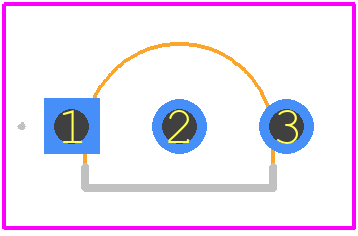

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS24B33+T&R by Analog Devices Inc
Results Overview of DS24B33+T&R by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DS24B33+T&R Information
DS24B33+T&R by Analog Devices Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for DS24B33+T&R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS24B33+T&R
|
Mouser Electronics | EEPROM 1-WIRE 4KB EEPROM W/200K WRITE/ERASE CYC RoHS: Compliant | 8232 |
|
$2.3300 / $3.4300 | Buy Now |
|
DISTI #
V72:2272_26355394
|
Arrow Electronics | EEPROM Serial-1Wire 4K-bit 16Page x 256 3.3V/5V 3-Pin TO-92 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2308 Container: Cut Strips | Americas - 1872 |
|
$2.3850 / $2.6180 | Buy Now |
|
|
Analog Devices Inc | 1-WIRE 4KB EEPROM W/200K WRITE Min Qty: 1 Package Multiple: 1 | 3430 |
|
$2.3250 / $3.9300 | Buy Now |
|
DISTI #
66990678
|
Verical | EEPROM Serial-1Wire 4K-bit 16Page x 256 3.3V/5V 3-Pin TO-92 T/R RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2308 | Americas - 1872 |
|
$2.3850 / $2.6180 | Buy Now |
Part Details for DS24B33+T&R
DS24B33+T&R CAD Models
DS24B33+T&R Part Data Attributes
|
|
DS24B33+T&R
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS24B33+T&R
Analog Devices Inc
1-Wire 4Kb EEPROM, 3-TO92-N/A, 3 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 3-TO92-N/A | |
| Package Description | ROHS COMPLIANT, TO-92, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 3-TO92-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2011-04-21 | |
| Samacsys Manufacturer | Analog Devices | |
| Endurance | 50000 Write/Erase Cycles | |
| JESD-30 Code | O-PBCY-T3 | |
| JESD-609 Code | e3 | |
| Memory Density | 4096 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 3 | |
| Number of Words | 4096 words | |
| Number of Words Code | 4000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 4KX1 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 250 | |
| Qualification Status | Not Qualified | |
| Serial Bus Type | 1-WIRE | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 2.8 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 20 |
Alternate Parts for DS24B33+T&R
This table gives cross-reference parts and alternative options found for DS24B33+T&R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS24B33+T&R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DS24B33+T&R | Maxim Integrated Products | $3.3246 | EEPROM, 4KX1, Serial, CMOS, PBCY3, ROHS COMPLIANT, TO-92, 3 PIN | DS24B33+T&R vs DS24B33+T&R |
| DS2433/T&R | Maxim Integrated Products | Check for Price | EEPROM, 4KX1, Serial, CMOS, PBCY3, PR-35, 3 PIN | DS24B33+T&R vs DS2433/T&R |
DS24B33+T&R Frequently Asked Questions (FAQ)
-
The recommended PCB layout for the DS24B33 involves placing the device near the battery, using a solid ground plane, and keeping the VBAT and GND pins as close as possible to reduce noise and improve accuracy.
-
To ensure accurate temperature measurement, it's essential to follow proper PCB layout guidelines, use a thermally conductive material for the PCB, and avoid placing heat sources near the device. Additionally, calibrate the device during manufacturing or use the built-in calibration feature.
-
The maximum allowed voltage on the VBAT pin is 3.6V. Exceeding this voltage can damage the device. It's recommended to use a voltage regulator or a battery with a maximum voltage of 3.6V to ensure safe operation.
-
The DS24B33 can be interfaced with a microcontroller using the I2C bus. The device has a 7-bit address, and the microcontroller can read or write data to the device using the I2C protocol. Make sure to follow the I2C bus specifications and use pull-up resistors on the SCL and SDA lines.
-
The typical current consumption of the DS24B33 is around 1.5μA in active mode and 0.1μA in shutdown mode. However, this can vary depending on the operating frequency, voltage, and other factors. Refer to the datasheet for more detailed information on power consumption.
