DS2431P+ Information
DS2431P+ by Analog Devices Inc is an EEPROM.
EEPROMs are under the broader part category of Memory Components.
Memory components are essential in electronics for computer processing. They can be volatile or non-volatile, depending on the desired function. Read more about Memory Components on our Memory part category page.
Price & Stock for DS2431P+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS2431P
|
Mouser Electronics | EEPROM 1024-Bit 1-Wire EEPROM RoHS: Compliant | 15553 |
|
$1.8900 / $2.3800 | Buy Now |
|
DISTI #
V99:2348_18691964
|
Arrow Electronics | EEPROM Serial-1Wire 1K-bit 4Pages x 256 3.3V/5V Medical 6-Pin TSOC Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2445 | Americas - 235 |
|
$1.7030 / $2.3000 | Buy Now |
|
DISTI #
V36:1790_18691964
|
Arrow Electronics | EEPROM Serial-1Wire 1K-bit 4Pages x 256 3.3V/5V Medical 6-Pin TSOC Tube RoHS: Compliant Min Qty: 240 Package Multiple: 120 Lead time: 14 Weeks Date Code: 2248 | Americas - 2 |
|
$1.5370 / $1.6120 | Buy Now |
|
|
Analog Devices Inc | 1024-Bit 1-Wire EEPROM Package Multiple: 1 | 1743 |
|
$1.2300 / $2.6700 | Buy Now |
|
DISTI #
87048243
|
Verical | EEPROM Serial-1Wire 1K-bit 4Pages x 256 3.3V/5V Medical 6-Pin TSOC Tube RoHS: Compliant Min Qty: 4 Package Multiple: 1 Date Code: 2445 | Americas - 235 |
|
$1.7030 / $2.3000 | Buy Now |
|
DISTI #
DS2431P+
|
TME | IC: EEPROM memory, 1kbEEPROM, 1-wire, 256kx4bit, 2.8÷5.25V, TSOC6 Min Qty: 1 | 348 |
|
$3.7100 / $5.8500 | Buy Now |
|
|
Ameya Holding Limited | IC: EEPROM memory, 1-wire, 256kx4bit, 2.8÷5.25V, TSOC6, serial | 100 |
|
Buy Now RFQ |
Part Details for DS2431P+

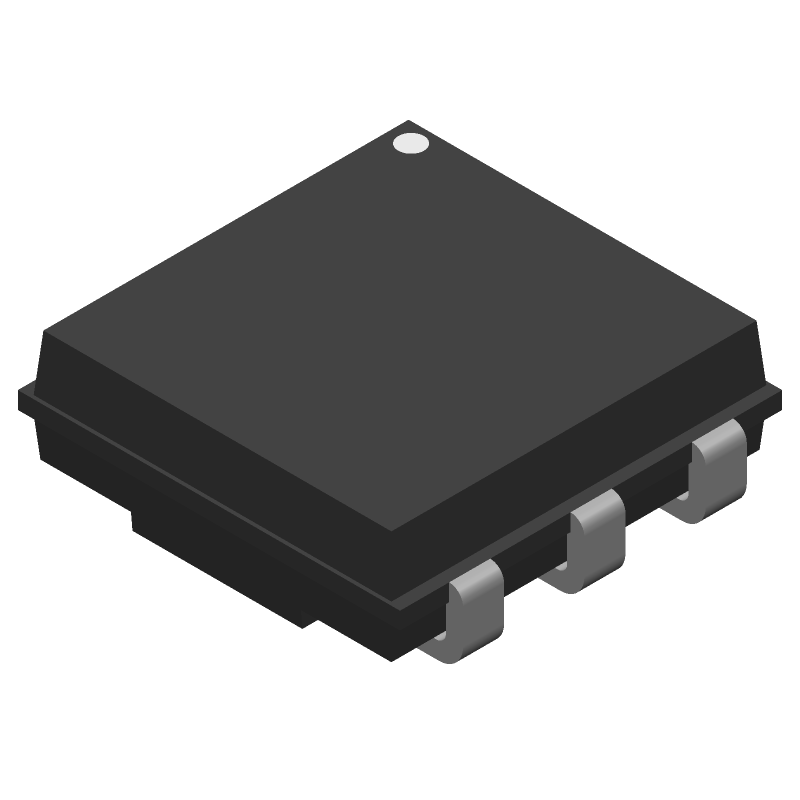

DS2431P+ CAD Models
DS2431P+ Part Data Attributes
|
|
DS2431P+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS2431P+
Analog Devices Inc
1024-Bit 1-Wire EEPROM, 6-PLCC-N/A, 6 Pins, -40 to 85C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 6-PLCC-N/A | |
| Package Description | ROHS COMPLIANT, TSOC-6 | |
| Pin Count | 6 | |
| Manufacturer Package Code | 6-PLCC-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2004-05-07 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | MEMORY ORGANIZED AS FOUR PAGES OF 256 BITS | |
| Command User Interface | NO | |
| Data Polling | NO | |
| Data Retention Time-Min | 40 | |
| Endurance | 50000 Write/Erase Cycles | |
| JESD-30 Code | R-PDSO-C6 | |
| JESD-609 Code | e3 | |
| Length | 3.94 mm | |
| Memory Density | 1024 bit | |
| Memory IC Type | EEPROM | |
| Memory Width | 1 | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 6 | |
| Number of Words | 1024 words | |
| Number of Words Code | 1000 | |
| Operating Mode | ASYNCHRONOUS | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Organization | 1KX1 | |
| Output Characteristics | OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOC | |
| Package Equivalence Code | SOC6,.17 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Parallel/Serial | SERIAL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Reverse Pinout | NO | |
| Seated Height-Max | 1.5 mm | |
| Serial Bus Type | 1-WIRE | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 2.8 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | C BEND | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.76 mm | |
| Write Protection | HARDWARE |
Alternate Parts for DS2431P+
This table gives cross-reference parts and alternative options found for DS2431P+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS2431P+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DS2431P+ | Maxim Integrated Products | $1.7136 | EEPROM, 1KX1, Serial, CMOS, PDSO6, ROHS COMPLIANT, TSOC-6 | DS2431P+ vs DS2431P+ |
| DS2502P-E48 | Maxim Integrated Products | Check for Price | OTP ROM, 1KX1, CMOS, PDSO6, TSOC-6 | DS2431P+ vs DS2502P-E48 |
| DS2502P-E48/T&R | Maxim Integrated Products | Check for Price | OTP ROM, 1KX1, CMOS, PDSO6, TSOC-6 | DS2431P+ vs DS2502P-E48/T&R |
| DS28E01P-100+T&R | Maxim Integrated Products | Check for Price | EEPROM, 1KX1, Serial, CMOS, ROHS COMPLIANT, TSOC-6 | DS2431P+ vs DS28E01P-100+T&R |
| DS2431P-A1+T | Analog Devices Inc | Check for Price | 1024-Bit, 1-Wire EEPROM for Automotive Applications, 6-PLCC-N/A, 6 Pins, -40 to 125C | DS2431P+ vs DS2431P-A1+T |
| DS2431P+T&R | Maxim Integrated Products | $1.9162 | EEPROM, 1KX1, Serial, CMOS, PDSO6, ROHS COMPLIANT, TSOC-6 | DS2431P+ vs DS2431P+T&R |
| DS2432P+T&R | Maxim Integrated Products | Check for Price | EEPROM, 1KX1, Serial, CMOS, PDSO6, 0.150 INCH, ROHS COMPLIANT, TSOC-6 | DS2431P+ vs DS2432P+T&R |
| DS2502P+ | Maxim Integrated Products | $3.1429 | OTP ROM, 128X8, 15000ns, CMOS, PDSO6, LEAD FREE, TSOC-6 | DS2431P+ vs DS2502P+ |
| DS28E02P+T&R | Maxim Integrated Products | Check for Price | EEPROM, 1KX1, Serial, CMOS, PDSO6, ROHS COMPLIANT, TSOC-6 | DS2431P+ vs DS28E02P+T&R |
| DS2432P | Maxim Integrated Products | Check for Price | EEPROM, 1KX1, Serial, CMOS, PDSO6, 0.150 INCH, TSOC-6 | DS2431P+ vs DS2432P |
DS2431P+ Frequently Asked Questions (FAQ)
-
The DS2431P+ can operate from -40°C to +85°C, but the accuracy of the temperature sensor is specified from -20°C to +70°C.
-
The VDD pin should be connected to a 2.7V to 5.5V power supply, and a 0.1uF bypass capacitor should be placed close to the pin to filter out noise.
-
The RST pin is an active-low reset input that can be used to reset the device. It should be tied to VDD through a 1kΩ resistor and a 0.1uF capacitor to ensure proper reset operation.
-
The DS2431P+ is a 1-Wire slave device and requires a 1-Wire master device to communicate with it. The 1-Wire bus requires a single wire connection to the DQ pin, and the device should be connected to a 1-Wire master device such as the DS2482-100.
-
The temperature sensor has an accuracy of ±1°C from -20°C to +70°C. Calibration is not required, as the device is calibrated during manufacturing. However, the user can perform a 1-point calibration by writing a correction value to the device's EEPROM.
