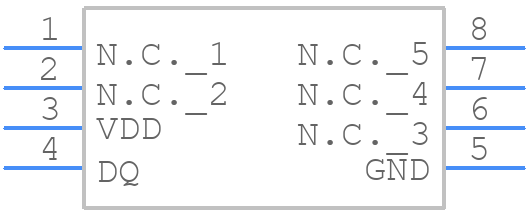

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS18S20Z+ by Analog Devices Inc
Results Overview of DS18S20Z+ by Analog Devices Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Automotive
DS18S20Z+ Information
DS18S20Z+ by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for DS18S20Z+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS18S20Z
|
Mouser Electronics | Thermostats 1-Wire Parasite-Power Digital Thermomete RoHS: Compliant | 3169 |
|
$4.9900 / $7.0900 | Buy Now |
|
|
Analog Devices Inc | 1-Wire Parasite-Power Digital Package Multiple: 1 | 905 |
|
$4.8826 / $7.0900 | Buy Now |
|
DISTI #
DS18S20Z+
|
TME | IC: temperature sensor, digital thermometer, -55÷125°C, SO8, SMD Min Qty: 1 | 0 |
|
$5.0700 / $6.9200 | RFQ |
Part Details for DS18S20Z+
DS18S20Z+ CAD Models
DS18S20Z+ Part Data Attributes
|
|
DS18S20Z+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS18S20Z+
Analog Devices Inc
1-Wire Parasite-Power Digital Thermometer, 8-SOIC_N-150_MIL, 8 Pins, -55 to 125C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-SOIC_N-150_MIL | |
| Package Description | ROHS COMPLIANT, SOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_N-150_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2003-02-21 | |
| Samacsys Manufacturer | Analog Devices | |
| Accuracy-Max (Cel) | 0.5 Cel | |
| Additional Feature | COMPLIANCE TO MIL-150 | |
| Body Breadth | 3.91 mm | |
| Body Height | 1.395 mm | |
| Body Length or Diameter | 4.88 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Bits | 9 | |
| Number of Terminals | 8 | |
| Operating Current-Max | 1.5 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Interface Type | 1-WIRE INTERFACE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
Alternate Parts for DS18S20Z+
This table gives cross-reference parts and alternative options found for DS18S20Z+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS18S20Z+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DS18S20Z/T&R | Maxim Integrated Products | Check for Price | Serial Switch/Digital Sensor, 9 Bit(s), 0.50Cel, Rectangular, 8 Pin, Surface Mount, SOP-8 | DS18S20Z+ vs DS18S20Z/T&R |
DS18S20Z+ Frequently Asked Questions (FAQ)
-
The DS18S20Z+ has an accuracy of ±0.5°C from -10°C to +85°C, and ±1°C from -40°C to -10°C and +85°C to +125°C.
-
You can connect multiple DS18S20Z+ sensors to a single bus by connecting the DQ pins of each sensor together, and the VDD and GND pins of each sensor to a common power supply and ground. Each sensor has a unique 64-bit ROM code that allows it to be addressed individually.
-
The maximum cable length for the DS18S20Z+ is 100 meters, but this can be extended to 200 meters using a repeater or a buffer.
-
In parasite power mode, the DS18S20Z+ derives its power from the data line. To handle this mode, you need to ensure that the data line is pulled high to VDD when the sensor is not being read, and that the data line is not driven low for more than 480 μs to avoid powering down the sensor.
-
The conversion time of the DS18S20Z+ is 750 ms for a 12-bit conversion, 375 ms for a 11-bit conversion, and 187.5 ms for a 9-bit conversion.
