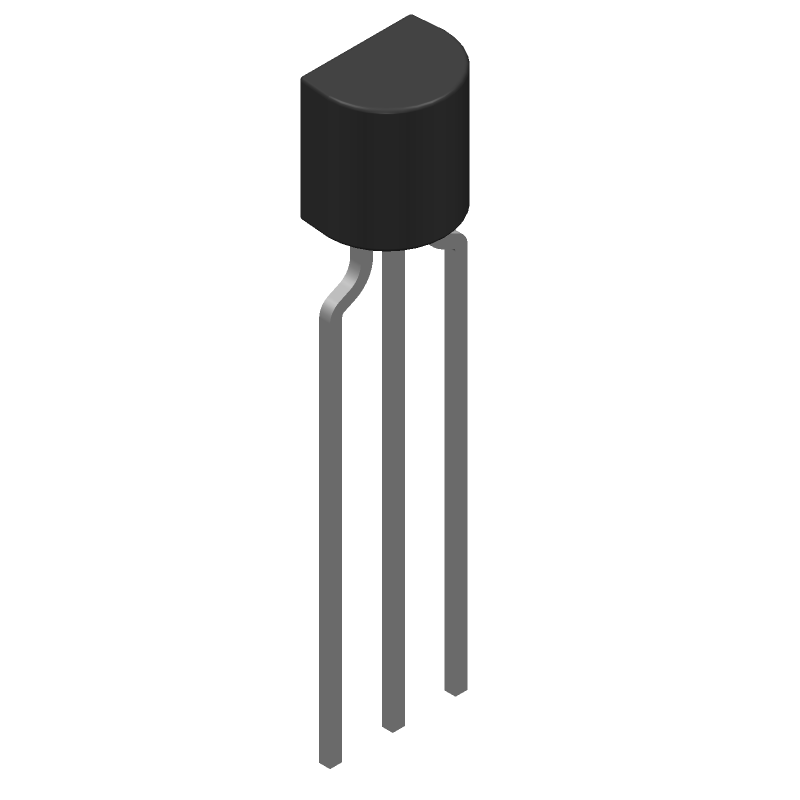

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS18S20+T&R by Analog Devices Inc
Results Overview of DS18S20+T&R by Analog Devices Inc
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Automotive
DS18S20+T&R Information
DS18S20+T&R by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for DS18S20+T&R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS18S20T&R
|
Mouser Electronics | Thermostats 1-Wire Parasite-Power Digital Thermomete RoHS: Compliant | 226 |
|
$4.1700 / $6.3500 | Buy Now |
|
|
Analog Devices Inc | 1-Wire Parasite-Power Digital Min Qty: 1 Package Multiple: 1 | 714 |
|
$4.2256 / $6.3500 | Buy Now |
Part Details for DS18S20+T&R
DS18S20+T&R CAD Models
DS18S20+T&R Part Data Attributes
|
|
DS18S20+T&R
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS18S20+T&R
Analog Devices Inc
1-Wire Parasite-Power Digital Thermometer, 3-TO92-N/A, 3 Pins, -55 to 125C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 3-TO92-N/A | |
| Package Description | ROHS COMPLIANT, TO-92, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 3-TO92-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2003-02-21 | |
| Samacsys Manufacturer | Analog Devices | |
| Accuracy-Max (Cel) | 0.5 Cel | |
| Body Breadth | 3.62 mm | |
| Body Height | 4.635 mm | |
| Body Length or Diameter | 4.7 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Bits | 9 | |
| Number of Terminals | 3 | |
| Operating Current-Max | 1.5 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Interface Type | 1-WIRE INTERFACE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
DS18S20+T&R Frequently Asked Questions (FAQ)
-
The DS18S20+T&R has an accuracy of ±0.5°C from -10°C to +85°C, and ±1°C from -40°C to +125°C.
-
The DS18S20+T&R has a built-in voltage regulator and noise filter to minimize the effects of power supply noise on temperature measurements.
-
Yes, multiple DS18S20+T&R sensors can be connected to the same 1-Wire bus, allowing for multiple temperature measurements with a single microcontroller interface.
-
The maximum cable length for the 1-Wire interface is approximately 100 meters, but this can be extended using repeaters or other signal conditioning techniques.
-
The DS18S20+T&R can be read as often as every 750ms, but the maximum conversion rate is 1Hz. Faster conversion rates may reduce accuracy.
