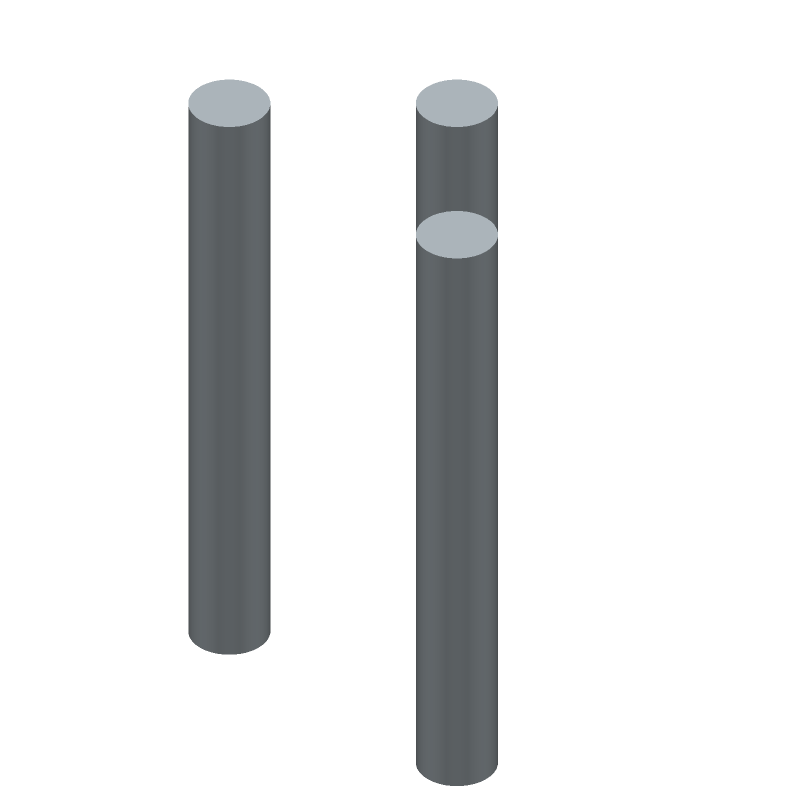

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS18S20+ by Analog Devices Inc
Results Overview of DS18S20+ by Analog Devices Inc
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Automotive
DS18S20+ Information
DS18S20+ by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for DS18S20+
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS18S20
|
Mouser Electronics | Thermostats 1-Wire Parasite-Power Digital Thermomete RoHS: Compliant | 8820 |
|
$4.4300 / $6.7000 | Buy Now |
|
DISTI #
V72:2272_21875371
|
Arrow Electronics | Temp Sensor Digital Serial (1-Wire) 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks Date Code: 2504 Container: Cut Strips | Americas - 1219 |
|
$4.3730 / $6.6620 | Buy Now |
|
|
Analog Devices Inc | 1-Wire Parasite-Power Digital Package Multiple: 1 | 0 |
|
$3.4100 / $7.0900 | Buy Now |
|
DISTI #
87996826
|
Verical | Temp Sensor Digital Serial (1-Wire) 3-Pin TO-92 Bag RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 2504 | Americas - 1219 |
|
$4.3730 / $6.6620 | Buy Now |
|
DISTI #
DS18S20+
|
TME | IC: temperature sensor, digital thermometer, -55÷125°C, TO92, THT Min Qty: 1 | 1150 |
|
$3.1200 / $4.6100 | Buy Now |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 5 |
|
RFQ |
Part Details for DS18S20+
DS18S20+ CAD Models
DS18S20+ Part Data Attributes
|
|
DS18S20+
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS18S20+
Analog Devices Inc
1-Wire Parasite-Power Digital Thermometer, 3-TO92-N/A, 3 Pins, -55 to 125C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 3-TO92-N/A | |
| Package Description | ROHS COMPLIANT, TO-92, 3 PIN | |
| Pin Count | 3 | |
| Manufacturer Package Code | 3-TO92-N/A | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 2003-02-21 | |
| Samacsys Manufacturer | Analog Devices | |
| Accuracy-Max (Cel) | 0.5 Cel | |
| Body Breadth | 3.62 mm | |
| Body Height | 4.635 mm | |
| Body Length or Diameter | 4.7 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Bits | 9 | |
| Number of Terminals | 3 | |
| Operating Current-Max | 1.5 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Interface Type | 1-WIRE INTERFACE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
Alternate Parts for DS18S20+
This table gives cross-reference parts and alternative options found for DS18S20+. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS18S20+, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DS1820 | Dallas Semiconductor | Check for Price | Serial Switch/Digital Sensor, 9 Bit(s), 2Cel, Round, 3 Pin, Through Hole Mount, | DS18S20+ vs DS1820 |
| DS18S20 | Maxim Integrated Products | Check for Price | Serial Switch/Digital Sensor, 9 Bit(s), 0.50Cel, Rectangular, 3 Pin, Through Hole Mount, TO-92, 3 PIN | DS18S20+ vs DS18S20 |
DS18S20+ Frequently Asked Questions (FAQ)
-
The maximum cable length for the 1-Wire bus is 100 meters (330 feet), but it's recommended to keep it as short as possible to minimize signal degradation and noise.
-
Each DS18S20+ has a unique 64-bit ROM code that can be used to identify and address individual sensors on the same bus. You can use the ROM code to select and communicate with specific sensors.
-
The DS18S20+ has an accuracy of ±0.5°C from -10°C to +85°C, and ±1°C from -40°C to +125°C. However, this accuracy can be affected by factors such as sensor calibration, noise, and thermal gradients.
-
The DS18S20+ outputs temperature data in a 16-bit signed integer format, where 1 LSB (least significant bit) equals 0.0625°C. You can convert this data to Celsius or Fahrenheit using a simple scaling formula.
-
The DS18S20+ has a typical active current of 1.5 mA and a standby current of 0.5 µA. The power consumption can be minimized by using the parasite power mode, which allows the sensor to draw power from the 1-Wire bus.
