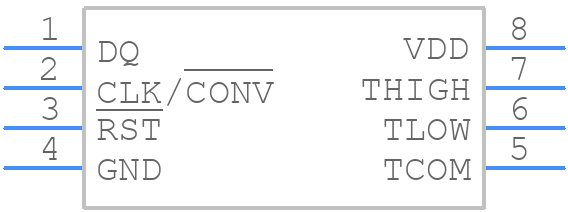

Part Symbol
-

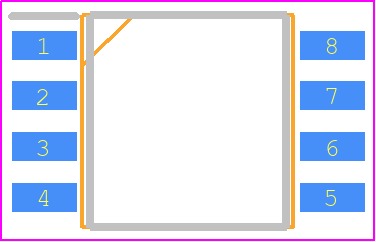

Footprint
-

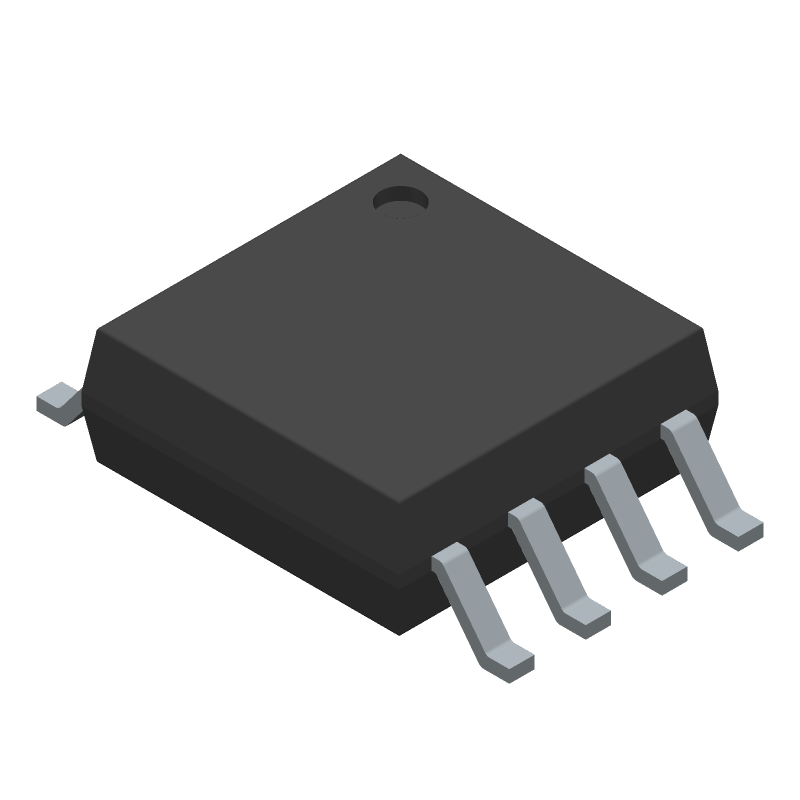

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS1620S+T&R by Analog Devices Inc
Results Overview of DS1620S+T&R by Analog Devices Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Industrial Automation
Robotics and Drones
DS1620S+T&R Information
DS1620S+T&R by Analog Devices Inc is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for DS1620S+T&R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
700-DS1620ST&R
|
Mouser Electronics | Thermostats Digital Thermometer and Thermostat RoHS: Compliant | 2283 |
|
$6.3800 / $8.3100 | Buy Now |
|
DISTI #
V72:2272_23268360
|
Arrow Electronics | Temp Sensor Digital Serial (3-Wire) 8-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Container: Cut Strips | Americas - 218 |
|
$6.2320 / $6.9630 | Buy Now |
|
|
Analog Devices Inc | Digital Thermometer and Thermo Min Qty: 1 Package Multiple: 1 | 475 |
|
$6.6209 / $9.7300 | Buy Now |
|
DISTI #
88978160
|
Verical | Temp Sensor Digital Serial (3-Wire) 8-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 | Americas - 218 |
|
$6.9630 | Buy Now |
Part Details for DS1620S+T&R
DS1620S+T&R CAD Models
DS1620S+T&R Part Data Attributes
|
|
DS1620S+T&R
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
DS1620S+T&R
Analog Devices Inc
Digital Thermometer and Thermostat, 8-SOIC_W-300_MIL, 8 Pins, -55 to 125C
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | 8-SOIC_W-300_MIL | |
| Package Description | 0.208 INCH, LEAD FREE, SOIC-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 8-SOIC_W-300_MIL | |
| Reach Compliance Code | compliant | |
| Date Of Intro | 1999-07-20 | |
| Samacsys Manufacturer | Analog Devices | |
| Additional Feature | COMPLIANCE TO MIL-208 | |
| Body Breadth | 5.285 mm | |
| Body Height | 1.905 mm | |
| Body Length or Diameter | 5.31 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Bits | 9 | |
| Number of Terminals | 8 | |
| Operating Current-Max | 1 mA | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Interface Type | 3-WIRE INTERFACE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 2.7 V | |
| Surface Mount | YES | |
| Terminal Finish | Matte Tin (Sn) | |
| Termination Type | SOLDER |
DS1620S+T&R Frequently Asked Questions (FAQ)
-
The DS1620S+T&R can be connected to the same 1-Wire bus as other 1-Wire devices, but the maximum number of devices is limited by the bus capacitance and the pull-up resistor value. A typical limit is around 10-15 devices.
-
To ensure accurate temperature readings in high-noise environments, use a shielded cable for the 1-Wire bus, keep the bus length as short as possible, and use a high-quality pull-up resistor. Additionally, consider using a noise filter or a shielded enclosure for the DS1620S+T&R.
-
The recommended pull-up resistor value for the 1-Wire bus is between 2.2 kΩ and 4.7 kΩ. A 2.2 kΩ resistor is a good starting point, but the optimal value may vary depending on the specific application and bus length.
-
Yes, the DS1620S+T&R can be used in a 3.3V system. The device is compatible with 3.3V and 5V systems, and the 1-Wire bus can be powered from a 3.3V or 5V supply.
-
In parasite power mode, the DS1620S+T&R derives its power from the 1-Wire bus. To handle this mode, ensure that the bus is powered continuously, and avoid powering down the bus while the device is in operation. Also, consider using a capacitor to decouple the bus from the power supply.
