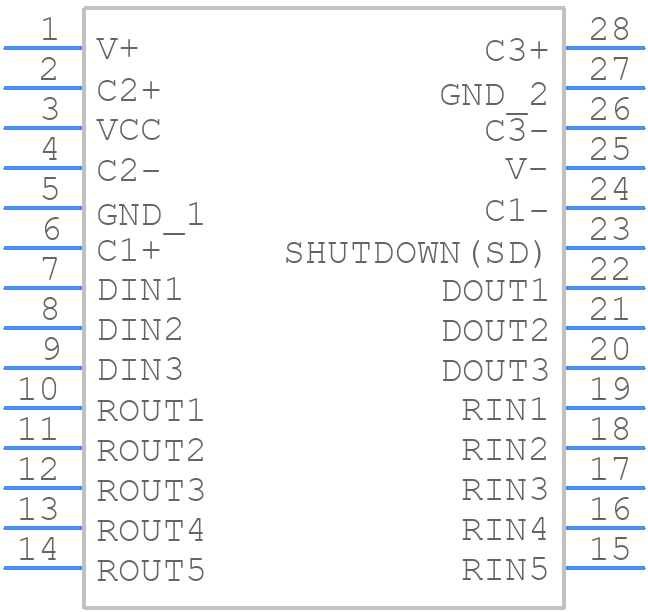

Part Symbol
-

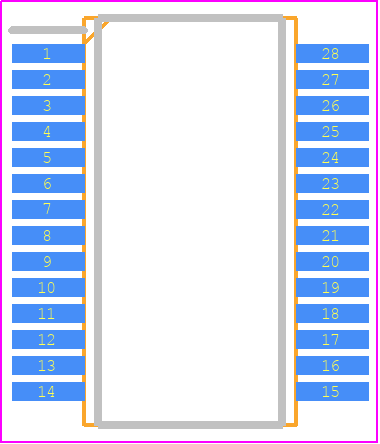

Footprint
-

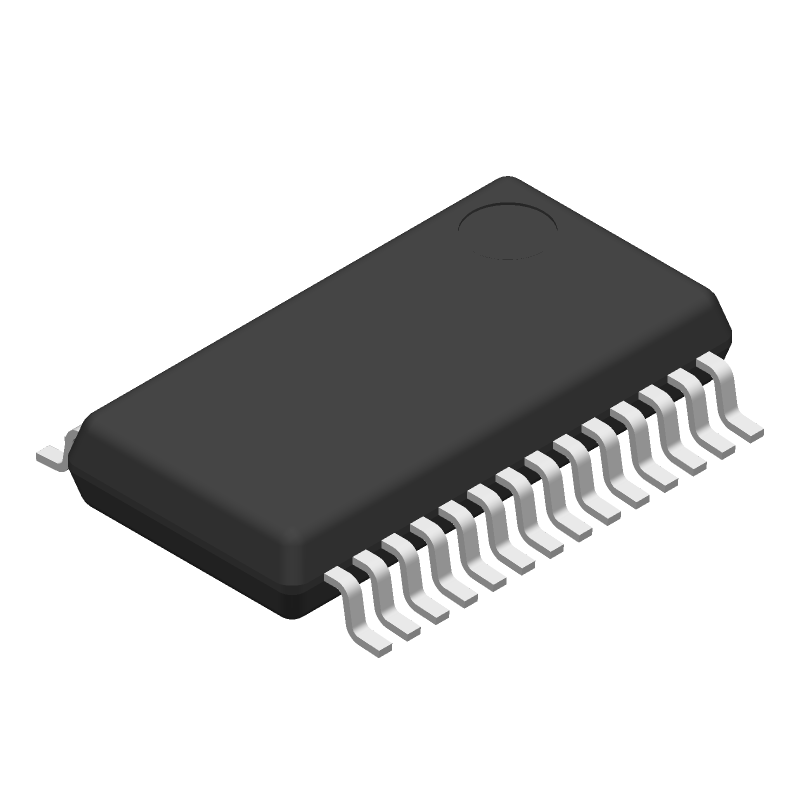

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS14C335MSAX/NOPB by Texas Instruments
Results Overview of DS14C335MSAX/NOPB by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DS14C335MSAX/NOPB Information
DS14C335MSAX/NOPB by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for DS14C335MSAX/NOPB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Rochester Electronics | Line Transceiver, 3 Func, 3 Driver, 5 Rcvr, PDSO28 RoHS: Compliant Status: Obsolete Min Qty: 1 | 5900 |
|
$3.8400 / $4.8000 | Buy Now |
Part Details for DS14C335MSAX/NOPB
DS14C335MSAX/NOPB CAD Models
DS14C335MSAX/NOPB Part Data Attributes
|
|
DS14C335MSAX/NOPB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DS14C335MSAX/NOPB
Texas Instruments
+3.3V Supply TIA/EIA - 232 3X5 Driver/Receiver 28-SSOP 0 to 70
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | GREEN, EIAJ TYPE2, SSOP-28 | |
| Pin Count | 28 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | 1 RECEIVER ACTIVE UNDER SHUTDOWN; EXTERNAL CHARGE PUMP | |
| Differential Output | NO | |
| Driver Number of Bits | 3 | |
| High Level Input Current-Max | 0.000001 A | |
| Input Characteristics | SCHMITT TRIGGER | |
| Interface IC Type | LINE TRANSCEIVER | |
| Interface Standard | EIA-232-E; TIA-232-E; V.28 | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e3 | |
| Length | 10.2 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 3 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Out Swing-Min | 10 V | |
| Output Low Current-Max | 0.002 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP28,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Receive Delay-Max | 1000 ns | |
| Receiver Number of Bits | 5 | |
| Seated Height-Max | 2 mm | |
| Supply Current-Max | 20 mA | |
| Supply Voltage-Max | 3.6 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transmit Delay-Max | 1000 ns | |
| Width | 5.3 mm |
Alternate Parts for DS14C335MSAX/NOPB
This table gives cross-reference parts and alternative options found for DS14C335MSAX/NOPB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DS14C335MSAX/NOPB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADM3311EARSZ-REEL | Analog Devices Inc | $4.0937 | 3-V, RS-232 Serial Port Driver-Receiver | DS14C335MSAX/NOPB vs ADM3311EARSZ-REEL |
| ADM3311EARSZ-REEL7 | Analog Devices Inc | $4.1776 | 3-V, RS-232 Serial Port Driver-Receiver | DS14C335MSAX/NOPB vs ADM3311EARSZ-REEL7 |
| ADM3311EARS | Analog Devices Inc | Check for Price | 3-V, RS-232 Serial Port Driver-Receiver | DS14C335MSAX/NOPB vs ADM3311EARS |
| ADM3311EARS-REEL | Analog Devices Inc | Check for Price | 3-V, RS-232 Serial Port Driver-Receiver | DS14C335MSAX/NOPB vs ADM3311EARS-REEL |
| DS14C335MSA/NOPB | Texas Instruments | Check for Price | +3.3V Supply TIA/EIA - 232 3X5 Driver/Receiver 28-SSOP 0 to 70 | DS14C335MSAX/NOPB vs DS14C335MSA/NOPB |
DS14C335MSAX/NOPB Frequently Asked Questions (FAQ)
-
A good PCB layout for the DS14C335MSAX/NOPB involves keeping the signal traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
-
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range, use a heat sink if necessary, and follow proper thermal design and layout guidelines. Additionally, consider using thermal protection devices or thermal sensors to monitor temperature.
-
When using the DS14C335MSAX/NOPB in a system with multiple voltage domains, ensure that the device is powered from a single voltage domain, and use level translators or voltage regulators to interface with other voltage domains. Also, consider the impact of voltage domain switching on the device's operation.
-
To troubleshoot issues with the DS14C335MSAX/NOPB, start by reviewing the datasheet and application notes, checking the device's configuration and programming, and verifying the PCB layout and signal integrity. Use oscilloscopes, logic analyzers, or other diagnostic tools to identify the root cause of the issue.
-
When using the DS14C335MSAX/NOPB in a system with EMI or RFI, ensure that the device is properly shielded, use EMI filters or chokes, and follow proper PCB layout and grounding techniques to minimize radiation and susceptibility. Consider using EMI-compliant components and following EMI/RFI design guidelines.
