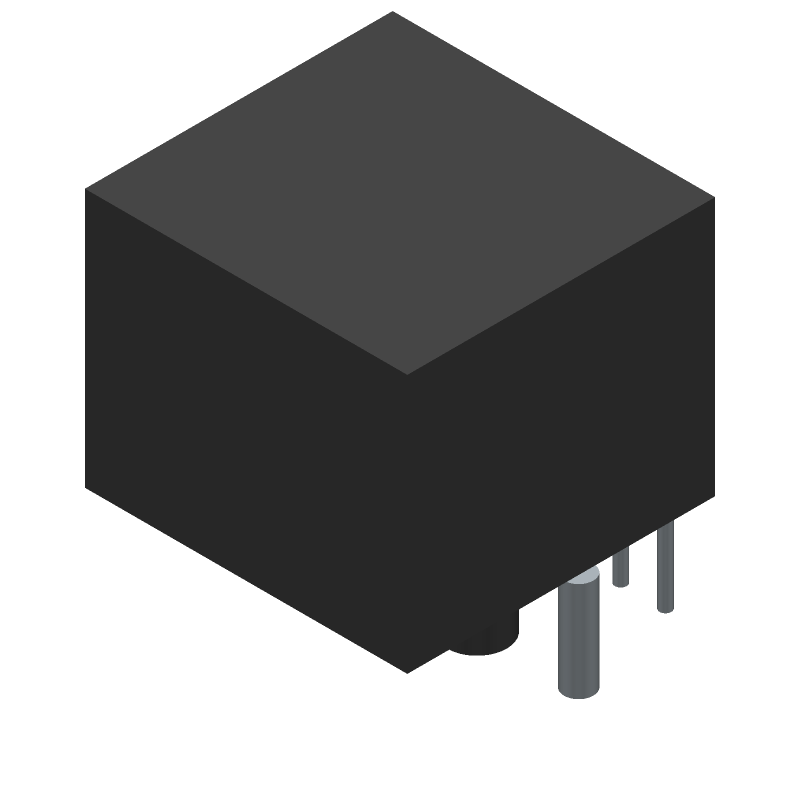

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DS1128-09-S8B8S by Ningbo connfly electronic CO LTD
Results Overview of DS1128-09-S8B8S by Ningbo connfly electronic CO LTD
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DS1128-09-S8B8S Information
DS1128-09-S8B8S by Ningbo connfly electronic CO LTD is a Telecom and Datacom Connector.
Telecom and Datacom Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for DS1128-09-S8B8S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
LCSC | RJ45Receptacle 1 Shielded WithLED Plugin Ethernet Connectors / Modular Connectors (RJ45 RJ11) ROHS | 5890 |
|
$0.2689 / $0.5257 | Buy Now |
Part Details for DS1128-09-S8B8S
DS1128-09-S8B8S CAD Models
DS1128-09-S8B8S Part Data Attributes
|
|
DS1128-09-S8B8S
Ningbo connfly electronic CO LTD
Buy Now
Datasheet
|
Compare Parts:
DS1128-09-S8B8S
Ningbo connfly electronic CO LTD
RJ Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack,
|
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | CONNFLY ELECTRONIC CO LTD | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Connfly | |
| Additional Feature | STANDARDS: CE, FCC | |
| Board Mounting Option | SPLIT BOARD LOCK | |
| Body Breadth | 0.522 inch | |
| Body Depth | 0.62 inch | |
| Body Length | 0.65 inch | |
| Body/Shell Style | JACK | |
| Connector Type | RJ CONNECTOR | |
| Contact Gender | FEMALE | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| Contact Style | MODULAR RJ45 | |
| Dielectric Withstanding Voltage | 707VAC V | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of PCB Rows | 2 | |
| Number of Ports | 1 | |
| Number of Rows Loaded | 1 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | STAGGERED | |
| PCB Contact Row Spacing | 1.78 mm | |
| Plating Thickness | FLASH inch | |
| Polarization Key | POLARIZED HOUSING | |
| Rated Current (Signal) | 1.5 A | |
| Reference Standard | CUL, UL | |
| Terminal Length | 0.113 inch | |
| Terminal Pitch | 2.04 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 8 |
