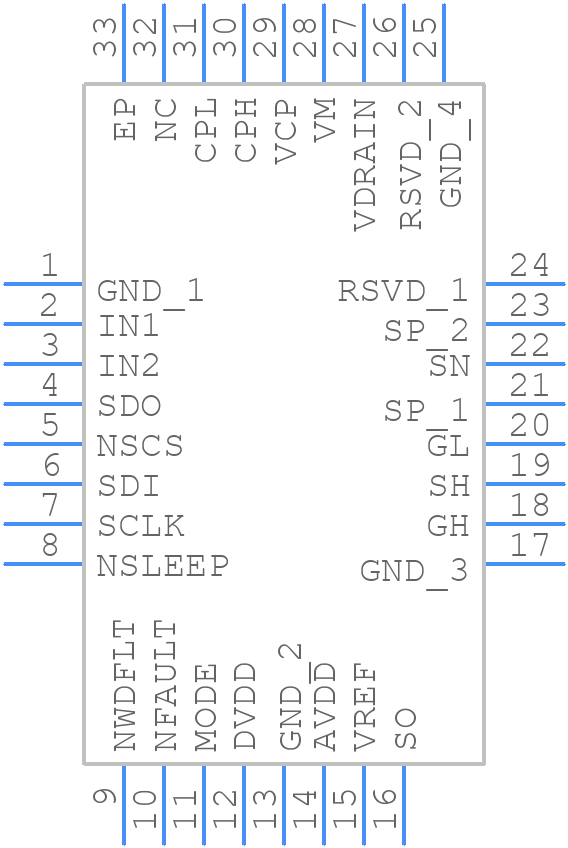

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DRV8703DQRHBRQ1 by Texas Instruments
Results Overview of DRV8703DQRHBRQ1 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
DRV8703DQRHBRQ1 Information
DRV8703DQRHBRQ1 by Texas Instruments is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for DRV8703DQRHBRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-51091-1-ND
|
DigiKey | IC MOTOR DRIVER 5.5V-45V 32VQFN Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.1421 / $2.2700 | Buy Now |
|
DISTI #
595-DRV8703DQRHBRQ1
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers Automotive 47-V half -bridge smart gate d A 595-DRV8703DQRHBTQ1 RoHS: Compliant | 8116 |
|
$1.0600 / $2.2800 | Buy Now |
Part Details for DRV8703DQRHBRQ1
DRV8703DQRHBRQ1 CAD Models
DRV8703DQRHBRQ1 Part Data Attributes
|
|
DRV8703DQRHBRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DRV8703DQRHBRQ1
Texas Instruments
Automotive 47-V half-bridge smart gate driver with SPI control 32-VQFN -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | VQFN-32 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2017-03-26 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | BRUSH DC MOTOR CONTROLLER | |
| JESD-30 Code | S-PQCC-N32 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 32 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 0.9 mm | |
| Supply Voltage-Max (Vsup) | 45 V | |
| Supply Voltage-Min (Vsup) | 5.5 V | |
| Supply Voltage-Nom (Vsup) | 13.5 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 5 mm |
Alternate Parts for DRV8703DQRHBRQ1
This table gives cross-reference parts and alternative options found for DRV8703DQRHBRQ1. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DRV8703DQRHBRQ1, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DRV8703DQRHBTQ1 | Texas Instruments | $1.0193 | Automotive 47-V half-bridge smart gate driver with SPI control 32-VQFN -40 to 125 | DRV8703DQRHBRQ1 vs DRV8703DQRHBTQ1 |
| DRV8912QPWPRQ1 | Texas Instruments | $2.4737 | Automotive, 40V, 6A 12 channel half-bridge motor driver with advanced diagnostics 24-HTSSOP -40 to 125 | DRV8703DQRHBRQ1 vs DRV8912QPWPRQ1 |
| TLE6208-3G | Infineon Technologies AG | Check for Price | Brush DC Motor Controller, BCDMOS, PDSO14, PLASTIC, DSOP-14 | DRV8703DQRHBRQ1 vs TLE6208-3G |
| TLE62083GXUMA1 | Infineon Technologies AG | Check for Price | Brush DC Motor Controller, BCDMOS, PDSO14, PLASTIC, DSOP-14 | DRV8703DQRHBRQ1 vs TLE62083GXUMA1 |
DRV8703DQRHBRQ1 Frequently Asked Questions (FAQ)
-
The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
-
The current limit on the DRV8703 can be adjusted by changing the value of the sense resistor (Rs) connected to the CS pin. A smaller Rs value will result in a higher current limit.
-
The EN (enable) pin is used to enable or disable the driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. This pin can be used to implement a shutdown or standby mode in the system.
-
The DRV8703 has a built-in thermal shutdown feature that turns off the driver when the junction temperature exceeds 170°C. However, it's recommended to implement external thermal protection measures, such as a thermal sensor or a heat sink, to prevent overheating.
-
The minimum input voltage required for the DRV8703 to operate is 8V, but it's recommended to use a minimum of 10V for reliable operation.
