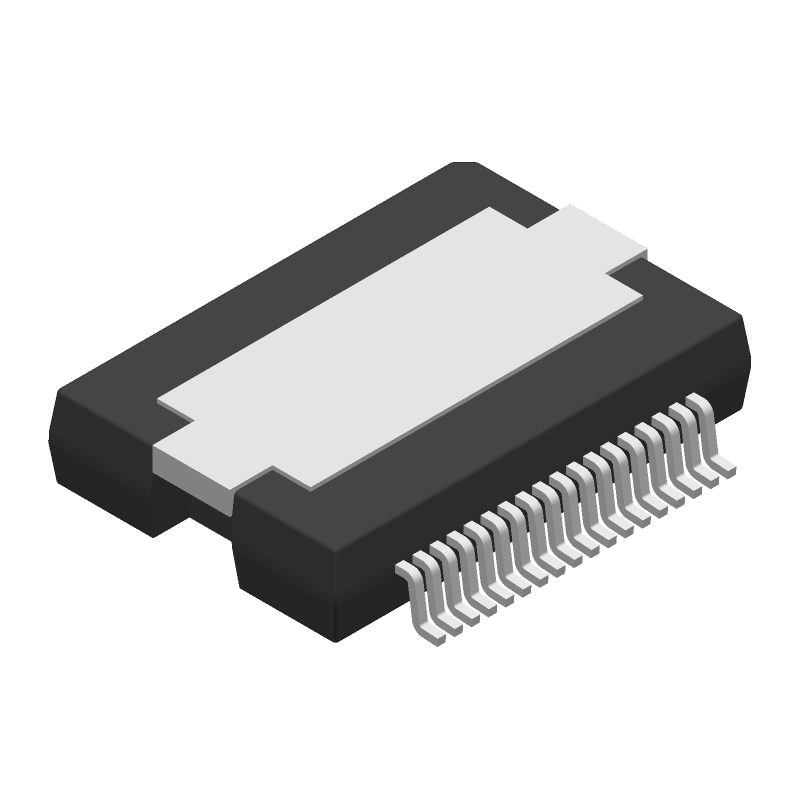

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DRV8402DKDR by Texas Instruments
Results Overview of DRV8402DKDR by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Security and Surveillance
Audio and Video Systems
Aerospace and Defense
Transportation and Logistics
Agriculture Technology
Renewable Energy
Automotive
Robotics and Drones
DRV8402DKDR Information
DRV8402DKDR by Texas Instruments is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for DRV8402DKDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 486 |
|
RFQ |
Part Details for DRV8402DKDR
DRV8402DKDR CAD Models
DRV8402DKDR Part Data Attributes
|
|
DRV8402DKDR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DRV8402DKDR
Texas Instruments
65-V, 10-A Dual full bridge motor driver 36-HSSOP -40 to 85
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | SSOP, SSOP36,.56 | |
| Pin Count | 36 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | BRUSH DC MOTOR CONTROLLER | |
| JESD-30 Code | R-PDSO-G36 | |
| JESD-609 Code | e4 | |
| Length | 15.9 mm | |
| Moisture Sensitivity Level | 4 | |
| Number of Functions | 2 | |
| Number of Terminals | 36 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 12 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SSOP | |
| Package Equivalence Code | SSOP36,.56 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.6 mm | |
| Supply Current-Max (Isup) | 12 mA | |
| Supply Voltage-Max (Vsup) | 52.5 V | |
| Supply Voltage-Min (Vsup) | ||
| Supply Voltage-Nom (Vsup) | 50 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 11 mm |
DRV8402DKDR Frequently Asked Questions (FAQ)
-
The maximum current rating of the DRV8402DKDR is 2A per channel, with a peak current of 4A.
-
The DRV8402DKDR can be configured for half-bridge or full-bridge operation by connecting the appropriate pins and setting the input logic levels. Refer to the application note SLVA945 for more details.
-
The minimum input voltage required for the DRV8402DKDR is 8V, but it is recommended to use a minimum of 10V for proper operation.
-
The DRV8402DKDR has built-in overcurrent protection and thermal shutdown. Additionally, external protection circuits can be added to prevent overcurrent and overheating. Refer to the datasheet for more details.
-
The DRV8402DKDR is rated for operation up to 150°C, but the maximum junction temperature should not exceed 150°C. Proper thermal design and heat sinking are recommended for high-temperature applications.
