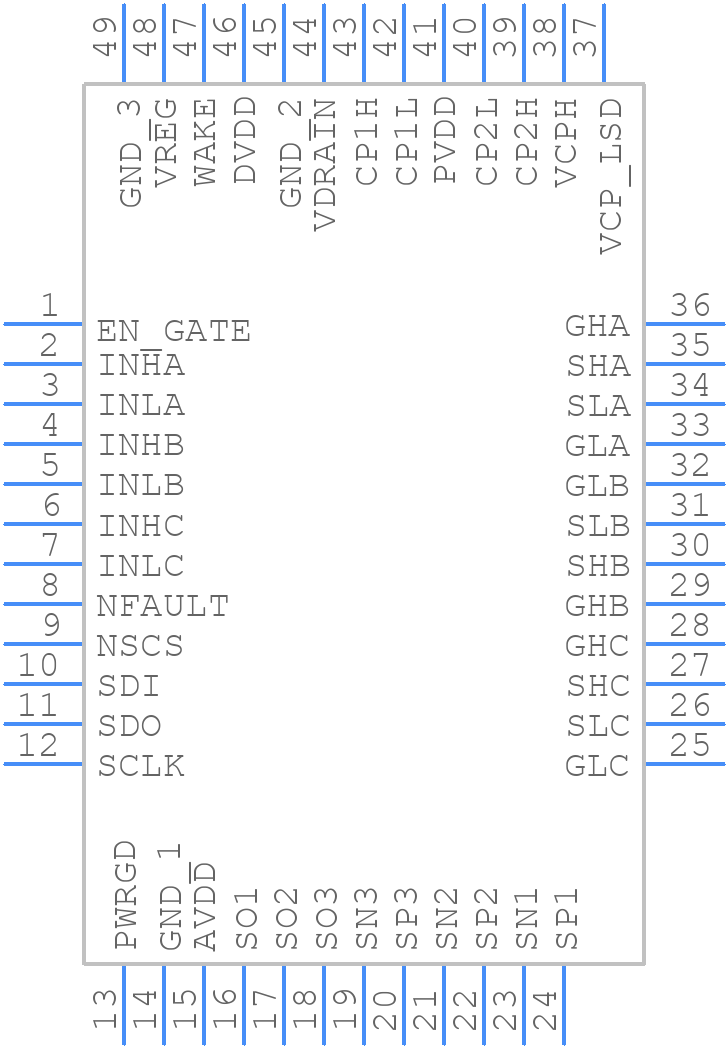

Part Symbol
-

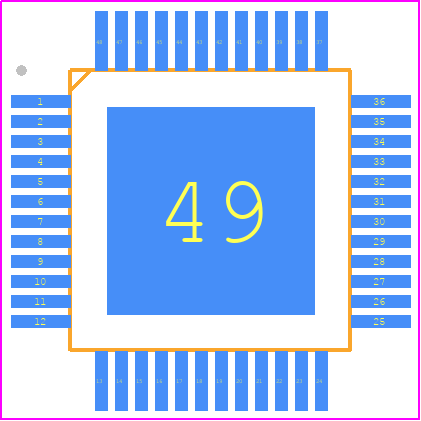

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DRV8305NPHP by Texas Instruments
Results Overview of DRV8305NPHP by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
DRV8305NPHP Information
DRV8305NPHP by Texas Instruments is an MOSFET Driver.
MOSFET Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for DRV8305NPHP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-52883-ND
|
DigiKey | IC MTR DRV MULTI 4.4-45V 48HTQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray |
1219 In Stock |
|
$2.6150 / $4.3300 | Buy Now |
|
DISTI #
595-DRV8305NPHP
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers 45-V max 3-phase sma rt gate driver with A 595-DRV8305NPHPR RoHS: Compliant | 4380 |
|
$2.6100 / $4.0800 | Buy Now |
|
|
LCSC | HTQFP-48(7x7) Brushless DC (BLDC) Motor Driver ROHS | 4 |
|
$3.1467 / $5.1754 | Buy Now |
|
|
Vyrian | Interface ICs | 10159 |
|
RFQ | |
|
|
Win Source Electronics | IC MTR DRV MULTI 4.4-45V 48HTQFP / Multiphase Motor Driver Power MOSFET PWM, SPI 48-HTQFP (7x7) | 150455 |
|
$1.3333 / $1.7222 | Buy Now |
Part Details for DRV8305NPHP
DRV8305NPHP CAD Models
DRV8305NPHP Part Data Attributes
|
|
DRV8305NPHP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DRV8305NPHP
Texas Instruments
45-V max 3-phase smart gate driver with current shunt amplifiers & SPI 48-HTQFP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | HTQFP-48 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Texas Instruments | |
| Built-in Protections | TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE | |
| High Side Driver | YES | |
| Interface IC Type | HALF BRIDGE BASED MOSFET DRIVER | |
| JESD-30 Code | S-PQFP-G48 | |
| JESD-609 Code | e4 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 48 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Characteristics | PUSH-PULL | |
| Output Current Flow Direction | SOURCE AND SINK | |
| Output Peak Current Limit-Nom | 1 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTFQFP | |
| Package Equivalence Code | TQFP48,.35SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max | 45 V | |
| Supply Voltage-Min | 4.4 V | |
| Supply Voltage-Nom | 12 V | |
| Supply Voltage1-Max | 45 V | |
| Supply Voltage1-Min | 4.4 V | |
| Surface Mount | YES | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7 mm |
Alternate Parts for DRV8305NPHP
This table gives cross-reference parts and alternative options found for DRV8305NPHP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DRV8305NPHP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MIC4605-1YM-TR | Microchip Technology Inc | $0.9997 | HALF BRDG BASED MOSFET DRIVER | DRV8305NPHP vs MIC4605-1YM-TR |
| MIC4605-1YMT-TR | Microchip Technology Inc | $1.1110 | HALF BRDG BASED MOSFET DRIVER | DRV8305NPHP vs MIC4605-1YMT-TR |
| MIC4605-1YMT-T5 | Microchip Technology Inc | Check for Price | HALF BRDG BASED MOSFET DRIVER | DRV8305NPHP vs MIC4605-1YMT-T5 |
DRV8305NPHP Frequently Asked Questions (FAQ)
-
The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
-
To configure the DRV8305NPHP for 3-phase motor control, connect the 3-phase motor windings to the OUTA, OUTB, and OUTC pins. Then, use the SPI interface to configure the device for 3-phase operation and set the desired motor control parameters.
-
The nFAULT pin is an active-low fault indicator that signals when the device has detected an overcurrent, overtemperature, or undervoltage condition. It can be used to trigger a system shutdown or alarm in case of a fault.
-
The DRV8305NPHP has built-in overcurrent protection. To implement it, connect a sense resistor in series with the motor windings and connect the sense resistor to the IS pin. The device will automatically detect overcurrent conditions and shut down the outputs if the current exceeds the programmed threshold.
-
For optimal performance and thermal management, it's recommended to follow a 4-layer PCB stackup with a dedicated power plane, a dedicated ground plane, and a thermal pad connected to the exposed pad of the QFN package. Keep the high-current paths short and wide, and use thermal vias to dissipate heat.
