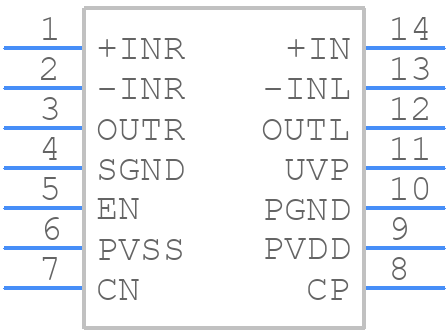

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DRV603PWR by Texas Instruments
Results Overview of DRV603PWR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
DRV603PWR Information
DRV603PWR by Texas Instruments is a Line Driver or Receiver.
Line Driver or Receivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for DRV603PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-24102-1-ND
|
DigiKey | IC AMP CLASS AB STEREO 14TSSOP Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3589 In Stock |
|
$0.2287 / $1.1400 | Buy Now |
|
DISTI #
595-DRV603PWR
|
Mouser Electronics | Audio Amplifiers 2Vrms DIRECTPATH Var Inp Gain Line Drvr A 595-DRV603PW RoHS: Compliant | 2731 |
|
$0.2280 / $1.0700 | Buy Now |
|
DISTI #
V72:2272_07254471
|
Arrow Electronics | Audio Amp Speaker 1-CH Mono Class-AB 14-Pin TSSOP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2204 Container: Cut Strips | Americas - 979 |
|
$0.5047 / $1.1641 | Buy Now |
|
|
Bristol Electronics | 222 |
|
RFQ | ||
|
|
Quest Components | 177 |
|
$1.0080 / $2.0160 | Buy Now |
Part Details for DRV603PWR
DRV603PWR CAD Models
DRV603PWR Part Data Attributes
|
|
DRV603PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DRV603PWR
Texas Instruments
3-Vrms DirectPath™; pop-free, variable input gain line driver with trimmed DC offset 14-TSSOP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Differential Output | YES | |
| Driver Number of Bits | 2 | |
| High Level Input Current-Max | 0.000001 A | |
| Interface IC Type | LINE DRIVER | |
| Interface Standard | GENERAL PURPOSE | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 2 | |
| Number of Functions | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Out Swing-Min | 6.15 V | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Current-Max | 1 mA | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Supply Voltage1-Max | 3.6 V | |
| Supply Voltage1-Min | 3 V | |
| Supply Voltage1-Nom | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
DRV603PWR Frequently Asked Questions (FAQ)
-
The maximum power dissipation of DRV603PWR is 2.5W. However, it's recommended to keep the junction temperature (TJ) below 150°C to ensure reliable operation.
-
The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor selection guide in the datasheet or use TI's WEBENCH Power Designer tool to find the optimal inductor value.
-
The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to implement power sequencing or to turn off the device when not in use.
-
To ensure output voltage stability, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value. Also, ensure that the output voltage is within the recommended range of 0.9V to 5.5V.
-
A good PCB layout for DRV603PWR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Refer to the datasheet or TI's application notes for more detailed layout guidelines.
