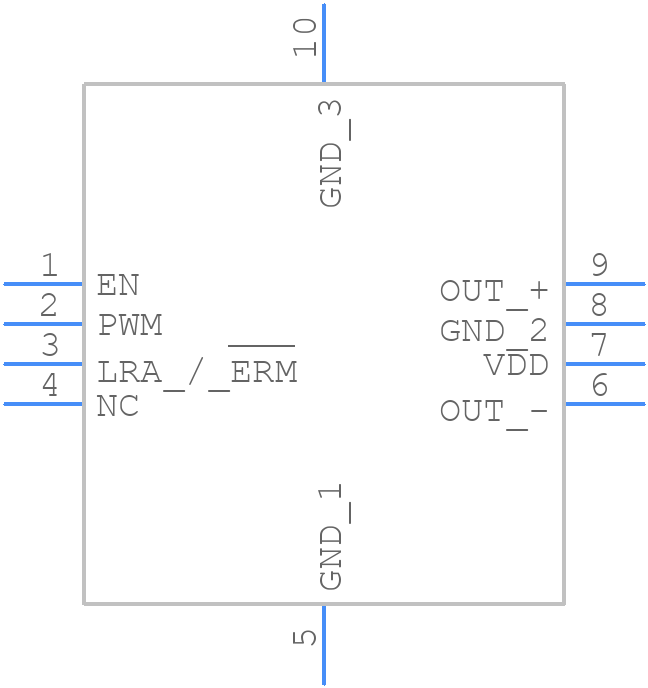

Part Symbol
-
Footprint
-

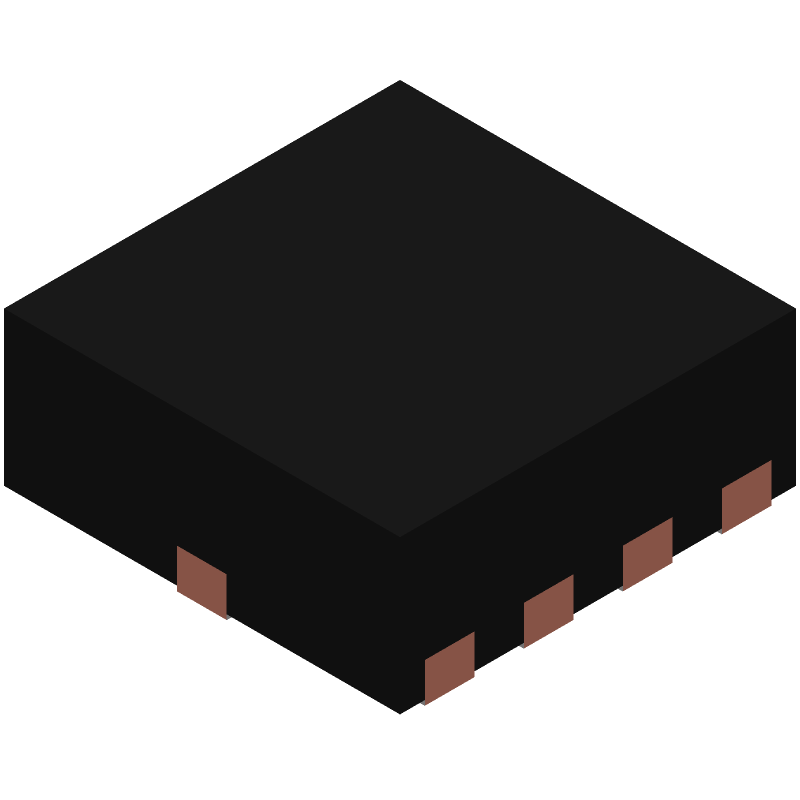

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DRV2603RUNT by Texas Instruments
Results Overview of DRV2603RUNT by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Entertainment and Gaming
DRV2603RUNT Information
DRV2603RUNT by Texas Instruments is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for DRV2603RUNT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-DRV2603RUNTCT-ND
|
DigiKey | IC MOTOR DRIVER 2.5V-5.2V 10QFN Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
124 In Stock |
|
$0.7735 / $1.6200 | Buy Now |
|
DISTI #
595-DRV2603RUNT
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers Haptic Driver w/Auto Resonance Tracking A 595-DRV2603RUNR RoHS: Compliant | 385 |
|
$0.7760 / $1.6200 | Buy Now |
|
|
Rochester Electronics | DRV2603 Haptic Driver with Auto Resonance Tracking for LRA and Optimized Drive for ERM RoHS: Compliant Status: Active Min Qty: 1 | 250 |
|
$0.6100 / $0.9839 | Buy Now |
Part Details for DRV2603RUNT
DRV2603RUNT CAD Models
DRV2603RUNT Part Data Attributes
|
|
DRV2603RUNT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DRV2603RUNT
Texas Instruments
Haptic driver for ERM/LRA with auto-resonance tracking in QFN package 10-QFN -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFN | |
| Package Description | QFN-10 | |
| Pin Count | 10 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | BRUSH DC MOTOR CONTROLLER | |
| JESD-30 Code | S-PQCC-N10 | |
| JESD-609 Code | e4 | |
| Length | 2 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 10 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 3.6 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Seated Height-Max | 0.8 mm | |
| Supply Voltage-Max (Vsup) | 5.2 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Supply Voltage-Nom (Vsup) | 3.6 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 2 mm |
Alternate Parts for DRV2603RUNT
This table gives cross-reference parts and alternative options found for DRV2603RUNT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DRV2603RUNT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DRV2603RUNR | Texas Instruments | $0.5452 | Haptic driver for ERM/LRA with auto-resonance tracking in QFN package 10-QFN -40 to 85 | DRV2603RUNT vs DRV2603RUNR |
DRV2603RUNT Frequently Asked Questions (FAQ)
-
The DRV2603RUNT requires careful layout and placement to ensure optimal performance. TI recommends placing the device near the motor, using a solid ground plane, and keeping the motor traces short and wide. Additionally, the device should be placed away from high-frequency noise sources.
-
Optimizing motor tuning involves adjusting the motor's resonant frequency to match the DRV2603RUNT's operating frequency. This can be done by adjusting the motor's mechanical design, using the device's built-in auto-resonance detection, or by using external tuning components.
-
The DRV2603RUNT has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and the motor's characteristics may change, affecting the overall system performance.
-
To ensure EMI compliance, use a shielded motor, keep the motor leads short, and use a common-mode choke or ferrite bead on the motor leads. Additionally, use a low-pass filter on the power supply lines and ensure the PCB layout is optimized for EMI reduction.
-
TI recommends using a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed close to the device's power pins, to decouple the power supply. This helps to reduce noise and ensure stable operation.
