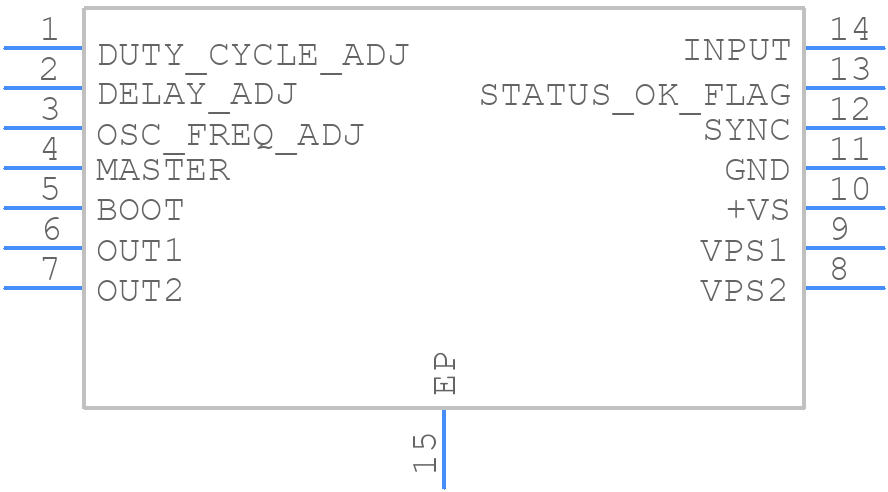

Part Symbol
-
Footprint
-

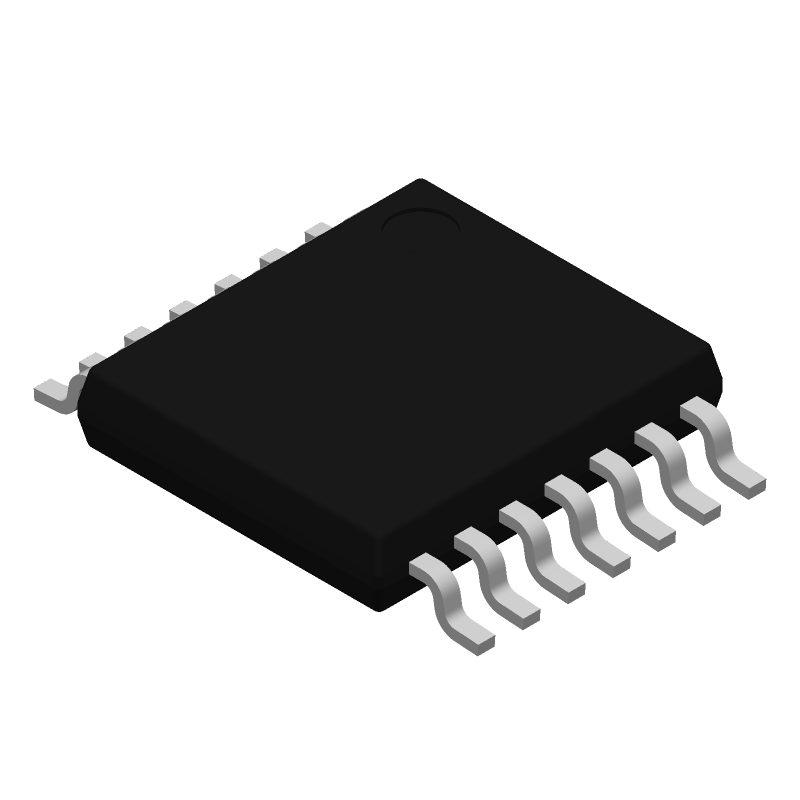

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DRV104PWPRG4 by Texas Instruments
Results Overview of DRV104PWPRG4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (2 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Automotive
Robotics and Drones
DRV104PWPRG4 Information
DRV104PWPRG4 by Texas Instruments is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for DRV104PWPRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Interface ICs | 322 |
|
RFQ | |
|
|
Win Source Electronics | IC HI-SIDE DRIVER PWM 14HTSSOP | 20300 |
|
$2.7902 / $4.1854 | Buy Now |
Part Details for DRV104PWPRG4
DRV104PWPRG4 CAD Models
DRV104PWPRG4 Part Data Attributes
|
|
DRV104PWPRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
DRV104PWPRG4
Texas Instruments
8-V to 32-V PWM high-side driver (1.2A) for solenoids, coils, valves, heaters, and lamps 14-HTSSOP -40 to 85
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | HTSSOP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Built-in Protections | OVER CURRENT; THERMAL | |
| Driver Number of Bits | 1 | |
| Input Characteristics | STANDARD | |
| Interface IC Type | PWM BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current Flow Direction | SOURCE | |
| Output Current-Max | 1.2 A | |
| Output Peak Current Limit-Nom | 2 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max | 32 V | |
| Supply Voltage-Min | 8 V | |
| Supply Voltage-Nom | 24 V | |
| Surface Mount | YES | |
| Technology | MOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for DRV104PWPRG4
This table gives cross-reference parts and alternative options found for DRV104PWPRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of DRV104PWPRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| DRV104PWP | Texas Instruments | $2.4478 | 32V, 1.2A high-side driver with PWM control and overcurrent protection 14-HTSSOP -40 to 85 | DRV104PWPRG4 vs DRV104PWP |
| DRV104PWPG4 | Texas Instruments | Check for Price | PWM High-Side Driver (1.5A) for Solenoids, Coils, Valves, Heaters, and Lamps 14-HTSSOP -40 to 85 | DRV104PWPRG4 vs DRV104PWPG4 |
DRV104PWPRG4 Frequently Asked Questions (FAQ)
-
Texas Instruments provides a recommended PCB layout in the DRV104PWPRG4 evaluation module's user guide, which includes guidelines for component placement, trace routing, and thermal vias to ensure optimal performance and thermal management.
-
The DRV104PWPRG4 has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output pins (VOUT) and the GND pin. The overcurrent threshold is set by the value of Rs. The device will shut down if the current exceeds the set threshold.
-
Yes, the DRV104PWPRG4 is rated for operation up to 125°C. However, the device's power rating and efficiency will degrade at higher temperatures. Ensure proper thermal management, such as heatsinking and airflow, to maintain optimal performance.
-
The UVLO feature is enabled by default. To configure it, connect a resistor divider network between the VIN pin and the GND pin to set the desired undervoltage threshold. Refer to the datasheet for the recommended resistor values and calculation.
-
The DRV104PWPRG4 requires a minimum input voltage of 7V to operate. However, the recommended input voltage range is 8V to 42V for optimal performance and efficiency.
