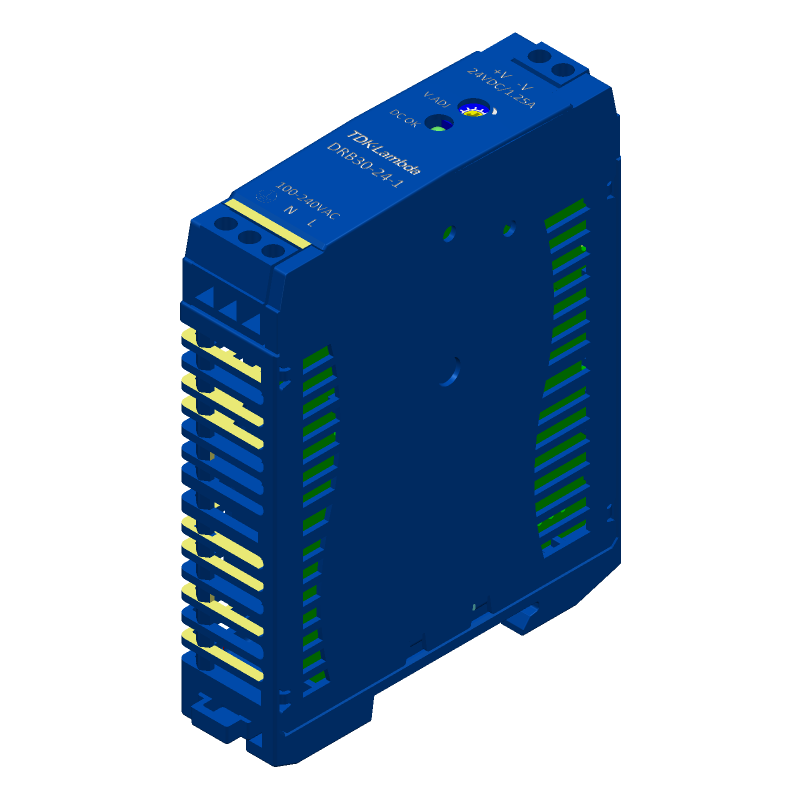

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DRB30-24-1 by TDK-Lambda Corporation
Results Overview of DRB30-24-1 by TDK-Lambda Corporation
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Energy and Power Systems
DRB30-24-1 Information
DRB30-24-1 by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for DRB30-24-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
18X3670
|
Newark | Ac-Dc Converter, Din Rail, 1 O/P, 30W, 1.25A, 24V, Power Supply Applications:Ite, No. Of Outputs:1 Output, Output Power Max:30W, Output Voltage - Output 1:24Vdc, Output Current - Output 1:1.25A, Output Voltage - Output 2:- Rohs Compliant: Yes |Tdk-Lambda DRB30-24-1 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 67 |
|
$42.5700 | Buy Now |
|
DISTI #
285-DRB30-24-1-ND
|
DigiKey | AC/DC DIN RAIL SUPPLY 24V 30W Min Qty: 1 Lead time: 40 Weeks Container: Bulk |
2301 In Stock |
|
$40.8500 | Buy Now |
|
DISTI #
967-DRB30-24-1
|
Mouser Electronics | DIN Rail Power Supplies 24Vout 1.25A 30W DIN Rail PS RoHS: Compliant | 113 |
|
$40.8500 | Buy Now |
|
|
Onlinecomponents.com | DIN Rail AC-DC Power Supply - 30W - 24 VDC - Input: 85 to 264VAC RoHS: Compliant |
30 In Stock 90 Factory Stock |
|
$39.4500 / $42.1100 | Buy Now |
|
DISTI #
87357544
|
Verical | AC/DC Power Supply Single-OUT 24V 1.25A 30W Min Qty: 2 Package Multiple: 1 | Americas - 20 |
|
$65.2820 | Buy Now |
|
DISTI #
DRB30-24-1
|
TME | Power supply: switching, for DIN rail, 30W, 24VDC, 1.25A, -20÷70°C Min Qty: 1 | 23 |
|
$47.6700 / $50.8600 | Buy Now |
|
DISTI #
000000000005398586
|
Sager | DIN Rail Power Supplies 24Vout 1.25A 30W DIN Rail PS Min Qty: 1 | 300 |
|
$36.6700 / $40.8500 | Buy Now |
|
|
Master Electronics | DIN Rail AC-DC Power Supply - 30W - 24 VDC - Input: 85 to 264VAC RoHS: Compliant |
30 In Stock 90 Factory Stock |
|
$39.4500 / $42.1100 | Buy Now |
Part Details for DRB30-24-1
DRB30-24-1 CAD Models
DRB30-24-1 Part Data Attributes
|
|
DRB30-24-1
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
DRB30-24-1
TDK-Lambda Corporation
AC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, ROHS COMPLIANT, PACKAGE-6
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Package Description | ROHS COMPLIANT, PACKAGE-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Additional Feature | DC INPUT VOLTAGE IS 120 TO 373V | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 85 V | |
| Input Voltage-Nom | 110 V | |
| JESD-30 Code | X-XXMA-X6 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 55 °C | |
| Operating Temperature-Min | -20 °C | |
| Output Voltage-Max | 28 V | |
| Output Voltage-Min | 24 V | |
| Output Voltage-Nom | 24 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | XMA | |
| Package Shape | UNSPECIFIED | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UNSPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 30 W | |
| Trim/Adjustable Output | YES |
DRB30-24-1 Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the DRB30-24-1 is -20°C to +71°C, with derating above 50°C.
-
Yes, the DRB30-24-1 is designed to withstand high-vibration environments, with a vibration test specification of 10-2000 Hz, 2G peak acceleration.
-
The recommended input fuse rating for the DRB30-24-1 is 2A slow-blow type, but this may vary depending on the specific application and system requirements.
-
No, the DRB30-24-1 is not designed to be paralleled to increase the output current. If higher output currents are required, consider using a higher-power DC-DC converter module.
-
The typical efficiency of the DRB30-24-1 is around 85-90% at full load, depending on the input voltage and operating conditions.
