DR73-470-R Information
DR73-470-R by Eaton Electronics is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for DR73-470-R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70037897
|
RS | Inductor, Power Shielded Drum Core Inductor, 47uH, 1.14A Min Qty: 1 Package Multiple: 1 Lead time: 3 Weeks, 0 Days Container: Bulk | 1340 |
|
$0.4900 | Buy Now |
|
DISTI #
DR73-470-R
|
TME | Inductor: wire, SMD, 47uH, Ioper: 1.08A, 241mΩ, ±20%, Isat: 1.14A Min Qty: 1 | 1596 |
|
$0.2780 / $0.6170 | Buy Now |
Part Details for DR73-470-R

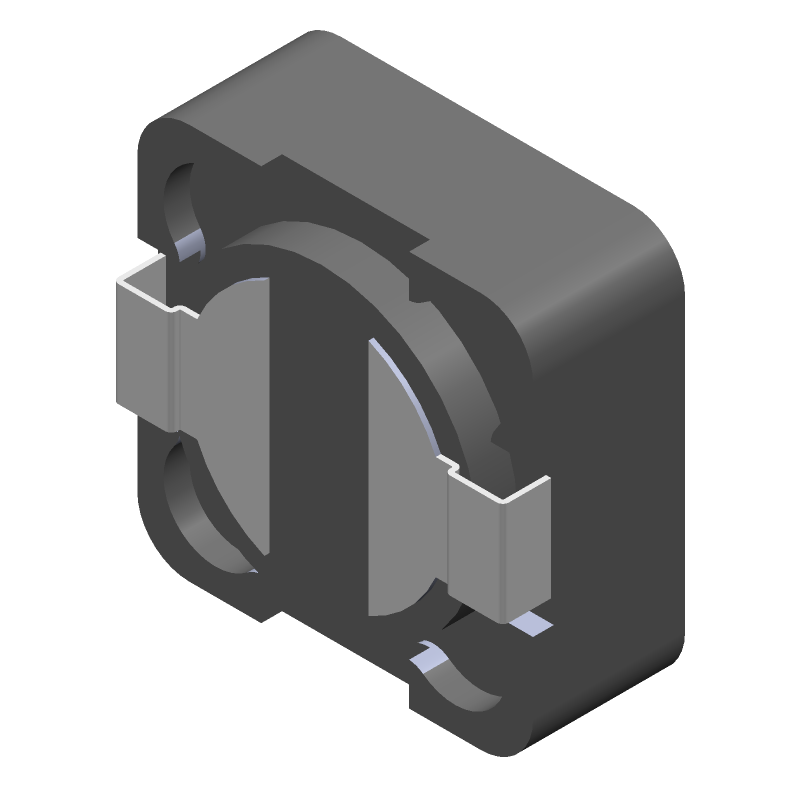

DR73-470-R CAD Models
DR73-470-R Part Data Attributes
|
|
DR73-470-R
Eaton Electronics
Buy Now
Datasheet
|
Compare Parts:
DR73-470-R
Eaton Electronics
Ind,Ferrite,47uH,20% +Tol,20% -Tol,3028 Case
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | COILTRONICS INC | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Eaton | |
| Case/Size Code | 3030 | |
| Construction | Rectangular | |
| Core Material | FERRITE | |
| DC Resistance | 0.241 Ω | |
| Inductance-Nom (L) | 47 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3.55 mm | |
| Package Length | 7.6 mm | |
| Package Style | SMT | |
| Package Width | 7.6 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Current-Max | 1.08 A | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
