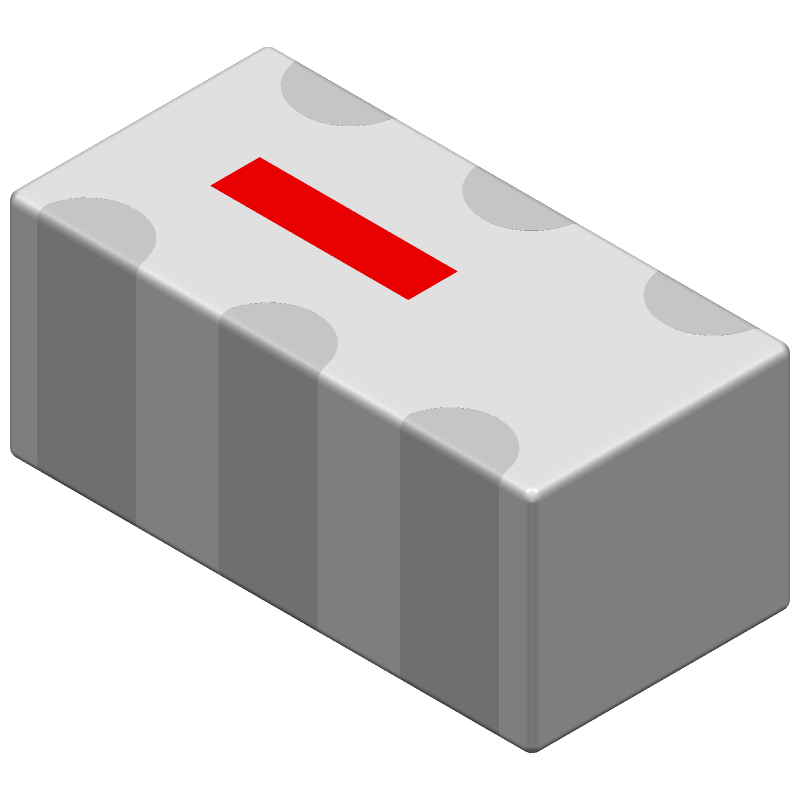

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DPX165950DT-8048A1 by TDK Corporation
Results Overview of DPX165950DT-8048A1 by TDK Corporation
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DPX165950DT-8048A1 Information
DPX165950DT-8048A1 by TDK Corporation is a Duplexer.
Duplexers are under the broader part category of Filters.
A filter is an electronic circuit that selectively allows certain frequencies to pass while attenuating others. They are used to extract desired signals and remove noise. Read more about Filters on our Filters part category page.
Price & Stock for DPX165950DT-8048A1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AJ5182
|
Newark | Multilayer Diplexer, 6 Pin, 0603 Rohs Compliant: Yes |Tdk DPX165950DT-8048A1 RoHS: Compliant Min Qty: 10 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 7213 |
|
$0.1880 / $0.2460 | Buy Now |
|
DISTI #
445-174758-1-ND
|
DigiKey | RF DIPLEXER 2.45/5.425GHZ 0603 Min Qty: 1 Lead time: 10 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6653 In Stock |
|
$0.1638 / $0.3100 | Buy Now |
|
DISTI #
DPX165950DT-8048A1
|
Avnet Americas | Diplexer, 2400-2500MHz / 4900-5950MHz, 6 Pin, 0603 [1608 Metric], DPX16 Series - Tape and Reel (Alt: DPX165950DT-8048A1) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks, 0 Days Container: Reel | 4000 |
|
$0.1018 / $0.1235 | Buy Now |
|
DISTI #
810-DPX16595DT8048A1
|
Mouser Electronics | Signal Conditioning LTCC DIPLEXER 2.4-2.5/4.9-5.95GHz RoHS: Compliant | 10365 |
|
$0.1490 / $0.3200 | Buy Now |
|
DISTI #
V36:1790_17651755
|
Arrow Electronics | RF Diplexer 2400MHz to 2500MHz/4900MHz to 5950MHz 6-Pin Case 0603(1608Metric) T/R RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 10 Weeks Date Code: 2514 | Americas - 4000 |
|
$0.1538 / $0.1814 | Buy Now |
|
DISTI #
V72:2272_17651755
|
Arrow Electronics | RF Diplexer 2400MHz to 2500MHz/4900MHz to 5950MHz 6-Pin Case 0603(1608Metric) T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2136 Container: Cut Strips | Americas - 213 |
|
$0.1832 / $0.1950 | Buy Now |
|
|
Quest Components | 5680 |
|
$0.1243 / $0.7100 | Buy Now | |
|
DISTI #
DPX165950DT-8048A1
|
TTI | Signal Conditioning LTCC DIPLEXER 2.4-2.5/4.9-5.95GHz RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel | Americas - 0 |
|
$0.1950 | Buy Now |
|
DISTI #
DPX165950DT-8048A1
|
Avnet Abacus | Diplexer 24002500MHz 49005950MHz 6 Pin 0603 1608 Metric DPX16 Series (Alt: DPX165950DT-8048A1) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Win Source Electronics | RF DIPLEXER 2.45/5.425GHZ 0603 | 428929 |
|
$0.0704 / $0.0908 | Buy Now |
Part Details for DPX165950DT-8048A1
DPX165950DT-8048A1 CAD Models
DPX165950DT-8048A1 Part Data Attributes
|
|
DPX165950DT-8048A1
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
DPX165950DT-8048A1
TDK Corporation
Duplexer,
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | EIA STD PACKAGE SIZE 0603, 6 PIN | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | TDK | |
| Additional Feature | OTHER BAND OF FREQ ALSO AVAILABLE | |
| Average Input Power | 3 W | |
| Center or Cutoff Frequency (fo/fc) | 5425 MHz | |
| Filter Type | DIPLEXER | |
| Height | 0.6 mm | |
| Input Impedance | 50 OHM | |
| Insertion Loss-Max | 0.65 dB | |
| Length | 1.6 mm | |
| Mounting Type | SURFACE MOUNT | |
| Number of Sections-Max | 1 | |
| Number of Sections-Min | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Impedance | 50 OHM Ω | |
| Width | 0.8 mm |
DPX165950DT-8048A1 Frequently Asked Questions (FAQ)
-
The recommended land pattern for the DPX165950DT-8048A1 can be found in the TDK Corporation's application note or by contacting their technical support team. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent thermal and electrical issues.
-
Proper thermal management is crucial for the DPX165950DT-8048A1. Ensure good airflow around the component, and consider using a heat sink or thermal interface material if necessary. The thermal resistance of the component is specified in the datasheet, and you can use this value to estimate the junction temperature.
-
The maximum operating temperature range for the DPX165950DT-8048A1 is specified in the datasheet as -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade if operated at the extreme ends of this range.
-
The DPX165950DT-8048A1 is designed to withstand certain levels of vibration, but it's essential to consult the datasheet and application notes for specific vibration tolerance information. If your application exceeds these specifications, you may need to consider additional mechanical support or vibration damping measures.
-
To ensure proper soldering of the DPX165950DT-8048A1, follow the recommended soldering profile and temperature guidelines specified in the datasheet or application notes. Use a solder with a melting point compatible with the component's temperature rating, and avoid overheating or applying excessive force during the soldering process.
