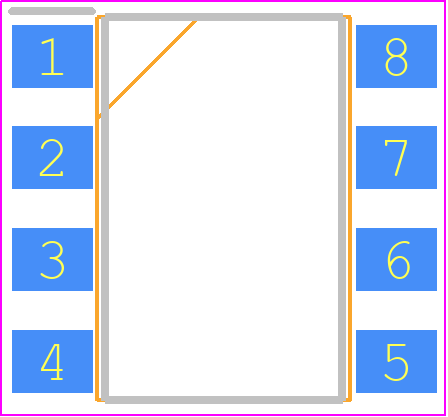

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DPA424GN-TL by Power Integrations
Results Overview of DPA424GN-TL by Power Integrations
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
DPA424GN-TL Information
DPA424GN-TL by Power Integrations is a Switching Regulator or Controller.
Switching Regulator or Controllers are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for DPA424GN-TL
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
09AH9123
|
Newark | Dc/Dc Conv, Flyback/Forward, 150Deg C, No. Of Outputs:1Outputs, Topology:Flyback, Forward, Input Voltage Min:16V, Input Voltage Max:75V, Max Output Current:-, Ic Case/Package:Smd, No. Of Pins:8Pins, Ic Mounting:Surface Mount Rohs Compliant: Yes |Power Integrations DPA424GN-TL RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 269 |
|
$1.9600 / $2.3700 | Buy Now |
|
DISTI #
596-1013-1-ND
|
DigiKey | IC REG CONV POE TELECM 1OUT 8SMD Min Qty: 1 Lead time: 8 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1120 In Stock |
|
$1.6600 / $2.3700 | Buy Now |
|
DISTI #
DPA424GN-TL
|
Avnet Americas | DC/DC Flyback, Forward Regulator, Adjustable, 16V to 75V In, 400kHz, SMD-8 - Tape and Reel (Alt: DPA424GN-TL) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days Container: Reel | 0 |
|
$1.3806 / $1.4750 | Buy Now |
|
DISTI #
869-DPA424GN-TL
|
Mouser Electronics | Isolated DC/DC Converters - SMD 24W 36-75V DCIN RoHS: Compliant | 15354 |
|
$1.4700 / $2.3700 | Buy Now |
|
|
Future Electronics | DPA-Switch Series 75 V 3 mA 35 W Highly Integrated DC-DC Converter - SMD-8 Min Qty: 1000 Package Multiple: 1000 |
1000 null |
|
$1.4800 / $1.5200 | Buy Now |
|
DISTI #
DPA424GN-TL
|
TME | IC: PMIC, AC/DC switcher,SMPS controller, 3.5A, SO8, 36÷75VDC Min Qty: 1 | 964 |
|
$2.0800 / $3.1300 | Buy Now |
|
DISTI #
DPA424GN-TL
|
Avnet Asia | DC/DC Flyback, Forward Regulator, Adjustable, 16V to 75V In, 400kHz, SMD-8 (Alt: DPA424GN-TL) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 8 Weeks, 0 Days | 0 |
|
RFQ | |
|
DISTI #
DPA424GN-TL
|
EBV Elektronik | DCDC Flyback Forward Regulator Adjustable 16V to 75V In 400kHz SMD8 (Alt: DPA424GN-TL) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
LCSC | 300kHz400kHz 220V 16V75V SMD-8P AC-DC Controllers and Regulators ROHS | 78 |
|
$1.3711 / $2.3484 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 1000 | 2000 |
|
$2.3400 / $2.5300 | Buy Now |
Part Details for DPA424GN-TL
DPA424GN-TL CAD Models
DPA424GN-TL Part Data Attributes
|
|
DPA424GN-TL
Power Integrations
Buy Now
Datasheet
|
Compare Parts:
DPA424GN-TL
Power Integrations
Switching Regulator, Voltage-mode, 3.5A, 425kHz Switching Freq-Max, CMOS, PDSO8, SMD-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | POWER INTEGRATIONS INC | |
| Part Package Code | DIP | |
| Pin Count | 8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Samacsys Manufacturer | Power Integrations | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Input Voltage-Max | 75 V | |
| Input Voltage-Min | 16 V | |
| Input Voltage-Nom | 35 V | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 9.575 mm | |
| Moisture Sensitivity Level | 4 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 3.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | GWDIP8,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 250 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 3.98 mm | |
| Surface Mount | YES | |
| Switcher Configuration | SINGLE | |
| Switching Frequency-Max | 425 kHz | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Pure Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Width | 6.35 mm |
DPA424GN-TL Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the DPA424GN-TL is -40°C to 150°C.
-
Proper cooling can be achieved by providing a heat sink with a thermal resistance of 10°C/W or less, and ensuring good airflow around the device.
-
A recommended PCB layout for the DPA424GN-TL includes a solid ground plane, short and wide traces for the high-current paths, and a heat sink attached to the device.
-
Overvoltage protection can be achieved using a voltage clamp or a zener diode, while overcurrent protection can be achieved using a current sense resistor and a comparator.
-
The recommended input capacitor value for the DPA424GN-TL is 10uF to 22uF, with a voltage rating of 50V or higher.
