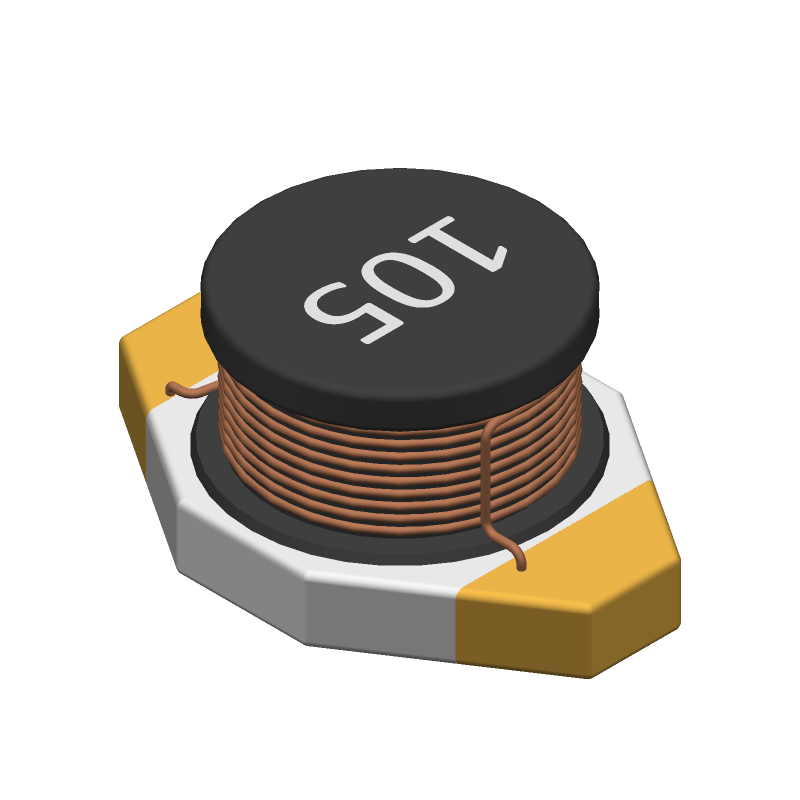

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for DO1608C-103MLC by Coilcraft Inc
Results Overview of DO1608C-103MLC by Coilcraft Inc
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
DO1608C-103MLC Information
DO1608C-103MLC by Coilcraft Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for DO1608C-103MLC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2457-DO1608C-103MLC-ND
|
DigiKey | FIXED IND 10UH 1.5A 160MOHM SM Min Qty: 1 Container: Strip MARKETPLACE PRODUCT |
59110 In Stock |
|
$1.4900 | Buy Now |
|
DISTI #
994-DO1608C-103MLC
|
Mouser Electronics | Power Inductors - SMD 10uH Shld 20% 1.5A 160mOhms RoHS: Compliant | 5622 |
|
$1.1600 / $1.8200 | Buy Now |
|
|
Bristol Electronics | Min Qty: 5 | 3700 |
|
$0.2925 / $1.1250 | Buy Now |
|
|
Bristol Electronics | 2815 |
|
RFQ | ||
|
|
Quest Components | 1 ELEMENT, 10 UH, GENERAL PURPOSE INDUCTOR, SMD | 2960 |
|
$0.3750 / $1.5000 | Buy Now |
|
|
Quest Components | 1 ELEMENT, 10 UH, GENERAL PURPOSE INDUCTOR, SMD | 736 |
|
$0.5850 / $1.4625 | Buy Now |
|
|
Quest Components | 1 ELEMENT, 10 UH, GENERAL PURPOSE INDUCTOR, SMD | 657 |
|
$1.5000 / $4.0000 | Buy Now |
|
|
Quest Components | 1 ELEMENT, 10 UH, GENERAL PURPOSE INDUCTOR, SMD | 320 |
|
$0.5850 / $1.4625 | Buy Now |
|
|
Quest Components | 1 ELEMENT, 10 UH, GENERAL PURPOSE INDUCTOR, SMD | 320 |
|
$0.5850 / $1.4625 | Buy Now |
|
|
Quest Components | 1 ELEMENT, 10 UH, GENERAL PURPOSE INDUCTOR, SMD | 195 |
|
$0.7313 / $1.4625 | Buy Now |
Part Details for DO1608C-103MLC
DO1608C-103MLC CAD Models
DO1608C-103MLC Part Data Attributes
|
|
DO1608C-103MLC
Coilcraft Inc
Buy Now
Datasheet
|
Compare Parts:
DO1608C-103MLC
Coilcraft Inc
General Purpose Inductor, 10uH, 20%, 1 Element, Ferrite-Core, SMD, 2618, CHIP, 2618, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | COILCRAFT INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | COILCRAFT | |
| Case/Size Code | 2618 | |
| Construction | Rectangular | |
| Core Material | FERRITE | |
| DC Resistance | 0.16 Ω | |
| Inductance-Nom (L) | 10 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e4 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 2.92 mm | |
| Package Length | 6.6 mm | |
| Package Style | SMT | |
| Package Width | 4.45 mm | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Rated Current-Max | 1.5 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 35 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | NO | |
| Surface Mount | YES | |
| Terminal Finish | GOLD OVER NICKEL | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | WRAPAROUND | |
| Test Frequency | 0.1 MHz | |
| Tolerance | 20% |
