DMTH4004LPS-13 Information
DMTH4004LPS-13 by Diodes Incorporated is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for DMTH4004LPS-13
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
31-DMTH4004LPS-13CT-ND
|
DigiKey | MOSFET N-CH 40V PWRDI5060 Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1892 In Stock |
|
$0.4894 / $1.3000 | Buy Now |
|
DISTI #
DMTH4004LPS-13
|
Avnet Americas | MOSFET BVDSS: 31V~40V POWERDI5060-8 T&R 2.5K - Tape and Reel (Alt: DMTH4004LPS-13) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days Container: Reel | 5000 Factory Stock |
|
$0.4694 / $0.4792 | Buy Now |
|
DISTI #
621-DMTH4004LPS-13
|
Mouser Electronics | MOSFETs MOSFET BVDSS: 31V-40V RoHS: Compliant | 2370 |
|
$0.4890 / $1.2700 | Buy Now |
|
DISTI #
DMTH4004LPS-13
|
Avnet Silica | MOSFET BVDSS 31V40V POWERDI50608 TR 25K (Alt: DMTH4004LPS-13) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days | Silica - 2500 |
|
Buy Now | |
|
|
LCSC | 40V 100A 138W 2.5m10V50A 3V 1 N-channel PowerDI5060-8 MOSFETs ROHS | 6 |
|
$2.0715 / $2.1801 | Buy Now |
|
|
New Advantage Corporation | RoHS: Compliant Min Qty: 1 Package Multiple: 2500 | 2500 |
|
RFQ |
Part Details for DMTH4004LPS-13

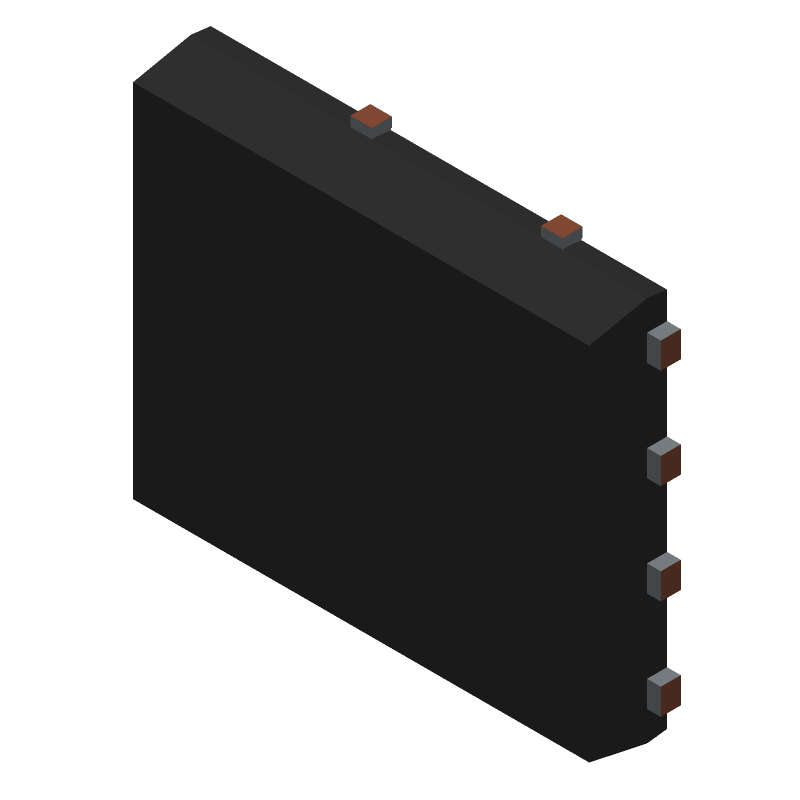

DMTH4004LPS-13 CAD Models
