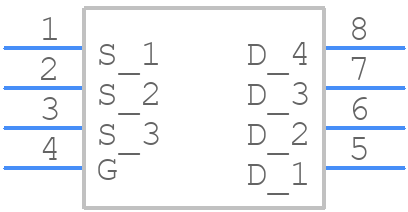

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Power Field-Effect Transistor,
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
DMT6017LSS-13 by Diodes Incorporated is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
28AK8892
|
Newark | Mosfet, N-Ch, 60V, 9.2A, Soic Rohs Compliant: Yes |Diodes Inc. DMT6017LSS-13 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 2265 |
|
$0.4050 / $0.7660 | Buy Now |
DISTI #
DMT6017LSS-13DICT-ND
|
DigiKey | MOSFET N-CH 60V 9.2A 8SO Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3595 In Stock |
|
$0.2100 / $0.9100 | Buy Now |
DISTI #
DMT6017LSS-13
|
Avnet Americas | MOSFET BVDSS: 41V~60V SO-8 T&R 2.5K - Tape and Reel (Alt: DMT6017LSS-13) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 12 Weeks, 0 Days Container: Reel | 37500 Factory Stock |
|
$0.2016 / $0.2159 | Buy Now |
DISTI #
621-DMT6017LSS-13
|
Mouser Electronics | MOSFETs MOSFET BVDSS: 41V-60V RoHS: Compliant | 3696 |
|
$0.2210 / $0.8900 | Buy Now |
DISTI #
E02:0323_10180920
|
Arrow Electronics | Trans MOSFET N-CH 60V 9.2A 8-Pin SO T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks Date Code: 2446 | Europe - 2500 |
|
$0.2400 | Buy Now |
DISTI #
DMT6017LSS-13
|
Avnet Silica | MOSFET BVDSS 41V60V SO8 TR 25K (Alt: DMT6017LSS-13) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 10 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
Vyrian | Transistors | 3558 |
|
RFQ |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
DMT6017LSS-13
Diodes Incorporated
Buy Now
Datasheet
|
Compare Parts:
DMT6017LSS-13
Diodes Incorporated
Power Field-Effect Transistor,
|
Pbfree Code | Yes | |
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | DIODES INC | |
Package Description | SOP-8 | |
Reach Compliance Code | compliant | |
ECCN Code | EAR99 | |
Factory Lead Time | 12 Weeks | |
Samacsys Manufacturer | Diodes Incorporated | |
Avalanche Energy Rating (Eas) | 11.7 mJ | |
Configuration | SINGLE WITH BUILT-IN DIODE | |
DS Breakdown Voltage-Min | 60 V | |
Drain Current-Max (ID) | 8 A | |
Drain-source On Resistance-Max | 0.018 Ω | |
FET Technology | METAL-OXIDE SEMICONDUCTOR | |
Feedback Cap-Max (Crss) | 27 pF | |
JESD-30 Code | R-PDSO-G8 | |
JESD-609 Code | e3 | |
Moisture Sensitivity Level | 1 | |
Number of Elements | 1 | |
Number of Terminals | 8 | |
Operating Mode | ENHANCEMENT MODE | |
Operating Temperature-Max | 150 °C | |
Operating Temperature-Min | -55 °C | |
Package Body Material | PLASTIC/EPOXY | |
Package Shape | RECTANGULAR | |
Package Style | SMALL OUTLINE | |
Peak Reflow Temperature (Cel) | 260 | |
Polarity/Channel Type | N-CHANNEL | |
Power Dissipation-Max (Abs) | 2.1 W | |
Pulsed Drain Current-Max (IDM) | 60 A | |
Reference Standard | MIL-STD-202 | |
Surface Mount | YES | |
Terminal Finish | Matte Tin (Sn) | |
Terminal Form | GULL WING | |
Terminal Position | DUAL | |
Transistor Application | SWITCHING | |
Transistor Element Material | SILICON |
Diodes Incorporated recommends a PCB layout with a solid ground plane, short traces, and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a separate ground plane is also recommended.
Proper thermal management can be achieved by providing a heat sink with a thermal resistance of less than 10°C/W, ensuring good airflow, and keeping the device away from heat sources. The device's thermal pad should be soldered to a copper plane on the PCB to facilitate heat dissipation.
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a resistor divider network to ensure the EN pin voltage remains within the specified range.
The DMT6017LSS-13 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage according to the temperature derating curve provided in the datasheet.
To troubleshoot issues with the DMT6017LSS-13, check the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout meets the recommended guidelines. Use an oscilloscope to check for voltage ripple, noise, or oscillations. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
